Product Details
| Part Number: | HON-KPRO0506-PND |
| Brand: | Hondata |
| CARB Approved: | No |
Hondata makes hardware modifications to the 2002-2004 RSX Type S, 02-04 RSX (Manual), or 02-06 CR-V ECU, enabling it to work with the different sensors and actuators found on the 2005-2006 ECU. After these modifications, the ECU will not function correctly for the donor vehicle, only the 2005-2006 RSX.
Hondata only sells an adapter harness with the modified ECU. An unmodified 02-04 ECU with adapter harness (with or without KPro) will not work on a 05-06 RSX without the internal ECU modifications performed by Hondata.
Hybrid Racing now offers the option for a PRB ECU to be provided, thus saving you from sending in your own PRB ECU for your 05-06 RSX. Saving you time and peace of mind. All PRB ECUs are sourced by Hybrid Racing and verified to be in working order.
The 05-06 K-Pro is only certified to work in an 05/06 RSX. Engine swaps using an 05-06 RSX engine and gearbox into another chassis are not supported with the 05/06 K-Pro and adapter harness.
A primary oxygen sensor from the 02-04 RSX or 02-05 Civic Si must be used. The 05-06 RSX O2 sensor will not work.
Some sensors must be disabled to eliminate errors generated by the ECU.
The speed sensor spins about 100 times faster on the 05/06 RSX gearbox as compared to the 02-04 RSX. Above 65-70 MPH cruise control may not function smoothly and may cancel from time to time.
What's Included

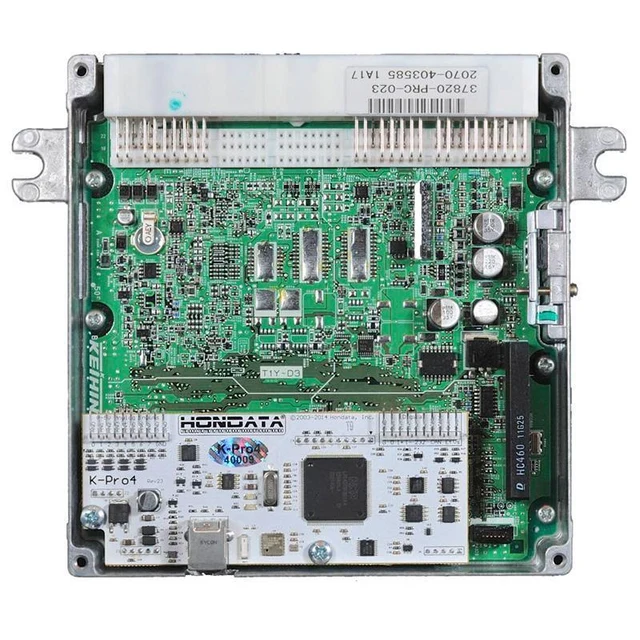

The modified ECU with a big Hondata sticker on it. K-Pro Manager software. Installation instructions. A six-foot USB cable 2 silver Hondata stickers. The modifications included installation of a 1.75 x 4.5-inch Hondata-branded daughterboard. This required soldering a couple of connectors onto the motherboard. I analyzed the daughterboard because I was curious as to what it does. The two main chips on it are: In addition, Hondata made a small cutout in the rear wall of the ECU housing to accommodate a standard USB connector.
As is usually the case with USB peripherals, the USB driver must be installed before the ECU is plugged in for the first time. After that, the ECU can be connected to the computer even if it is not in the car. The PC will then recognize it and install the proper driver. When it first came back, I simply connected the K-Pro ECU to my notebook and installed the USB driver. Then I put it back into its mounting bracket in the passenger footwell of the car and reconnected the various cables.
What is the K-Pro ECU?
The K-Pro ECU is a specially modified 2002 to 2004 Honda ECU with a USB interface to a notebook PC running Windows. It is currently available for the standard shift Acura RSX base model and Type-S, the US Civic Si and the Euro Civic Type R. K-Pro ECU Manager software allows the setting of cam angle, ignition advance, fuel, and a variety of other aspects. The purpose of the K-Pro ECU is to fine-tune the Honda ECU for best possible engine performance under various operating conditions and with various engine configurations. It also allows you to disable the immobilizer which is particularly important to those people performing engine swaps.
Features
- Fits inside the ECU
- Designed and assembled in USA
- USB connection for speed and compatibility
- KManager Windows-based software for parameter & table editing, calibration uploading, and data logging.
- Many built-in calibrations for common engine combinations
- Built-in data logging to a laptop
- Onboard data logging memory (8 MB memory, 10-215 minutes data logging)
- Adjustment for different sized injectors, with overall fuel trim.
- Configurable for any MAP sensor (to 5 Bar and above)
- TPS based table lookup for ITBs
- Engine protection from lean air-fuel ratios, over boost and low oil/fuel pressure.
- Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)
- Launch control with anti-lag
- Three multi-purpose outputs for nitrous control or similar.
- Supports lambda tracing from the stock wideband o2 or aftermarket wideband.
- PWM output for boost control
- Bluetooth support and Hondata Mobile app.
- Ethanol sensor input for flex-fuel capability.
- Alternate speed sensor input.
- Dash output serial & CAN streams.
- Live tuning and auto-tune.
KManager editing software features:
- High and low speed 16 x 20 ignition and fuel tables at multiple cam angles for correct VTEC and VTC tuning.
- Injector size fuel trim
- Fuel trim for starting, throttle tip in and individual cylinder trim
- Rev limiter with fuel cut
- Launch control with anti-lag
- Adjustable VTEC window with load and throttle control
- Adjustable idle speed
- MAP sensor type and calibration
- Adjustable boost cut with hot and cold settings
- Closed loop control
- Air temperature compensation
- Fuel and ignition correction based on gear
- Closed loop
- Three general purpose outputs for nitrous control, quad boost control or similar
- On board datalogging trigger conditions
List of Compatible ECUs for the 2005-2006 Acura RSX KPro
- 2002-2004 Acura RSX Type S (PRB A03-A08, PRB-305)
- 2002-2004 Acura RSX Base (PND-A01-A09)
- 2002-2004 Honda CRV (PPA-A0#, A5#)
- 2005-2006 Honda CRV (PPL-A0#, A5#)
All Hondata KPro sales are final once the product has been received. Due to the nature of tuning devices and licensing, Hybrid Racing does not accept returns on used or potentially used KPro units. Please confirm compatibility and useage before purchasing, and contact us with any questions prior to ordering.
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
Acura RSX
2005 Acura RSX Base
2006 Acura RSX Base
2006 Acura RSX Base
2005 Acura RSX Type-S
2006 Acura RSX Type-S
2006 Acura RSX Type-S
