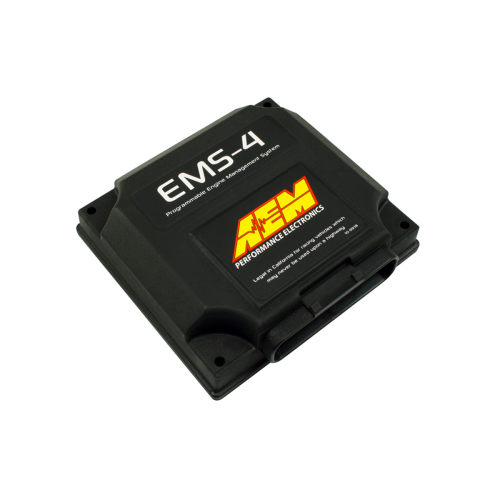

AEM EMS 4 Engine Management System

AEM EMS 4 Engine Management System-A1
AEM EMS 4 Engine Management System-A2
Images may be for reference only

AEM EMS 4 Engine Management System

Be the first to review!
Price: $844.38 ($236.43 off)
$607.95 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1216 reward points. Learn More

3 In Stock

Monday-Friday: 9am-4pm MST


AEM's EMS-4 Universal Standalone Programmable Engine Management System is the ideal standalone Engine Management System for modified Powersports and four-cylinder race car applications. The EMS-4 was created using AEM's powerful Series 2 hardware and includes all of its advanced features without the unneeded ancillary components.

If you have modified your four-cylinder Powersports application beyond the factory ECU's ability to control engine operation, or have a 4-cylinder race vehicle that does not require some of the advanced hardware features of an AEM Series 2 Plug & Play System, AEM's EMS-4 provides complete engine control for the maximum power and reliability.

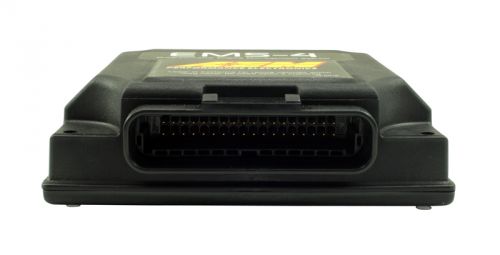

AEM's EMS-4 provides complete engine control for small engines with up to 4 cylinders. The unit includes a 36-pin connetor that is specifically designed to operate in harsh environments. It is completely sealed and weather/shock proof, allowing it to be mounted anywhere. The EMS-4 works with MAG or HALL crank inputs and can directly drive smart coils or an external ignitor such as AEM's 4-Channel Coil Driver

  • 4 Saturated Injector Outputs (8 ohm minimum, High Impedance Only)
  • 4 Coil Triggers 0-5V Falling Edge Fire (Do not connect to coil primary)

  • Timing Sensor Inputs:
  • 1 VR (Mag) Cam Input
  • 1 VR (Mag) Crank Input
  • 1 Hall VSS Input
  • 1 Hall Crank Input
  • 1 Hall Cam Input

  • Inputs/Outputs:
  • 4 GPIO - 1.5A Low Side Output / 0-5V Analog Input / Switch Input
  • 4 GPIO - 1.5A Low Side Output / 0-5V Analog Input / PWM Output
  • 1 O2 Sensor Input 0-5V Analog
  • 1 Knock Sensor Input Programmable
  • 1 Throttle Position Sensor Input 0-5V
  • 1 Manifold Pressure Sensor Input 0-5V
  • 1 Coolant Temperature Sensor Input 0-5V
  • 1 Inlet Air Temperature Sensor Input 0-5V
  • 1 Sensor Ground
  • 1 5 Volt Reference

  • Communication:
  • USB comms
  • Communication cables included
  • Fully enabled editing/logging software included
  • CAN bus equipped with Programmable Send / Receive
  • CAN data stream output

  • DATA Acquisition
  • 8MB Internal data logging
  • 125 Hz Maximum internal logging rate (per channel)
  • PC logging
  • Data analysis using AEMLog

  • Functions and Features:
  • User adjustable knock sensor center frequency
  • Individual cylinder ignition trims
  • Individual cylinder fuel trims
  • High/Low speed fuel pump support
  • All channels/maps/tuning options unlocked
  • Boost control
  • Groundspeed based boost target
  • Nitrous injection
  • Staged injection
  • Ground speed limiting
  • Rate of Acceleration Control
  • Overrun boost enhancement (anti-lag)
  • Gear change ignition cut (shift-without-lift)
  • Password protected calibrations
  • Fuel & Ignition rev limiters
  • "In cockpit" global fuel trim capability
  • Gear dependent shift light
  • Evap/Purge function
  • Software definable "virtual" switch inputs
  • EGT Based fuel trims (additional hardware needed)
  • No Maximum boost limit

  • Physical Dimensions:
  • Length: 120 mm
  • Width: 114 mm
  • Height: 35 mm
  • Finish: Black

  • Not legal for sale or use in California on any pollution controlled motor vehicles. See for state by state emissions requirements.

    WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects.


    Brand: AEM Electronics
    Part Number: 30-6905
    UPC: 840879021665
    CARB Approved: No
