AEM E85 High Flow In-Tank Fuel Pump
Part Number: 50-1200

★★★★★ ★★★★★ 4 Reviews

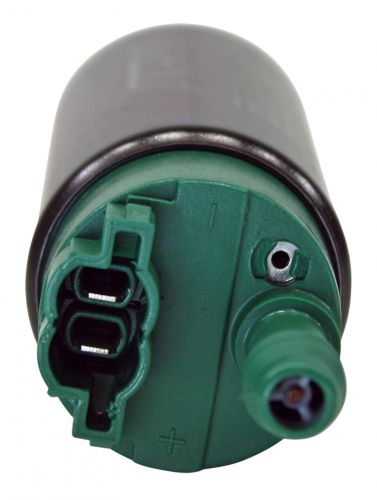

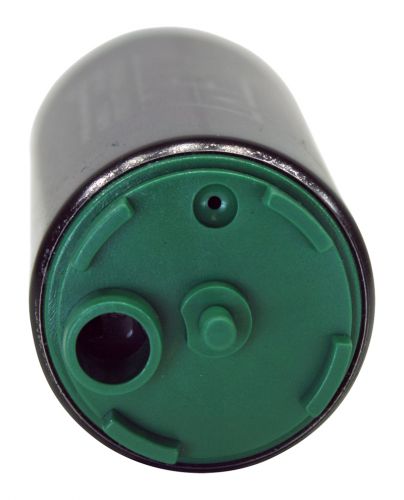

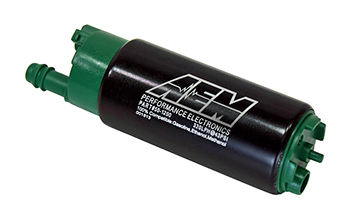

AEM E85 High Flow In-Tank Fuel Pump-A1
AEM E85 High Flow In-Tank Fuel Pump-A2
AEM E85 High Flow In-Tank Fuel Pump-A3
AEM E85 High Flow In-Tank Fuel Pump-A4
AEM E85 High Flow In-Tank Fuel Pump-A5
Images may be for reference only

AEM E85 High Flow In-Tank Fuel Pump
Part Number: 50-1200

★★★★★ ★★★★★ 4 Reviews
Was: $149.00
$133.95
Save: $15.05 (10%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 268 reward points. Learn More


10+ In Stock

Product Details

Part Number: 50-1200
UPC: 840879022556
Brand: AEM Electronics

The AEM E85 Fuel Pump is designed for in-tank installation on high performance naturally aspirated and forced induction vehicles. It flows 320 lph (84 gph) at 43 PSI (please refer to the chart for fuel pump horsepower versus pressure for various applications and fuel types).

AEM's E85 Fuel Pump features robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and has been tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline.

The AEM E85 Fuel Pump features a compact 39mm diameter that fits most applications. It features an offset inlet design that eases installation and includes a wiring harness, pre filter, internal fuel hose and clamps, end cap and rubber buffer sleeve. Every AEM E85 Fuel Pump is tested to flow 320 lph at 43 PSI before it is packaged for sale.

Features:
  • Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
  • Designed for high output naturally aspirated and forced induction EFI vehicles
  • In tank design
  • Each pump is tested to flow 320 lph @ 43 PSI

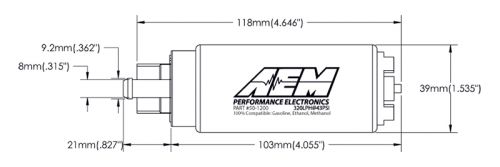

  • 39mm diameter fits most applications
  • Offset inlet design eases installation

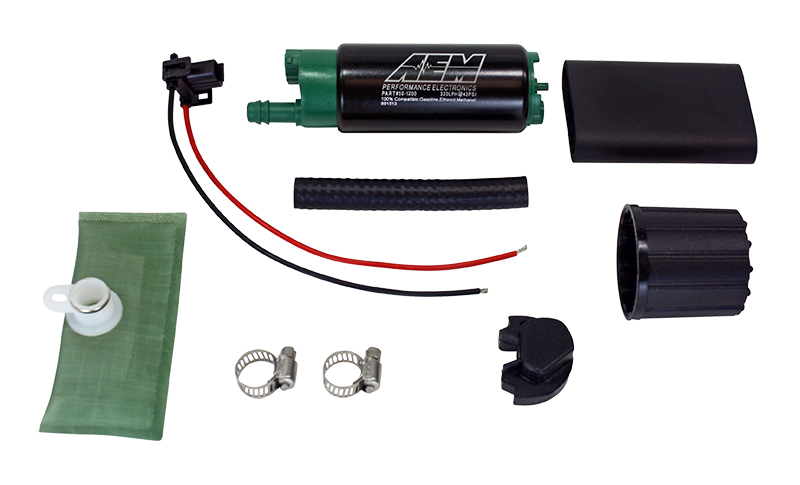

  • Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead

  • Technical Specs:
  • Weight: 10.1oz (285grams)
  • Outside Diameter: 39mm OD
  • External Materials: Black plated steel with laser etching, green end caps
  • Inlet Fitting: 7.7mm ID, 11.0mm OD
  • Outlet Fitting: 8 mm hose clamp
  • PRV Activation: 80 PSI
  • Impeller Design: Single Scroll Ceramic Turbine

  • Voltage Specs:
  • Connector Terminal: 6 mm Spade (pos/neg)
  • Min Voltage Input: 6 volts
  • Max Voltage Input: 18 volts
  • Current Draw (40 psi): 12 amps (13.5v)
  • Current Draw (80 psi): 15 amps (13.5v)

  • Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

    WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

    Vehicle Fitment

    This part does not have vehicle specific fitment


    4 Reviews ★★★★★ ★★★★★

    ★★★★★ ★★★★★
    4.25/5.00 Stars out of 4 Reviews
    Write a Review
    1
    0
    2
    0
    3
    1
    4
    1
    5
    2
    Verified Buyer
    AEM 320 E85 Fuel Pump
    Jair G. | June 24th, 2023
    Pump build and quality is solid. You can tell it’s a strong pump when it primes. Package was missing the clamps and fuel line- bad on AEM’s side. Shipping was quick and flawless as one would expect.
    AEM is getting little lazy
    Vang thao | January 11th, 2022
    Nice pump but it was missing a few stuff like the hose and isolator sleeve and the end isolator cover and the sticker. This was a brand new pump and never open too, I expected better from AEM.
    My go to site for car parts
    Brian espitia | September 15th, 2021
    Best site to buy legit parts! Super fast shipping, good pieces, and great customer support. What more could you ask for.
    Sweeet!
    J | April 25th, 2021
    Thank you guys for the hard work and dedication, my part arrived within a week or less of me ordering and honestly couldn
