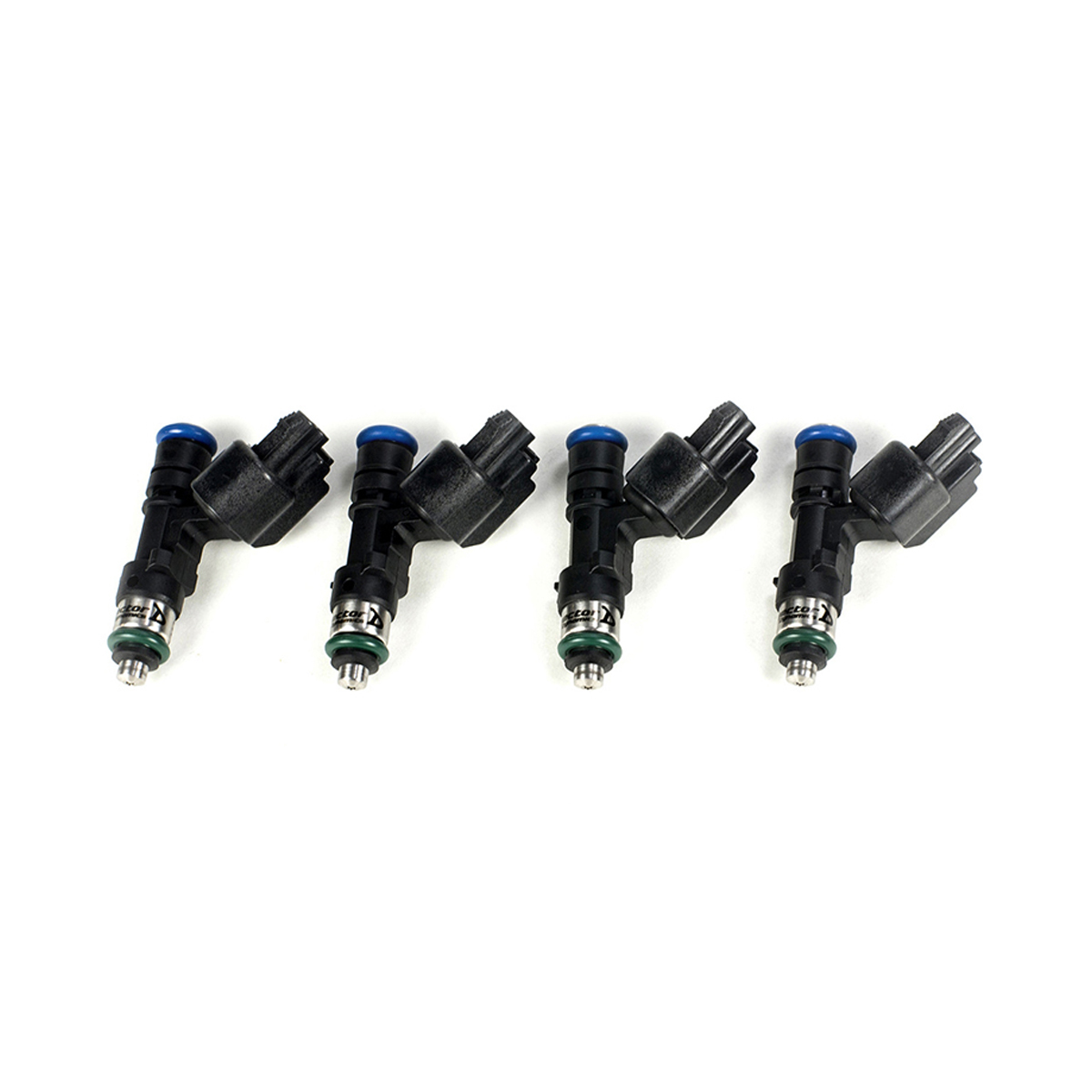

Injector Dynamics K Series 1050cc Fuel Injectors
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x.
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
- High Impediance Injector, no resistor box required
- These injectors flow 1535cc/min at 100psi of fuel pressure
- They are a 48mm long body, shorter than normal injectors. The adaptor tops make them "normal" 60mm length and adapt them to 11mm (B series) or 14mm (K series) orings. The K series guys can run the injectors with no adaptors at all and they are the same length as the OEM rsx injectors so no spacers needed on the rail.
