AEM 150 PSIg Brass Sensor Kit
Part Number: 30-2131-150

Images may be for reference only

Part Number:	30-2131-150
Brand:	AEM Electronics

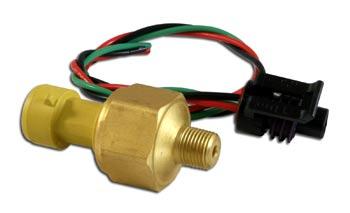

150 PSIg MAP Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 150 PSIg Brass Sensor, Connector & Pins.

Sensor Performance Specifications:

Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity

Operating Temp: -20C to 105C / -4F to 221F

Burst Pressure: 300PSI

Response Time: < 1mS

Wetted Materials: 304L & 316L Stainless Steel

Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes

Weight: <85g

Supply Current: <6mA at 5 Vdc

Output: .5 to 4.5Vdc Linear

Transfer Function: PSI = (37.5*(Voltage))-18.75

Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
