AEM 1/8" PTF Water/Coolant/Oil Temperature Sensor Kit
Part Number: 30-2012

Images may be for reference only

Product Details

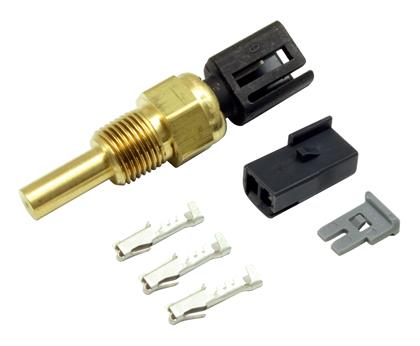

Water / Coolant / Oil Temp Sensor Kit. 1/8"-27 PTF. Includes: Water / Coolant / Oil Temp Sensor, plug, pins & pin lock.

Sensor Performance Specifications:

Accuracy: < 2°C / 3.6°F

Operating Temp: -40C to 200C / -40F to 392F

Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.

Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.

Sensor Body Material: Brass

Thread: 1/8"-27 PTF

Hex Size: 1/2"

Installation Torque: 13.5Nm / 10 ft-lbs

Weight: 12.2g

Supply Current: 5Vdc

Elec. Termination: Connector. Includes mating Connector, Pins & Pin Lock
