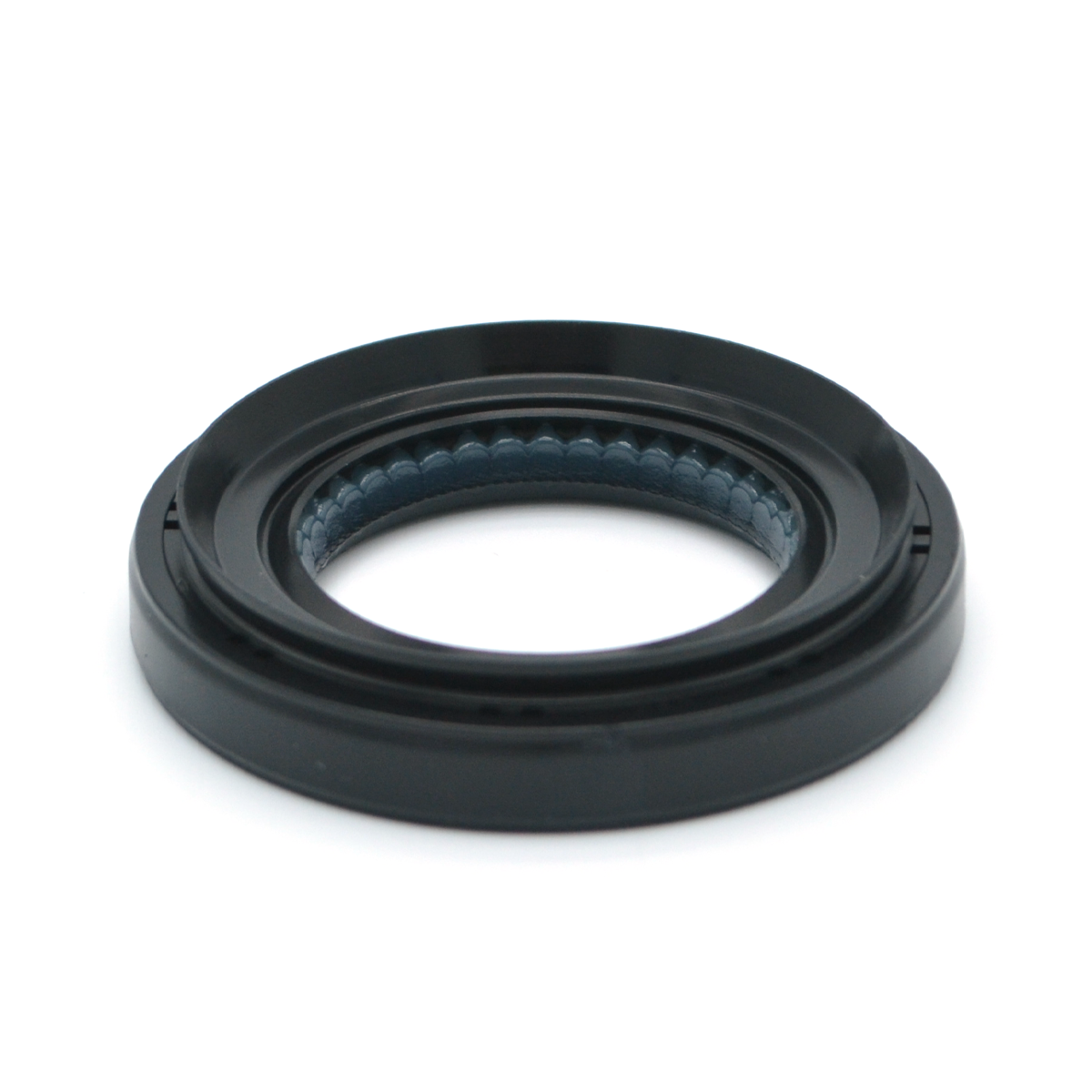

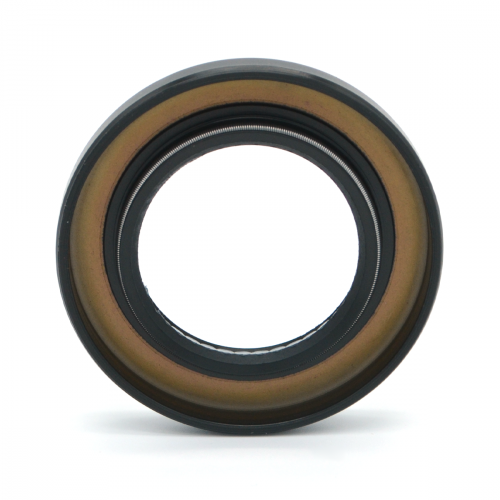

Honda 02-06 RSX/01-13 Civic Passenger Side Axle Seal 35x58x8mm
Part Number: 91206-PHR-003

Images may be for reference only

Product Details

The Honda OEM Passenger Side Transmission Axle Oil Seal is a genuine factory replacement designed to prevent transmission fluid leaks where the passenger-side axle enters the transmission housing. Manufactured to Honda's original equipment specifications, this precision-engineered oil seal measures 35mm x 58mm x 8mm and provides reliable sealing performance in compatible Honda and Acura transmission assemblies.

Also known as a passenger-side CV axle seal, transmission output shaft seal, or differential oil seal, this genuine Honda component helps retain transmission fluid while allowing the axle shaft to rotate smoothly.

Commonly used in vehicles such as the 2002–2006 Acura RSX, 2002–2006 Honda CR-V, 2003–2005 Honda Accord, and select Honda Civic, Element, Fit, and Insight applications, this OEM axle seal is an excellent replacement for worn, hardened, or leaking factory seals.

Over time, transmission axle seals can deteriorate from heat, age, high mileage, or damage during axle removal. A worn seal may allow transmission fluid to leak around the axle shaft, resulting in fluid accumulation beneath the vehicle and potentially insufficient lubrication inside the transmission.

Whether you're replacing a CV axle, installing a new clutch, rebuilding a K-Series transmission, or repairing a drivetrain fluid leak, this genuine Honda OEM Passenger Side Axle Seal provides factory-correct dimensions and dependable sealing performance.

Features

Genuine Honda OEM Part: Authentic factory replacement manufactured to Honda's original equipment specifications.
Passenger Side Axle Seal: Designed for the right-side transmission axle output in compatible applications.
35mm Inner Diameter: Factory-specified sealing diameter.
58mm Outer Diameter: Designed to fit the corresponding transmission housing opening.
8mm Width: Maintains the original factory seal dimensions.
NOK Oil Seal: Honda's OEM parts catalog identifies this component as a NOK-manufactured oil seal.
Direct OEM Replacement: Replaces the original seal where Honda specifies part number 91206-PHR-003.
Factory-Correct Fit: Maintains the intended axle shaft sealing configuration.
Helps Prevent Transmission Leaks: Retains transmission fluid around the rotating axle shaft.
Oil-Resistant Sealing Construction: Designed for use in automotive transmission assemblies.
Ideal for CV Axle Replacement: Recommended for inspection whenever the passenger-side axle is removed.
Transmission Rebuild Friendly: Suitable for compatible manual and automatic transmission service.
K-Series Drivetrain Applications: Commonly used in compatible Honda and Acura K-Series transmissions.
Sold Individually: Includes one genuine Honda axle oil seal.
OEM Part Number: 91206-PHR-003.

Additional Information

Manufacturer: Honda / Acura
Part Number: 91206-PHR-003
OEM Description: Oil Seal (35x58x8) (NOK)
Other Names: Passenger Side Axle Seal / Right Side Axle Seal / CV Axle Oil Seal / Transmission Output Shaft Seal / Differential Oil Seal
Product Type: Transmission Oil Seal

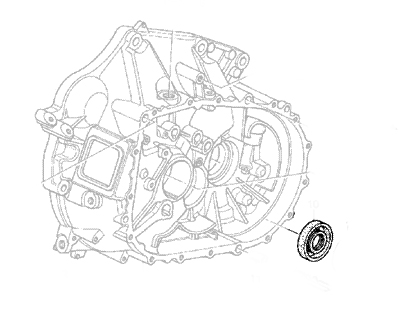

Installation Location: Passenger Side Transmission Axle Output – Application Dependent
Inner Diameter: 35mm
Outer Diameter: 58mm
Width: 8mm
OEM Manufacturer Designation: NOK
Quantity: Sold Individually (1 Seal)

Common Reasons for Replacement

Transmission axle seals should be inspected whenever a CV axle is removed or the transmission is serviced.

Transmission fluid leaking around the passenger-side axle
Oil accumulation near the transmission housing
Hardened or deteriorated sealing material
Cracked, torn, or damaged sealing lip
Damage during CV axle removal
High-mileage drivetrain maintenance
Passenger-side CV axle replacement
Clutch replacement or transmission removal
Manual transmission rebuilding
Differential or transmission service
K-Series engine and transmission swaps
Repairing transmission fluid leaks
Replacing a worn axle seal helps maintain proper transmission fluid levels and may prevent damage to internal transmission components caused by insufficient lubrication.

Installation Notes

Proper installation is essential for preventing transmission fluid leaks and ensuring dependable sealing performance.
Safely raise and support the vehicle according to the Honda factory service manual.
Remove the passenger-side CV axle or related shaft components as required.
Inspect the axle shaft sealing surface for scratches, grooves, corrosion, or excessive wear.
Carefully remove the original transmission oil seal without damaging the transmission housing.
Clean the seal bore and remove any accumulated debris or damaged sealing material.
Apply the appropriate lubricant to the new seal lip according to the factory service procedure.
Using a suitable seal driver, carefully install the new Honda OEM seal squarely into the transmission housing.
Install the seal to the factory-specified depth and orientation.
Reinstall the axle shaft carefully to avoid damaging the new sealing lip.
Verify the transmission fluid level and inspect the repaired area for leaks.
Important: Avoid striking the seal directly with metal tools or applying uneven pressure during installation. Improper installation can damage the sealing lip, distort the seal, or cause transmission fluid leakage.
When replacing a CV axle or rebuilding a transmission, inspect the opposite-side axle seal and related drivetrain components for wear.

Note:

Includes one genuine Honda OEM Passenger Side Transmission Axle Oil Seal (35x58x8mm). CV axles, transmission fluid, axle retaining hardware, and additional seals are sold separately unless otherwise specified.

For Honda and Acura enthusiasts repairing axle leaks, rebuilding a K-Series transmission, replacing a clutch, or restoring a factory drivetrain, this genuine Honda OEM Passenger Side Axle Oil Seal delivers factory-correct dimensions and dependable sealing performance.

Part Number:	91206-PHR-003
Brand:	Honda
Position:	Right (Passenger)

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim
2000	Honda	Insight	Base
2001	Honda	Civic	DX
2001	Honda	Civic	EX
2001	Honda	Civic	HX
2001	Honda	Civic	LX
2001	Honda	Insight	Base
2002	Acura	RSX	Base
2002	Acura	RSX	Type-S
2002	Honda	CR-V	EX
2002	Honda	CR-V	LX
2002	Honda	Civic	DX
2002	Honda	Civic	EX
2002	Honda	Civic	HX
2002	Honda	Civic	LX
2002	Honda	Civic	Si
2002	Honda	Insight	Base
2003	Acura	RSX	Base
2003	Acura	RSX	Type-S
2003	Honda	Accord	DX
2003	Honda	Accord	EX
2003	Honda	Accord	LX
2003	Honda	CR-V	EX
2003	Honda	CR-V	LX
2003	Honda	Civic	DX
2003	Honda	Civic	EX
2003	Honda	Civic	HX
2003	Honda	Civic	Hybrid
2003	Honda	Civic	LX
2003	Honda	Civic	Si
2003	Honda	Element	DX
2003	Honda	Element	EX
2003	Honda	Insight	Base
2004	Acura	RSX	Base
2004	Acura	RSX	Type-S
2004	Acura	TSX	Base
2004	Honda	Accord	DX
2004	Honda	Accord	EX
2004	Honda	CR-V	EX
2004	Honda	CR-V	LX
2004	Honda	Civic	DX
2004	Honda	Civic	EX
2004	Honda	Civic	HX
2004	Honda	Civic	Hybrid
2004	Honda	Civic	LX
2004	Honda	Civic	Si
2004	Honda	Civic	Value Package
2004	Honda	Element	DX
2004	Honda	Element	EX
2004	Honda	Element	LX
2004	Honda	Insight	Base
2005	Acura	RSX	Base
2005	Acura	RSX	Type-S
2005	Acura	TSX	Base
2005	Honda	Accord	DX
2005	Honda	Accord	EX
2005	Honda	Accord	LX
2005	Honda	Accord	SE
2005	Honda	CR-V	EX
2005	Honda	CR-V	LX
2005	Honda	CR-V	SE
2005	Honda	Civic	DX
2005	Honda	Civic	EX
2005	Honda	Civic	EX Special Edition
2005	Honda	Civic	HX
2005	Honda	Civic	Hybrid
2005	Honda	Civic	LX
2005	Honda	Civic	LX Special Edition
2005	Honda	Civic	Si
2005	Honda	Civic	Value Package
2005	Honda	Element	EX
2005	Honda	Element	LX
2006	Acura	RSX	Base
2006	Acura	RSX	Type-S
2006	Honda	CR-V	EX
2006	Honda	CR-V	LX
2006	Honda	CR-V	SE
2006	Honda	Civic	DX
2006	Honda	Civic	EX
2006	Honda	Civic	GX
2006	Honda	Civic	Hybrid
2006	Honda	Civic	LX
2006	Honda	Element	EX
2006	Honda	Element	LX
2007	Honda	Civic	DX
2007	Honda	Civic	EX
2007	Honda	Civic	GX
2007	Honda	Civic	Hybrid
2007	Honda	Civic	LX
2007	Honda	Fit	Base
2007	Honda	Fit	Sport
2008	Honda	Civic	DX
2008	Honda	Civic	EX
2008	Honda	Civic	GX
2008	Honda	Civic	Hybrid
2008	Honda	Civic	LX
2008	Honda	Civic	MUGEN Si
2008	Honda	Fit	Base
2008	Honda	Fit	Sport
2009	Honda	Civic	DX
2009	Honda	Civic	EX
2009	Honda	Civic	EX-L
2009	Honda	Civic	GX
2009	Honda	Civic	Hybrid
2009	Honda	Civic	Hybrid-L
2009	Honda	Civic	LX
2009	Honda	Civic	LX-S
2009	Honda	Fit	Base
2009	Honda	Fit	Sport
2010	Honda	Civic	DX
2010	Honda	Civic	EX
2010	Honda	Civic	EX-L
2010	Honda	Civic	GX
2010	Honda	Civic	Hybrid
2010	Honda	Civic	Hybrid-L
2010	Honda	Civic	LX
2010	Honda	Civic	LX-S
2010	Honda	Fit	Base
2010	Honda	Fit	Sport
2010	Honda	Insight	EX
2010	Honda	Insight	LX
2011	Honda	Civic	DX
2011	Honda	Civic	EX
2011	Honda	Civic	EX-L
2011	Honda	Civic	GX
2011	Honda	Civic	LX
2011	Honda	Civic	LX-S
2011	Honda	Fit	Base
2011	Honda	Fit	Sport
2012	Honda	Civic	DX
2012	Honda	Civic	EX
2012	Honda	Civic	EX-L
2012	Honda	Civic	GX
2012	Honda	Civic	HF
2012	Honda	Civic	LX
2012	Honda	Fit	Base
2012	Honda	Fit	Sport
2013	Honda	Civic	EX
2013	Honda	Civic	EX-L
2013	Honda	Civic	HF
2013	Honda	Civic	LX
2013	Honda	Civic	Natural Gas
2013	Honda	Fit	Base
2013	Honda	Fit	Sport
2015	Honda	Fit	EX
2015	Honda	Fit	LX
2016	Honda	Fit	EX
2016	Honda	Fit	LX
2017	Honda	Fit	EX
2017	Honda	Fit	LX
2018	Honda	Fit	EX
2018	Honda	Fit	LX
2018	Honda	Fit	Sport
2019	Honda	Fit	EX
2019	Honda	Fit	LX
2019	Honda	Fit	Sport
2020	Honda	Fit	LX
2020	Honda	Fit	Sport
