Product Details
| Part Number: | MMOP-TPS |
| Brand: | Mishimoto |

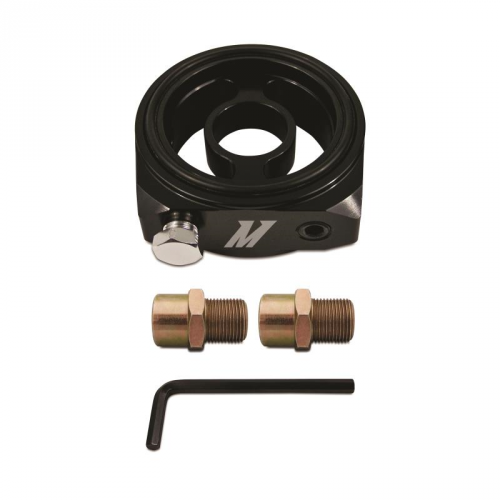

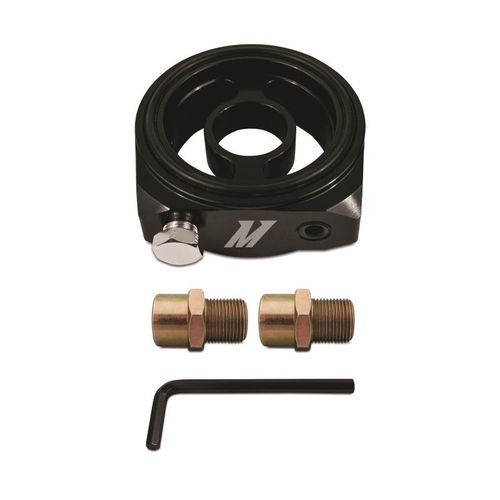

The Mishimoto Oil Filter Sandwich Plate Adapters are made with 3 NPT ports to allow you to install an oil temperature sensor, oil pressure sensor, and/or a turbo oil feed. This easy-to-install plate eliminates the need to drill into your block by using the mounting point on your engine oil filter. Two adapters are included with purchase for fitment with multiple applications.
- 6061 aluminum, CNC-machined
- Three 1/8" NPT ports (with plug) for sensors/oil feed/etc.
- M20 x 1.5" & 3/4" UNF
- 16 Sandwich Plate Adapters
- Mishimoto Lifetime Warranty
Material 6061 Aluminum
Install Torque Specs Sandwich Plate Adapter: 35 ft/lbs
Caution It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact [email protected]
Overall Height 2.8"
Overall Length 3"
Overall Width 0.8"
Purchase Includes
(1) Oil Plate Sandwich Adapter with (3) 1/8" NPT Ports
(1) Large O-ring
(2) Sandwich Plate Adapters (1 x M20 x 1.5" & 1x 3/4" UNF 16)
(2) Black Flush Fittings w/ Allen Key Bolt
(1) Allen Key
(1) Hex Head Fitting
Installation Guide
Mishimoto Lifetime Warranty
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
