Product Details
| Part Number: | 334 |
| Brand: | KC HiLiTES |

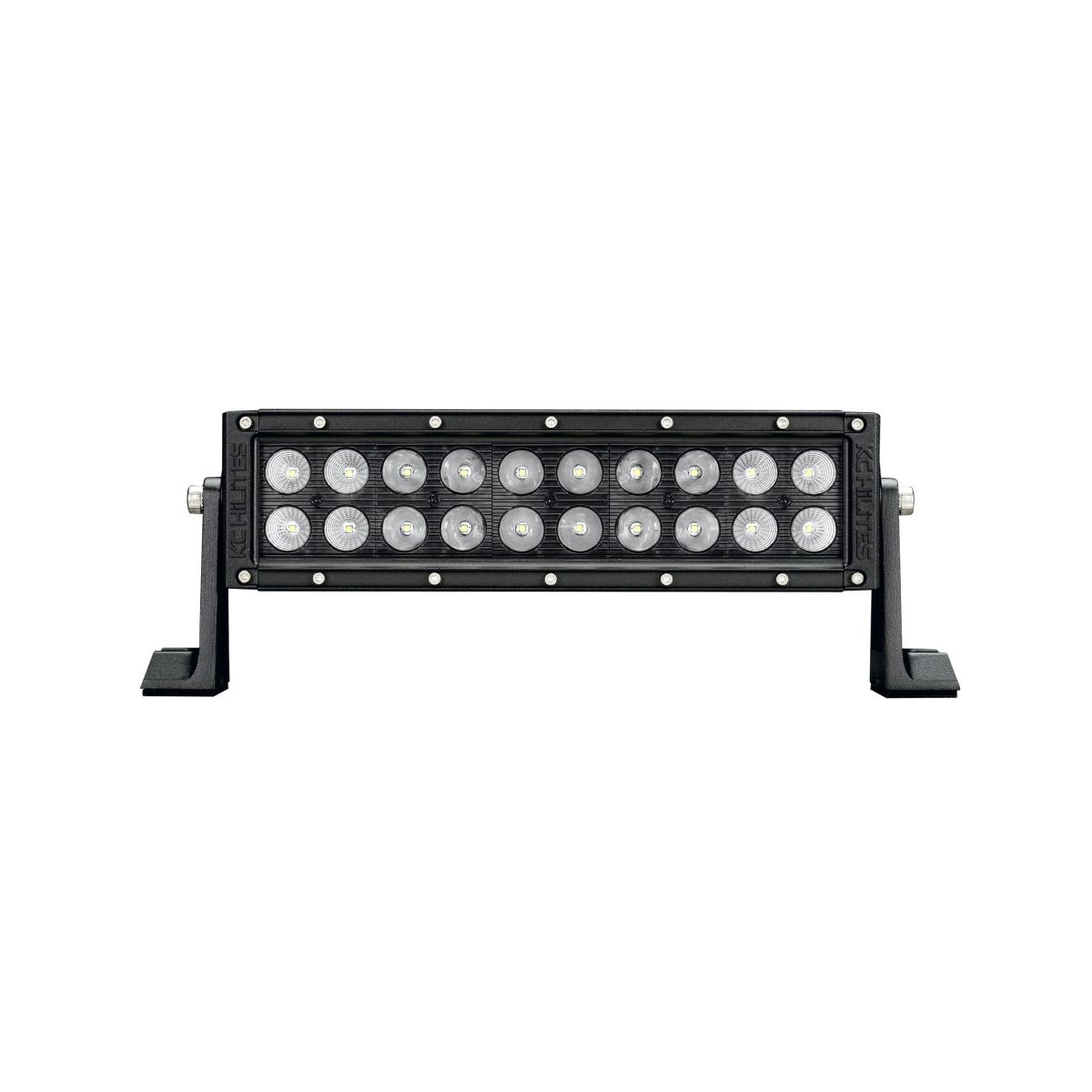

KC HiLiTES C-Series LED Light Bars feature bright and efficient CREE LEDs with combo 8° Spot and 90° Spread reflectors. Available in 6"-50" widths, perfect for hoods, front bumper, and grille applications on Jeeps, Trucks, UTVs and more.
FEATURES
- 6"to 50" C-SERIES LED Dual Row Light Bar
- Precision reflectors with forward facing LEDs
- Combo Beam Pattern: 8° Spot & 90° Spread
- Extruded Aluminum Housings
- GORE® Membrane Barrier
LIGHT PERFORMANCE
- RAW Lumens: 6"= 3,240 lm, 10"= 5,400 lm, 20"= 10,800 lm, 30"= 16,200 lm, 40"= 21,600 lm, 50"= 27,000 lm
- LUX @ 10 meters: 6"= 230 lx, 10"= 680 lx, 20"= 1,750 lx, 30"= 2,050 lx, 40"= 2,800 lx, 50"= 3,200 lx
- Candela: 6"= 23,000 cd, 10"= 68,000 cd, 20"= 175,000 cd, 30"= 205,000 cd, 40"= 280,000 cd, 50"= 320,000 cd
- Beam Distance (Meters): 6" = 303m, 10"= 522m, 20"= 837m, 30"= 906m, 40"= 1,058m, 50"= 1,131m
SPECIFICATIONS
- Wattage: 36W-300W
- LED Source: CREE LED
- Color: 6000K
- Amp Draw: 3.0A-25.0A
- Voltage: 9V-32V
- IP Rating: IP67
Product Dimensions:
- 6" = L - 7.38" x H - 3.09" x D - 3.40"
- 10" = L - 11.38" x H - 3.09" x D - 3.40"
- 20" = L - 21.38" x H - 3.09" x D - 3.40"
- 30" = L - 31.38" x H - 3.09" x D - 3.40"
- 40" = L - 41.38" x H - 3.09" x D - 3.40"
- 50" = L - 51.38" x H - 3.09" x D - 3.40"
Parts Included with C-SERIES Light Bars
- Deluxe Wiring Harness w/ 2-Pin weather proof connectors
- Die-Cast Mounting Brackets with hardware
PERFORMANCE OUTPUT AND CLARITY
- The C-Series uses an advanced dual row CREE LED design delivering up to 27,000 lumens of output with maximum power efficiency. Coming in various sizes KC HiLiTES C-Series LED Light bars are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.
HIGH PERFORMANCE MEETS AFFORDABILITY
- C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
COMBO BEAM PATTERN AND ADVANTAGES
- When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8° Spot & 90° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
DESIGNED FOR DURABILITY
- Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
