Product Details
| Part Number: | 703003 |
| Brand: | Baja Designs |

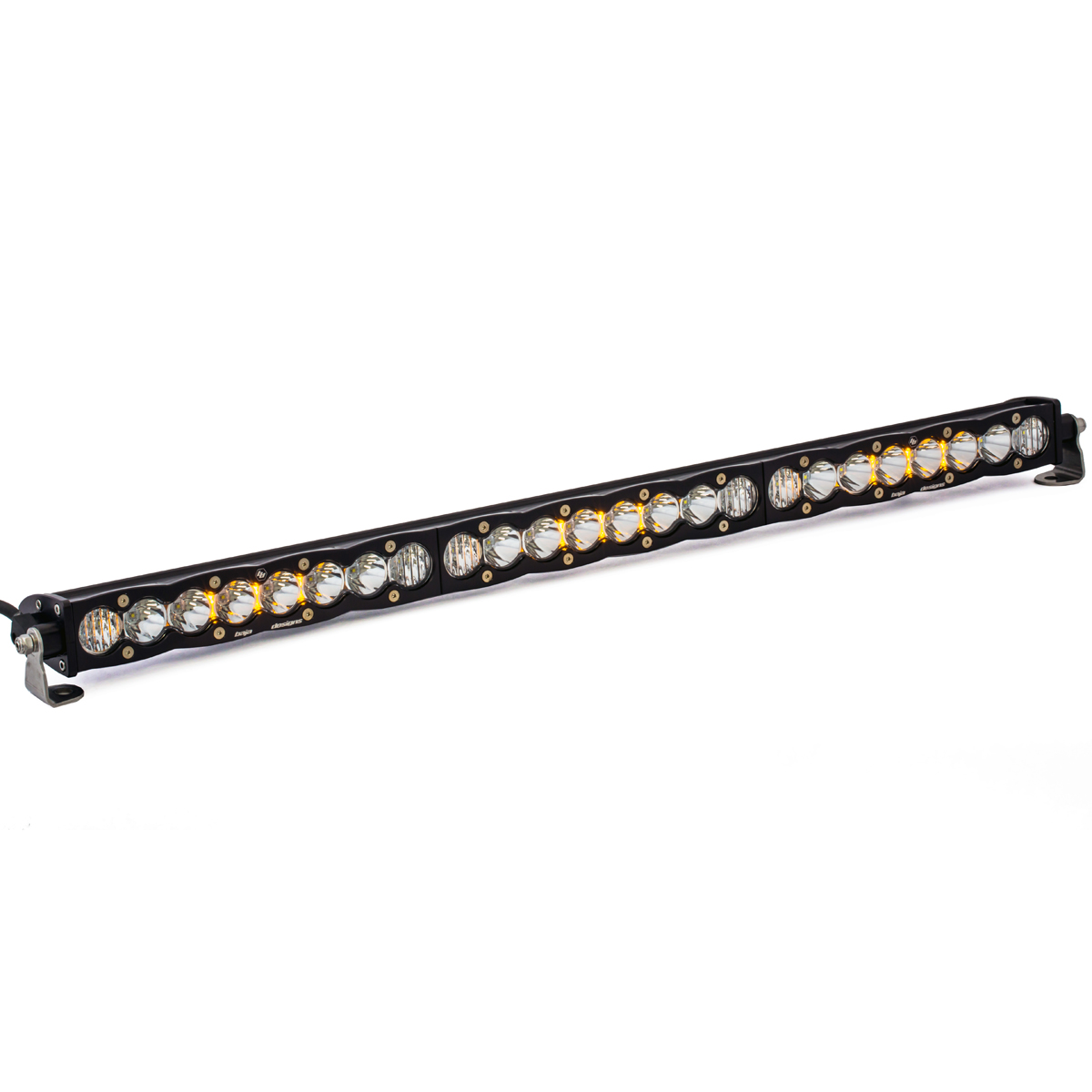

The Baja Designs S8 LED light bar for trucks offers a slim, low-profile design so you can save space on your vehicle for other accessories. The 30-inch driving/spot combo setup creates a focused beam for safer distance driving at high speeds and enhanced peripheral illumination for agile cornering. Installation bracket is included with purchase, and the wiring harness is available separately for simple installation and toggle control.
Specifications:
- Lumens: 19,050 Utilizing 24 Cree LEDs
- Wattage/Amps: 180W / 12A
- Dimensions: 30" x 3" x 1.6"
- Weight: 6.5 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- S8 30" LED Light Bar
- Mounting Brackets
**NOTE: This light does NOT include a harness and the applicable harness to this light is 640122
Patterns:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
- Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
- Work/Scene: Excellent work light or "scene light" with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
