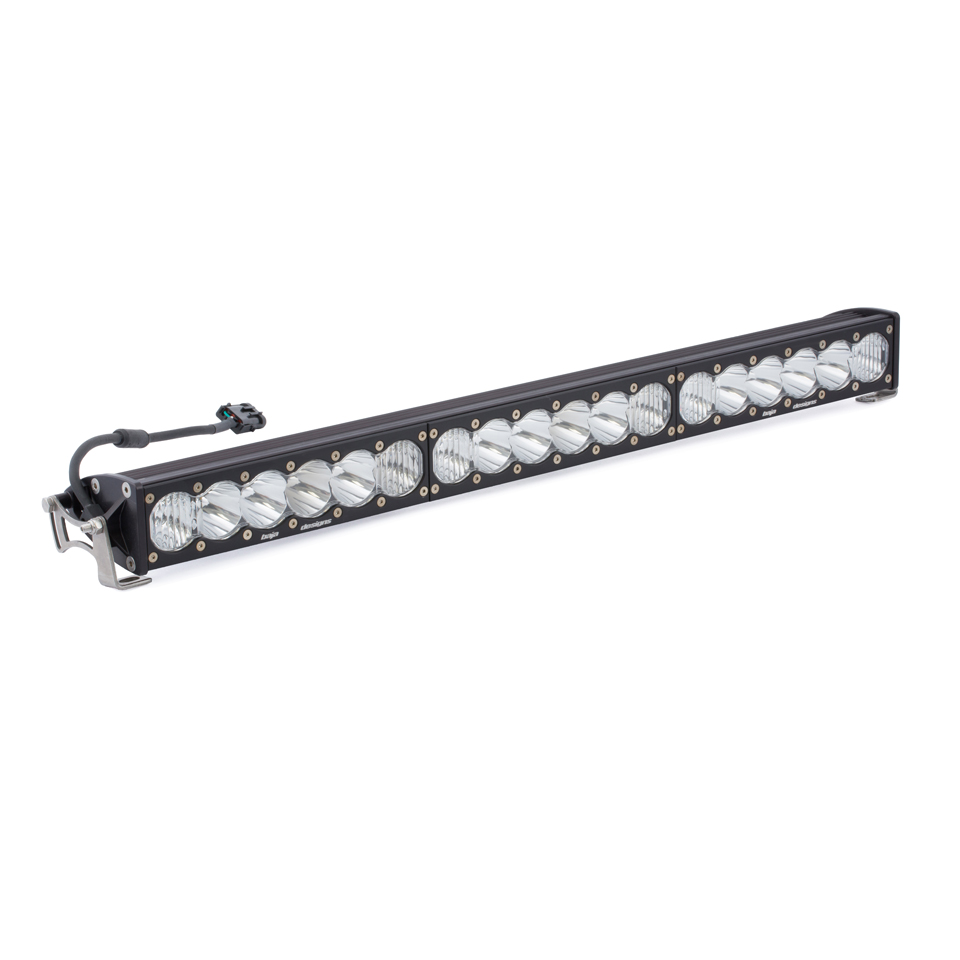

Baja Designs OnX6 Series Driving Combo 30 Inch LED Light Bar
Part Number: 453003

Baja Designs OnX6 Series Driving Combo 30 Inch LED Light Bar-A1
Baja Designs OnX6 Series Driving Combo 30 Inch LED Light Bar-A2
Images may be for reference only

Baja Designs OnX6 Series Driving Combo 30 Inch LED Light Bar
Part Number: 453003

Be the first to review!
$1,132.95 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 2266 reward points. Learn More


3 In Stock

Product Details

Part Number: 453003
Brand: Baja Designs

At an impressive 31,910 lumens, the brightest just got up to 69% brighter.  The Baja Designs OnX6+ LED light bar also integrates Baja Designs' trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT Battery Management Technology
  • Elimination Of Flickering at Low Voltage
  • Added Protection to Vehicle Wiring and Systems
  • Protection from Dangerous Current Spikes
  • The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Specifications:
  • Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
  • Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
  • Dimensions: 30" x 4.29" x 2.69"
  • Weight: 11.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
Includes:
  • OnX6+ 30" LED Light Bar
  • Mounting Brackets
  • Hi-Low Dongle

Please note that this light does NOT include a harness and the applicable harness to this light is 640119

Patterns:
  • Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
  • Racer Edition Spot:  A 4° beam focus for illumination WAY down the trail or road.  The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)
