Precision Works K-Series Swap K20 Intake Manifold on K24 Head Coolant Adapter Plate
Part Number: PW-KS-INTK-CL-ADPT

Images may be for reference only

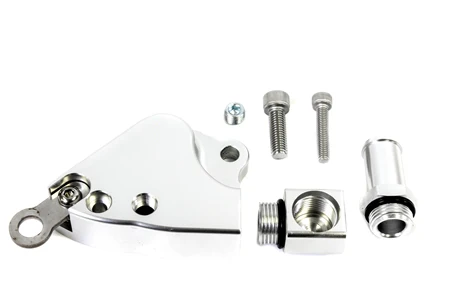

Precision Works K-Series Swap K20 Intake Manifold on K24 Head Coolant Adapter Plate
Part Number: PW-KS-INTK-CL-ADPT

Be the first to review!
Retail: $99.00
$54.95
Save: $44.05 (44%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 2.5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 110 reward points. Learn More

Please contact us for availablity
Ask us a Question

Product Details

Part Number: PW-KS-INTK-CL-ADPT
Brand: Private Label
Precision Works K Series Swap Intake Manifold Coolant Adapter Plate K20 Manifold On K24 Head

Features:
  • The K24 Intake Manifold Adapter is a simple and easy way to install a K20-style manifold on K24 heads.
  • The recirculation fitting on K24s is typically part of the intake manifold, which isn't on K20 intake manifolds.
  • We have designed the adapter to work with all K24 heads, including the K24Z-Series (R40) heads.
  • This can also be used to install K20 manifolds or cut RBC manifolds on 9th-gen Civic Si, as the water bypass is slightly different, and you will not need an intake manifold adapter when using the adapter.
  • The adapter also features a 1/8 NPT port for a coolant temp sensor commonly used in swap cars.
  • The Intake Manifold Adapter can be installed either using our spring-loaded tab or by tapping the head.
  • We use Honda bond or a similar gasket maker as it provides a strong seal, and when using the spring-loaded tab, when the adapter is not under pressure, there will be no chance of a leak.
  • The spring-loaded tab holds the adapter down with constant spring pressure to ensure a tight fit and seal.
  • The other option is using the provided blind hole; you can easily tap the head for the second hole.

Tools Required For Installation: (NOT INCLUDED)
  • Tapping the head will require a 6.5mm drill bit (to finish the blind hole in the adapter)
  • 5mm drill bit (to drill the head)
  • M6x1.0 Tap.

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Acura TSX
2004 Acura TSX Base
2005 Acura TSX Base
2006 Acura TSX Base
2007 Acura TSX Base
2008 Acura TSX Base
Honda Accord
2003 Honda Accord DX
2004 Honda Accord DX
2005 Honda Accord DX
2003 Honda Accord EX
2004 Honda Accord EX
2005 Honda Accord EX
2006 Honda Accord EX
2007 Honda Accord EX-L
2003 Honda Accord LX
2005 Honda Accord LX
2006 Honda Accord LX
2006 Honda Accord LX Special Edition
2005 Honda Accord SE
2007 Honda Accord Special Edition
2006 Honda Accord Value Package
2007 Honda Accord Value Package
Honda CR-V
2002 Honda CR-V EX
2003 Honda CR-V EX
2004 Honda CR-V EX
2005 Honda CR-V EX
2006 Honda CR-V EX
2002 Honda CR-V LX
2003 Honda CR-V LX
2004 Honda CR-V LX
2005 Honda CR-V LX
2006 Honda CR-V LX
2005 Honda CR-V SE
2006 Honda CR-V SE
Honda Element
2003 Honda Element DX
2004 Honda Element DX
2003 Honda Element EX
2004 Honda Element EX
2005 Honda Element EX
2006 Honda Element EX
2007 Honda Element EX
2008 Honda Element EX
2009 Honda Element EX
2010 Honda Element EX
2011 Honda Element EX
2004 Honda Element LX
2005 Honda Element LX
2006 Honda Element LX
2007 Honda Element LX
2008 Honda Element LX
2009 Honda Element LX
2010 Honda Element LX
2011 Honda Element LX
2007 Honda Element SC
2008 Honda Element SC
2009 Honda Element SC
2010 Honda Element SC

Engine Fitment

Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
