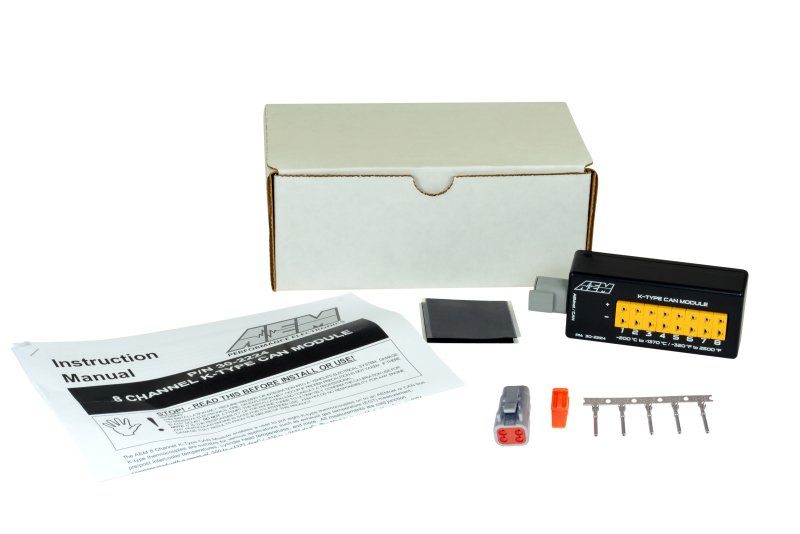

The AEM 8-Channel K-Type Thermocouple EGT CAN Module offers a versatile and high-precision solution for measuring exhaust gas temperatures and other critical engine parameters. Designed for automotive applications, this module features pre-configured AEMnet CAN bus connectivity, enabling seamless plug-and-play integration with compatible digital dashboards, ECUs, and data loggers. The included CAN module and DTM connector plug facilitate straightforward installation, while the Velcro tab provides convenient in-vehicle mounting options. This setup simplifies data acquisition by allowing all channels to be accessed via a single configurable CAN bus connection, with optional daisy-chaining for up to 16 inputs through one plug, making it ideal for complex engine monitoring setups. Each module includes eight K-type thermocouple inputs, compatible with common K-type thermocouple sensors (sold separately), allowing precise measurement of temperatures ranging from -200°F to 2,372°F (-328°C to 1,372°C). The cold junction compensation ensures lab-grade accuracy with a measurement precision of 0.1°C (0.18°F), essential for performance tuning and safety monitoring. The module features integrated open circuit and fault detection, enhancing reliability and diagnostic capabilities. Its compact design and use of miniature thermocouple sockets facilitate easy installation in tight spaces, making it suitable for motorsports, custom builds, and performance applications. Constructed with durability and precision in mind, the AEM 8-Channel K-Type Thermocouple EGT CAN Module is a critical component for advanced engine management systems. Its robust features, including configurable CAN outputs and daisy-chain capability, provide flexibility for expanding temperature monitoring systems. While not compatible with Series 2 ECUs, it integrates seamlessly with many other digital dash systems and ECUs, offering a reliable solution for detailed thermal analysis and engine tuning. Crafted with Prop 65 compliance, this module adheres to safety standards, making it an excellent choice for professional and enthusiast-level automotive projects.

Features:

• Pre-configured AEMnet CAN bus for plug-and-play connection to digital dashes, ECUs, and data loggers
• Outputs all channels via a single configurable CAN bus connection
• Includes 8 K-type thermocouple inputs for precise temperature measurement
• Supports daisy-chaining modules for up to 16 temperature inputs
• Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
• Measures temperatures from -200°F to 2,372°F (-328°C to 1,372°C)
• Temperature resolution of 0.1°C (0.18°F)
• Uses common miniature thermocouple sockets for easy wiring
• Integrated open circuit and fault detection for reliable operation
• Compact design with mounting Velcro for flexible installation
