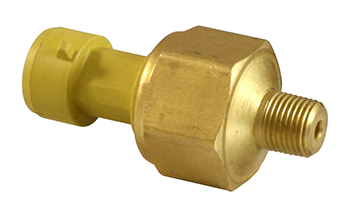

AEM 3.5 BAR/50 PSIa Brass Sensor Kit
Part Number: 30-2131-50

AEM 3.5 BAR/50 PSIa Brass Sensor Kit-A1
Images may be for reference only

AEM 3.5 BAR/50 PSIa Brass Sensor Kit
Part Number: 30-2131-50

Be the first to review!
Price: $74.17
$66.75
Save: $7.42 (10%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 134 reward points. Learn More

6 In Stock
Monday-Friday: 10am-4pm MST

Product Details

Brand: AEM Electronics
Part Number: 30-2131-50
UPC: 840879019945

3.5 BAR / 50 PSIa MAP Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 3.5 BAR / 50 PSIa MAP Brass Sensor, Connector & Pins.

Sensor Performance Specifications:
  • Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -20C to 105C / -4F to 221F
  • Burst Pressure: 60PSI
  • Response Time: < 1mS
  • Wetted Materials: 304L & 316L Stainless Steel
  • Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Weight: <85g
  • Supply Current: <6mA at 5 Vdc
  • Output: .5 to 4.5Vdc Linear
  • Transfer Function: PSI = (7.5*(Voltage))-18.75
  • Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)

    • WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

    Vehicle Fitment

    This part does not have vehicle specific fitment
