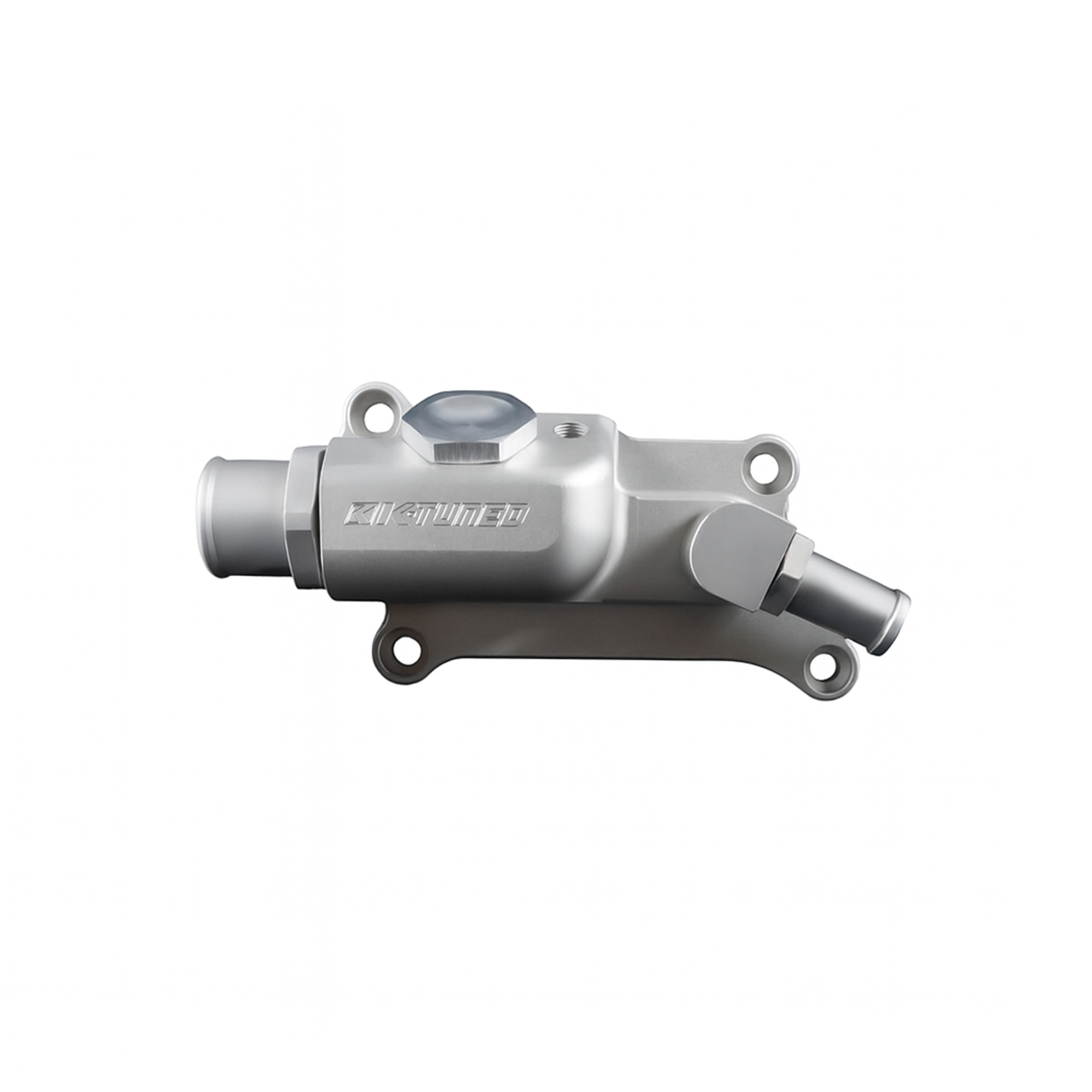

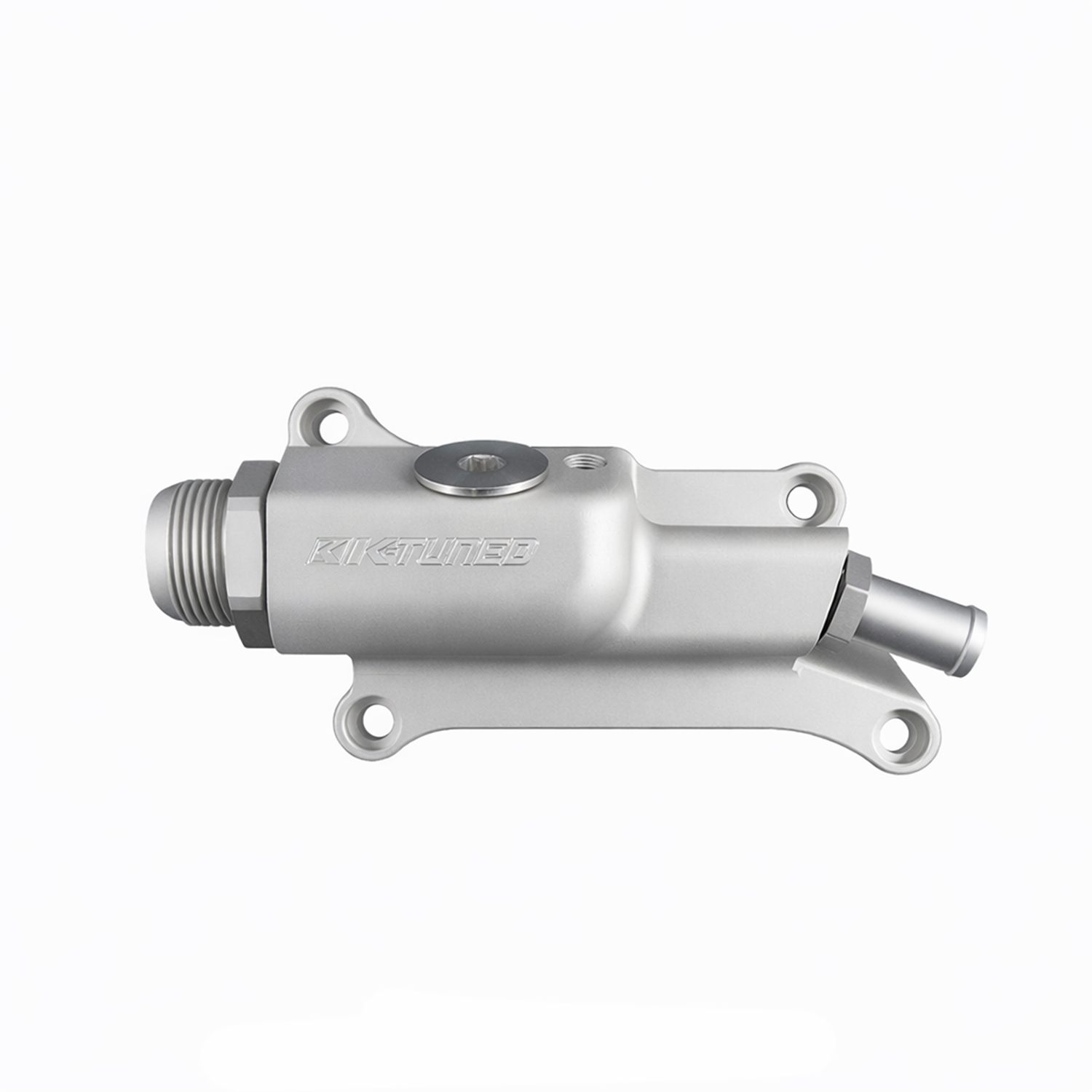

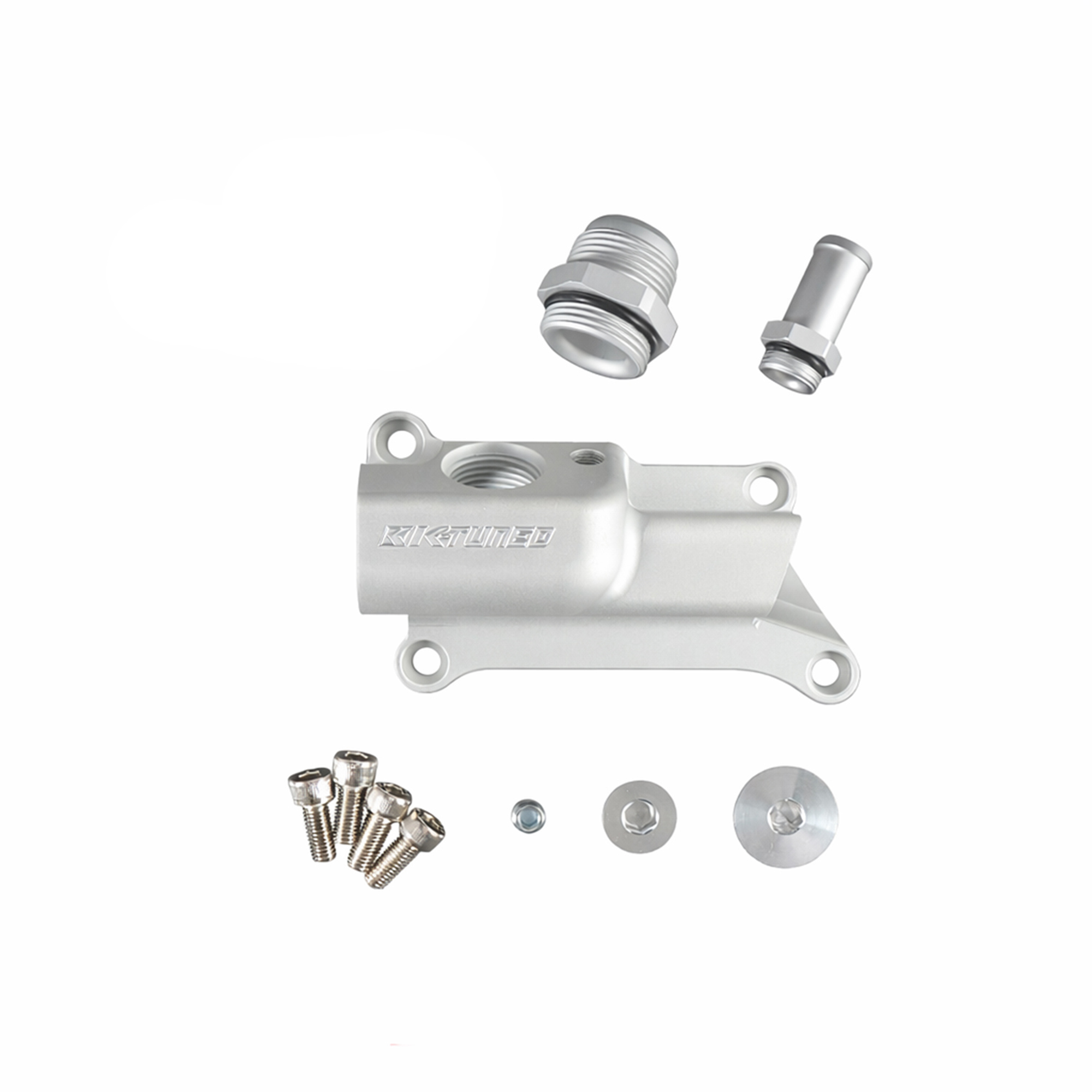

K-Tuned K24/K20Z3 Straight Inlet Upper Coolant Housing without Filler Neck
Part Number: KUW-24S-N01

Images may be for reference only

$149.99

Earn 300 reward points. Learn More

10+ In Stock

Product Details

Part Number:	KUW-24S-N01
Brand:	K-Tuned

Here is the K-Tuned Upper Coolant Housing. With applications for both K20 and K24 engines, these housings will provide several unique advantages over the stock units. The hose outlet on the K-Tuned housing pivots slightly, allowing approximately 15 degrees of angle adjustment. This is helpful when compared to the fixed the factory outlet that always seems to put the upper rad hose in the path of the intake piping. There are three available hose outlets to work with any radiator hose setup. Choose the standard 1.25" rad hose outlet for use with regular rubber or silicone rad hoses. Switch to our optional 16AN fittings for use with upgraded hose and fittings that are also available from K-Tuned.

We have also designed an optional Filler Neck that can be used to relocate the radiator cap to a higher point on the engine itself. The new location is the highest point of the cooling system and allows air pockets to easily escape during the coolant bleeding process. The optional Filler Neck is also available with standard 1.25" hose or in 16AN sizes and was designed for use with an OEM 92-00 Honda Civic radiator cap. This part will be very helpful on an engine that already has a bad reputation for coolant bleeding.

The K-Tuned Upper Coolant Housing will compliment our Swivel Neck Thermostat and our Water Pump Block off Plate. All of these parts allow plenty of options for custom and race engine cooling setups.

Feature:

a -16OR (O-Ring) Outlet and a -12OR (O-Ring) Filler Inlet

Applications:

K20Z3
K24 heads

Notes:

Excludes K24A1, K24Z and K24Y Series
Designed to provide greater clearance for sidewinder turbo manifolds
There will be a fitment issues with the K20 Upper coolant housing and Jackson Racing Superchargers.
Does not come with radiator cap, it is an optional item

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Acura TSX

2004 Acura TSX Base
2005 Acura TSX Base
2006 Acura TSX Base
2007 Acura TSX Base
2008 Acura TSX Base

Honda Accord

2003 Honda Accord DX
2004 Honda Accord DX
2005 Honda Accord DX

2003 Honda Accord EX
2004 Honda Accord EX
2005 Honda Accord EX
2006 Honda Accord EX

2007 Honda Accord EX-L

2003 Honda Accord LX
2005 Honda Accord LX
2006 Honda Accord LX

2006 Honda Accord LX Special Edition

2005 Honda Accord SE

2007 Honda Accord Special Edition

2006 Honda Accord Value Package
2007 Honda Accord Value Package

Honda CR-V

2002 Honda CR-V EX
2003 Honda CR-V EX
2004 Honda CR-V EX
2005 Honda CR-V EX
2006 Honda CR-V EX

2002 Honda CR-V LX
2003 Honda CR-V LX
2004 Honda CR-V LX
2005 Honda CR-V LX
2006 Honda CR-V LX

2005 Honda CR-V SE
2006 Honda CR-V SE

Honda Civic

2008 Honda Civic MUGEN Si

2006 Honda Civic Si
2007 Honda Civic Si
2008 Honda Civic Si
2009 Honda Civic Si
2010 Honda Civic Si
2011 Honda Civic Si

Honda Element

2003 Honda Element DX
2004 Honda Element DX

2003 Honda Element EX
2004 Honda Element EX
2005 Honda Element EX
2006 Honda Element EX
2007 Honda Element EX
2008 Honda Element EX
2009 Honda Element EX
2010 Honda Element EX
2011 Honda Element EX

2004 Honda Element LX
2005 Honda Element LX
2006 Honda Element LX
2007 Honda Element LX
2008 Honda Element LX
2009 Honda Element LX
2010 Honda Element LX
2011 Honda Element LX

2007 Honda Element SC
2008 Honda Element SC
2009 Honda Element SC
2010 Honda Element SC
