Product Details
| Part Number: | 344-05-1300 |
| Brand: | Skunk2 |
| Valve Spring Seat Pressure: | 68 lbs |
| Valve Spring Open Pressure: | 210 lbs |

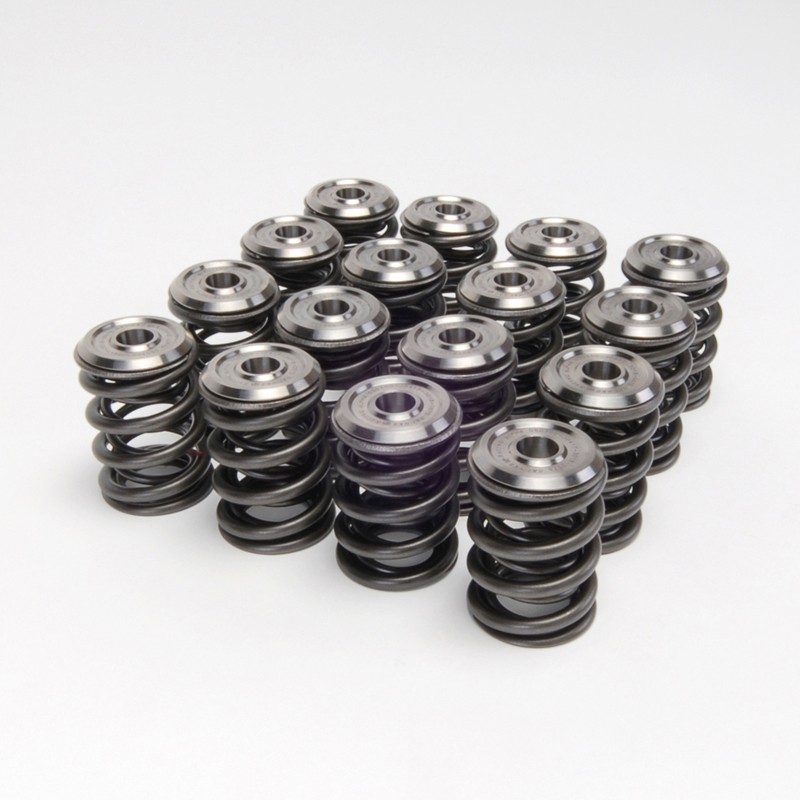

Skunk2 Alpha dual valve springs with titanium retainers for Honda B16, B17, and B18 VTEC engines.
- Seat Pressure: 68 lbs at 1.320"
- Open Pressure: 210 lbs at 0.820"
- Coil Bind: 0.800"
- Dual valve springs
- Titanium retainers
- Manufactured exclusively from super-clean, chrome-silicone wire milled in Japan.
- Valvetrain stability in excess of 10,000 rpm.
- Manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis).
Manufactured from the best materials available, Skunk2 valvetrain components provide exceptional performance, reliability, and quality and remain standard-issue on each Skunk2 vehicle that we build and support.
Not compatible with Pro Series Camshafts.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1992 | Acura | Integra | GS-R |
| 1993 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | GS-R |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | Type R |
| 1999 | Acura | Integra | GS-R |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | Type R |
Engine Fitment
Honda 1.7L/1678CC - 4 Cylinder (B17A1)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
