Product Details
| Part Number: | 305-05-5140 |
| Brand: | Skunk2 |
| CARB Approved: | No |

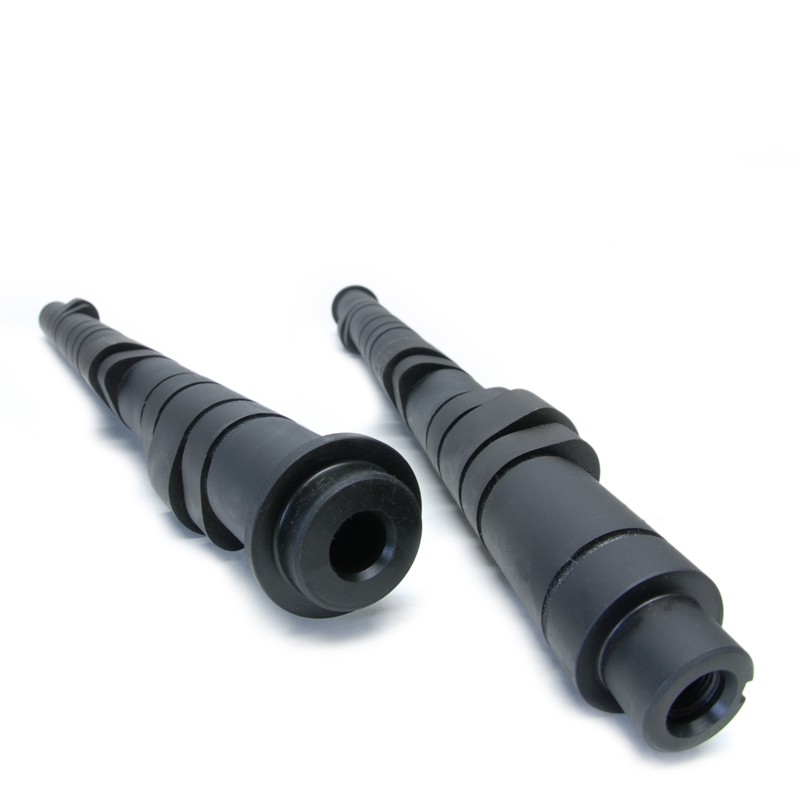

Skunk2 Pro Series Camshafts for Honda B-series engines - the ultimate performance upgrade for your vehicle! Unleash the full potential of your engine with these camshafts that deliver a perfect blend of power, stability, and responsiveness. Here's why you need Skunk2 Pro Series Camshafts:
Powerful Performance:
- Dramatically increases both horsepower and torque.
- Retains complete valvetrain stability.
- Provides exceptional engine response.
Precision Engineering:
- Manufactured from proprietary, high-quality cores for reliability.
- CNC ground for precise specifications.
- Patent-pending profiles with unique lobe shapes.
- Revolutionary lift, velocity, and acceleration characteristics.
Maximum Power Across the Entire Powerband:
- Advanced manufacturing techniques for peak power delivery.
- Computerized simulation and modeling equipment for precision.
- In-house design and testing for top-notch quality and performance.
Enhanced Durability:
- Made from newly revised chill-cast, billet camshaft blanks.
- Increased torsional strength and improved durability.
- Reduced frictional effects for long-lasting performance.
Fast Ramp and AMAX Profile Technology:
- Fast Ramp for reduced seat timing and increased cylinder pressure.
- AMAX profile maximizes lift curve area without compromising reliability.
- More duration than competitors at lifts above 1mm for efficiency and power.
Proven Performance:
- Years of drag racing and road racing experience behind our designs.
- Trusted by top road racing and drag racing teams worldwide.
Note:
- Required components: Pro Series Valve Springs, Titanium Retainers, Lost Motion Assembly.
- Recommended: High-compression, Engine Management.
Specifications:
- Intake Duration / Lift: 258' / 12.65mm.
- Exhaust Duration / Lift: 260' / 11.90mm.
- Intake Centerline: 98'.
- Exhaust Centerline: 105'.
- Valve Clearance (Intake / Exhaust): .007 / .008.
- RPM Range: 1,500 - 9,000 rpm.
- HP Gains: 15 - 20 hp.
- Torque Gains: 18 - 22 lb-ft.
Important Note: When using camshafts with greater than 12.6mm of lift, ensure you use the following components to prevent potential engine damage:
- Skunk2 Pro Series Valve Springs (P/N 311-05-5350).
- Skunk2 B-Series VTEC Lost Motion Assembly (P/N 312-05-0200).
Upgrade your engine with Skunk2 Pro Series Camshafts and experience unmatched power and performance on the road or track. Elevate your driving experience today!
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1992 | Acura | Integra | GS-R |
| 1993 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | GS-R |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | Type R |
| 1999 | Acura | Integra | GS-R |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | Type R |
Engine Fitment
Honda 1.7L/1678CC - 4 Cylinder (B17A1)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
