Product Details
| Part Number: | KTD-TB9-K41 |
| Brand: | K-Tuned |

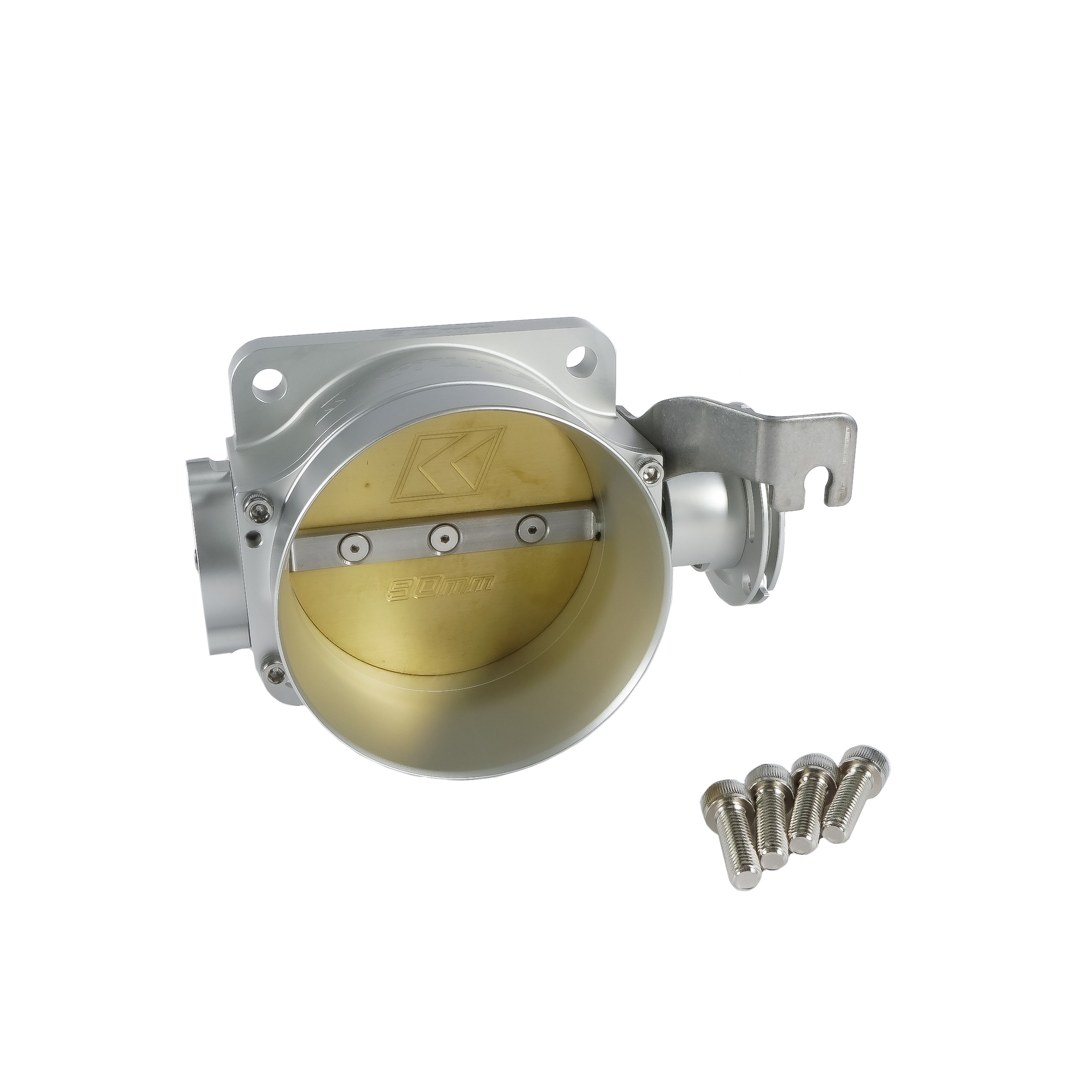

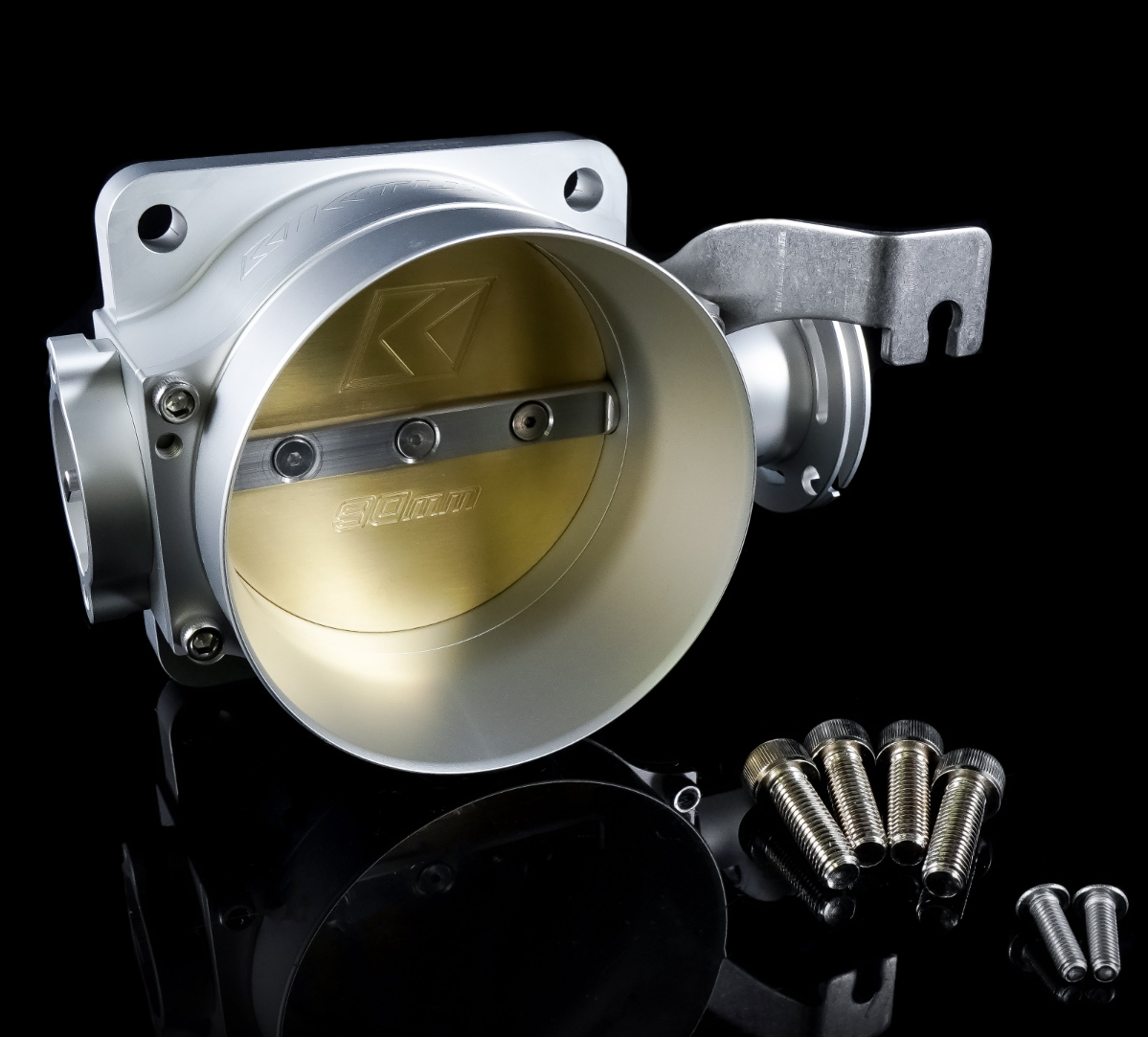

The K-Tuned 90mm Throttle Body Uses that popular bolt pattern from the 86-93 Ford Mustang 5.0L. This allows our throttle body to bolt up perfectly to some of the bigger aftermarket race style intake manifold options. The 90mm K-Series TPS and comes standard with a 4" barb inlet. As with our previous designs, the throttle spring tension can be adjusted to suit the driver. We also have Vanjen (Wiggins Style) inlets available separately in 2 additional sizes.
The base of the throttle body and the inlet are o-ring sealed so there is no need for additional gaskets. The throttle cable connection is easy, using the adjustable row rotor with a lower profile, stainless throttle cable bracket. All K-Tuned Throttle Bodies are constructed with 6061-T6 billet aluminum with a brass throttle blade and a stainless steel throttle shaft. Shaft seals are leak tested to 90psi.
Features:
- Universal Bolt pattern matches all 86-93 Ford Mustang 5.0L specs.
- O-Rings Sealed
- K-Tuned throttle cables should be used with K-Tuned TB's. In most cases the stock cables will NOT be the correct length
- Compatible with our newer 2019+ style inlets
- No MAP Sensor or IACV Sensors ports, these are now deleted
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
