Wilwood 02-06 RSX / 02-05 Civic SI Black Caliper Drilled Rotor 4 Piston Dynalite Front BBK
Part Number: 140-7014

★★★★★ ★★★★★ 4 Reviews
Images may be for reference only

Wilwood 02-06 RSX / 02-05 Civic SI Black Caliper Drilled Rotor 4 Piston Dynalite Front BBK
Part Number: 140-7014

★★★★★ ★★★★★ 4 Reviews
Retail: $1014.38
$905.70 & Free Shipping
Save: $108.68 (11%)

Earn 1811 Builders Club Points. Learn More


5+ In Stock

Product Details

Part Number: 140-7014
Brand: Wilwood
Color: Black
Rotor Type: Solid
Location: Front
Position: Left and Right (Driver and Passenger)
Fitment Notes: Minimum 17" Wheel Required

Forged Dynalite ProSeries kits provide high performance, big brake stopping power by combining modern brake technology with high-tech styling to update the brakes on your front-wheel-drive sport compact vehicle. The OE calipers and rotors are replaced with forged aluminum, four-piston calipers mounted over larger diameter, certified alloy 30-vane vented iron rotors. The new two-piece rotor assemblies provide weight-saving forged aluminum mounting hats. The calipers feature an increase in effective piston volume to deliver higher clamping power with less pedal effort than stock. The thicker, vented rotor design adds cooling efficiency and durability to extend service life. BP-series SmartPads add high-response with increased resistance to fade and longer wear over typical OE replacement pads. Options for caliper colors and rotor styles are available to personalize the look on any car. For on-track driving enthusiasts, additional track-only fortifications are available on a custom order basis by contacting the technical staff at the factory.

NOTE
Brake Kit does not include flex lines. Wilwood 220-6860 brake lines are necessary to complete the installation of the kit and must be ordered separately.

This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

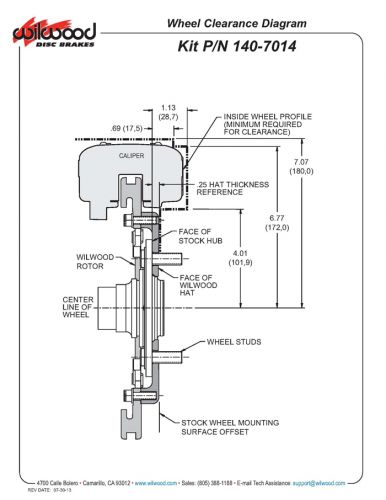

Check "Wheel Clearance Diagram" in the installation instructions below or image above to verify you have adequate wheel clearance for this kit.

Rotor Diameter: 12.19

Wheel Diameter: 15

Installation Instructions


WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Minimum 17" Wheel Required
Year Make Model Trim
2002 Acura RSX Base
2002 Acura RSX Type-S
2003 Acura RSX Base
2003 Acura RSX Type-S
2004 Acura RSX Base
2004 Acura RSX Type-S
2004 Honda Civic Si
2005 Acura RSX Base
2005 Acura RSX Type-S
2005 Honda Civic Si
2006 Acura RSX Base
2006 Acura RSX Type-S

4 Reviews ★★★★★ ★★★★★

★★★★★ ★★★★★
4/5.00 Stars out of 4 Reviews
Write a Review
1 ★
0
2 ★
1
3 ★
0
4 ★
1
5 ★
2
lines
★ ★
Joe | February 29th, 2020
The brakes are great but I had a lot of issues upon installing them and my first drive. The line kit says it comes with all necessary hardware but there was no seal (o-ring, crush washer, etc.) with the elbows for the part that goes into the caliper (and it
Great Upgrade
★ ★ ★ ★
Michael DiDomizio | November 9th, 2015
Ive had these and also upgraded pads and rotors and if your looking for more stopping power this is the way to go. Car stops fast, deff can feel the difference.
Perfect for daily and autocross use
★ ★ ★ ★ ★
Chris Landegent | May 8th, 2012
The installation is very simple. One thing not mentioned in the directions however is that you need to be sure not to screw the brake line elbow into the caliper with it pointed at the caliper bracket bolt -- you will have to redo it if you do because you will be unable to get the bolt in/out. Another note is that during initial break-in the rotors make an awful screeching sound until the black surface completely burns off, but don't worry about it, it's normal/safe
Wilwoood Front Big Brake Kit Red Caliper Drilled/Slotted Rotors
★ ★ ★ ★ ★
Christian | April 6th, 2012
This kit really makes a difference u can tell right away its real light weight. Very good stopping power and looks amazing.
