Product Details
| Part Number: | PLM-OPB-K |
| Brand: | Private Label |

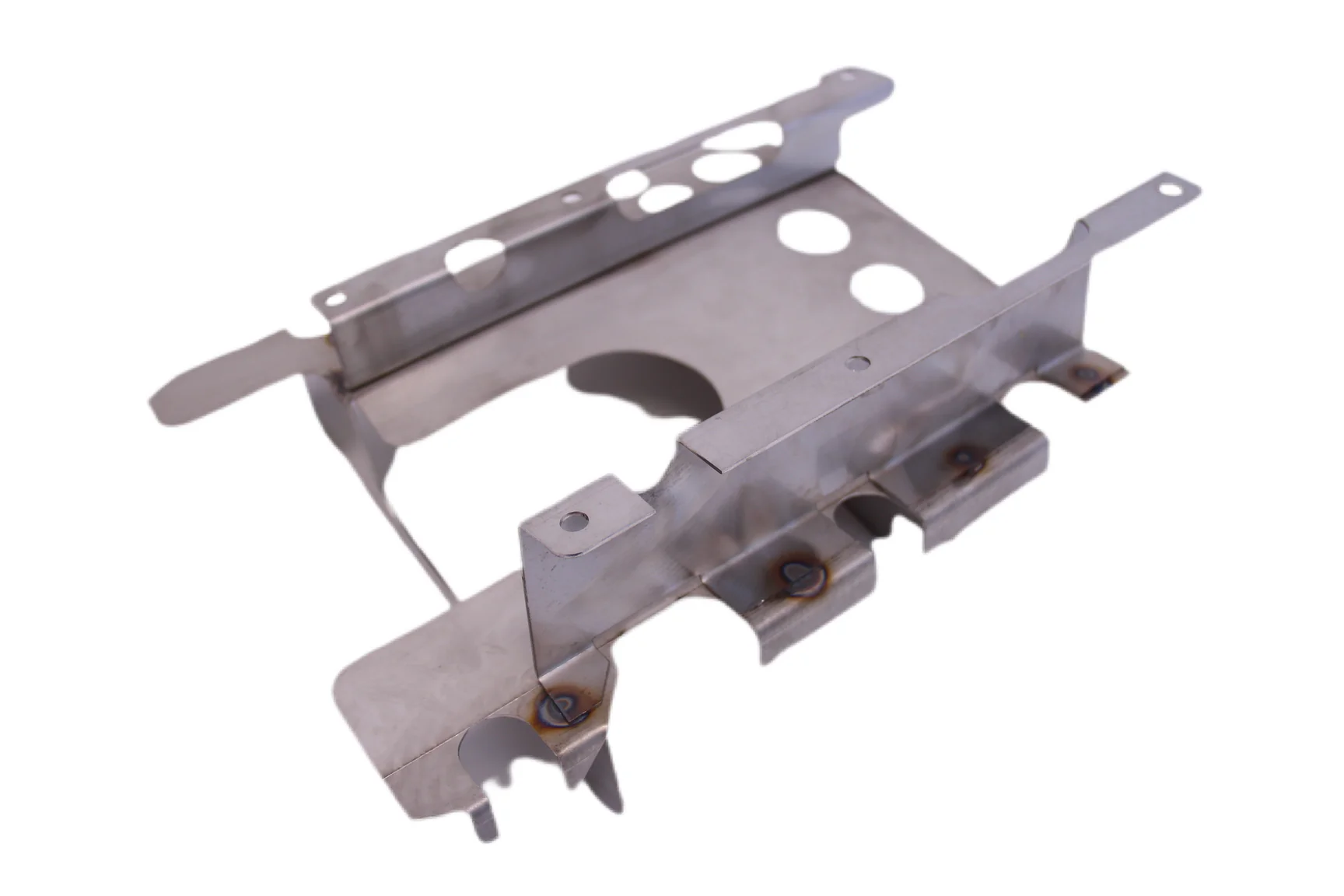

PLM Oil Pan Baffle Kit - Honda K-Series K20 K24
Why is our oil pan baffle better? The PLM oil pan baffle is completely welded and does not use rivets. Rivets can come loose and break inside your oil pan, potentially causing serious engine damage or failure. We use high-quality stainless steel plates, CNC machined, laser cut, and precision bent, then finally Tig spot-welded at circuital points.
Key Features:
- Stainless steel plates
- Precision CNC-machined
- Completely welded without rivets or nuts
- Includes all hardware for bolt-on installation
- No welding required
- Fits engines using K20A/A2/Z1 oil pump & pan
- Direct bolt-on for JDM K20A, K20A2, K20Z1.
- Does not fit K24Z engines.
Designed to work with Honda K-Series engines that have the following parts:
- RSX-S oil pan: PN 1200-PRB-000
- RSX-S oil pump: PN 15100-PRB-A01
- RSX-S chain: PN 13441-PCX-004
- RSX-S chain guide: PN 13460-PNC-004
- Need to use 02-06 RSX Type-S oil pump & pan
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Type-S |
| 2003 | Acura | RSX | Type-S |
| 2004 | Acura | RSX | Type-S |
| 2005 | Acura | RSX | Type-S |
| 2006 | Acura | RSX | Type-S |
Engine Fitment
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
