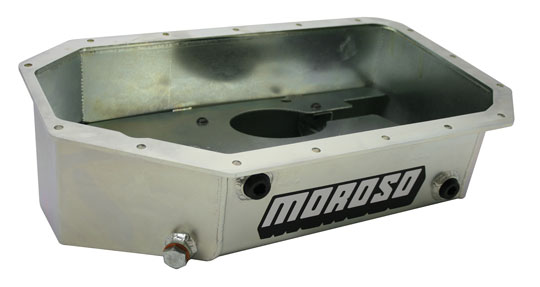

Moroso K-Series Swap Baffled Oil Pan
Part Number: 20915

★★★★★ ★★★★★ 2 Reviews
Images may be for reference only

Moroso K-Series Swap Baffled Oil Pan
Part Number: 20915

★★★★★ ★★★★★ 2 Reviews
Retail: $617.78
$516.99 & Free Shipping
Save: $100.79 (16%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 2.5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1034 reward points. Learn More

10+ In Stock
Ask us a Question

Product Details

Part Number: 20915
Brand: Moroso
Whether you daily drive, drag, oval, or road race, Moroso has the oil pan your engine needs specially designed for your sport compact. Each pan is fully fabricated from aluminum or steel (all Moroso steel pans are clear zinc finished), with race proven features that control oil for maximum power.

The key is to keep the crankshaft free of excess oil which allows the engine to spin freely and achieve its full power potential.

Features:

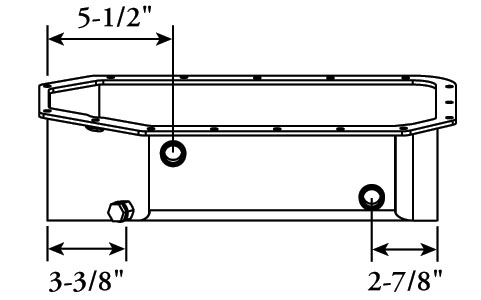

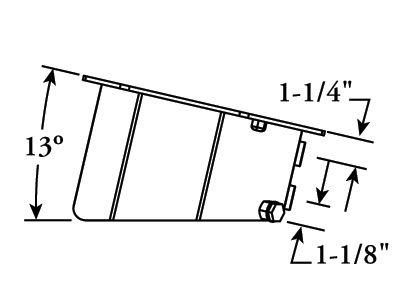

  • Oil Pan has a thick steel rail with a sump that is 5.5" deep, 16.75" long and 9" wide.

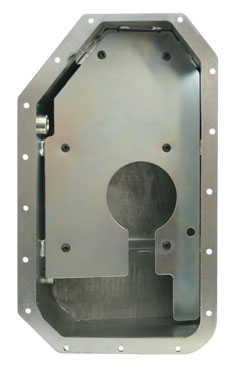

  • Features a race proven trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing.
  • Extra capacity: holds two more quarts than stock.
  • 1/2" NPT fitting for supercharger or turbo drain back.
  • 1/2" NPT fitting for oil temperature sender.
  • Magnetic drain plug.

    • Notes:
  • Designed to be used with the Acura RSX oil pump assembly and Acura RSX Windage Tray
  • Oil pump assembly might require slight notching to clear certain K-series main caps.
  • K20/K24 Frank builds may require modification.

    • WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

    Vehicle Fitment

    Acura Integra
    1990 Acura Integra GS
    1991 Acura Integra GS
    1992 Acura Integra GS
    1993 Acura Integra GS
    1997 Acura Integra GS
    1998 Acura Integra GS
    1999 Acura Integra GS
    2000 Acura Integra GS
    1992 Acura Integra GS-R
    1993 Acura Integra GS-R
    1994 Acura Integra GS-R
    1995 Acura Integra GS-R
    1996 Acura Integra GS-R
    1997 Acura Integra GS-R
    1998 Acura Integra GS-R
    1999 Acura Integra GS-R
    2000 Acura Integra GS-R
    1990 Acura Integra LS
    1991 Acura Integra LS
    1992 Acura Integra LS
    1993 Acura Integra LS
    1994 Acura Integra LS
    1995 Acura Integra LS
    1996 Acura Integra LS
    1997 Acura Integra LS
    1998 Acura Integra LS
    1999 Acura Integra LS
    2000 Acura Integra LS
    1990 Acura Integra RS
    1991 Acura Integra RS
    1992 Acura Integra RS
    1993 Acura Integra RS
    1994 Acura Integra RS
    1995 Acura Integra RS
    1996 Acura Integra RS
    1997 Acura Integra RS
    1998 Acura Integra RS
    1995 Acura Integra Special Edition
    1996 Acura Integra Special Edition
    1997 Acura Integra Type R
    1998 Acura Integra Type R
    2000 Acura Integra Type R
    Honda Accord
    1993 Honda Accord 10th Anniversary
    1996 Honda Accord 25th Anniversary Edition
    1990 Honda Accord DX
    1991 Honda Accord DX
    1992 Honda Accord DX
    1993 Honda Accord DX
    1994 Honda Accord DX
    1995 Honda Accord DX
    1996 Honda Accord DX
    1997 Honda Accord DX
    1990 Honda Accord EX
    1991 Honda Accord EX
    1992 Honda Accord EX
    1993 Honda Accord EX
    1994 Honda Accord EX
    1995 Honda Accord EX
    1996 Honda Accord EX
    1997 Honda Accord EX
    1990 Honda Accord LX
    1991 Honda Accord LX
    1992 Honda Accord LX
    1993 Honda Accord LX
    1994 Honda Accord LX
    1995 Honda Accord LX
    1996 Honda Accord LX
    1997 Honda Accord LX
    1991 Honda Accord SE
    1993 Honda Accord SE
    1997 Honda Accord SE
    1996 Honda Accord Value Package
    1997 Honda Accord Value Package
    Honda CRX
    1989 Honda CRX Base
    1990 Honda CRX Base
    1991 Honda CRX Base
    1988 Honda CRX DX
    1988 Honda CRX HF
    1989 Honda CRX HF
    1990 Honda CRX HF
    1991 Honda CRX HF
    1988 Honda CRX Si
    1989 Honda CRX Si
    1990 Honda CRX Si
    1991 Honda CRX Si
    Honda Civic
    1988 Honda Civic Base
    1989 Honda Civic Base
    1990 Honda Civic Base
    1991 Honda Civic Base
    1992 Honda Civic CX
    1993 Honda Civic CX
    1994 Honda Civic CX
    1995 Honda Civic CX
    1996 Honda Civic CX
    1997 Honda Civic CX
    1998 Honda Civic CX
    1999 Honda Civic CX
    2000 Honda Civic CX
    1988 Honda Civic DX
    1989 Honda Civic DX
    1990 Honda Civic DX
    1991 Honda Civic DX
    1992 Honda Civic DX
    1993 Honda Civic DX
    1994 Honda Civic DX
    1995 Honda Civic DX
    1996 Honda Civic DX
    1997 Honda Civic DX
    1998 Honda Civic DX
    1999 Honda Civic DX
    2000 Honda Civic DX
    1990 Honda Civic EX
    1991 Honda Civic EX
    1992 Honda Civic EX
    1993 Honda Civic EX
    1994 Honda Civic EX
    1995 Honda Civic EX
    1996 Honda Civic EX
    1997 Honda Civic EX
    1998 Honda Civic EX
    1999 Honda Civic EX
    2000 Honda Civic EX
    1998 Honda Civic GX
    1999 Honda Civic GX
    2000 Honda Civic GX
    1996 Honda Civic HX
    1997 Honda Civic HX
    1998 Honda Civic HX
    1999 Honda Civic HX
    2000 Honda Civic HX
    1988 Honda Civic LX
    1989 Honda Civic LX
    1990 Honda Civic LX
    1991 Honda Civic LX
    1992 Honda Civic LX
    1993 Honda Civic LX
    1994 Honda Civic LX
    1995 Honda Civic LX
    1996 Honda Civic LX
    1997 Honda Civic LX
    1998 Honda Civic LX
    1999 Honda Civic LX
    2000 Honda Civic LX
    1988 Honda Civic RT 4WD
    1989 Honda Civic RT 4WD
    1990 Honda Civic RT 4WD
    1991 Honda Civic RT 4WD
    1989 Honda Civic Si
    1990 Honda Civic Si
    1991 Honda Civic Si
    1992 Honda Civic Si
    1993 Honda Civic Si
    1994 Honda Civic Si
    1995 Honda Civic Si
    1999 Honda Civic Si
    2000 Honda Civic Si
    1992 Honda Civic VX
    1993 Honda Civic VX
    1994 Honda Civic VX
    1995 Honda Civic VX
    1999 Honda Civic Value Package
    1988 Honda Civic Wagovan
    1989 Honda Civic Wagovan
    Honda Civic del Sol
    1993 Honda Civic del Sol S
    1994 Honda Civic del Sol S
    1995 Honda Civic del Sol S
    1996 Honda Civic del Sol S
    1997 Honda Civic del Sol S
    1993 Honda Civic del Sol Si
    1994 Honda Civic del Sol Si
    1995 Honda Civic del Sol Si
    1996 Honda Civic del Sol Si
    1997 Honda Civic del Sol Si
    1994 Honda Civic del Sol VTEC
    1995 Honda Civic del Sol VTEC
    1996 Honda Civic del Sol VTEC
    1997 Honda Civic del Sol VTEC
    Honda Fit
    2007 Honda Fit Base
    2008 Honda Fit Base
    2007 Honda Fit Sport
    2008 Honda Fit Sport
    Honda Prelude
    1992 Honda Prelude S
    1993 Honda Prelude S
    1994 Honda Prelude S
    1995 Honda Prelude S
    1996 Honda Prelude S
    1995 Honda Prelude SE
    1992 Honda Prelude Si
    1993 Honda Prelude Si
    1994 Honda Prelude Si
    1995 Honda Prelude Si
    1996 Honda Prelude Si
    1992 Honda Prelude Si 4WS
    1993 Honda Prelude Si 4WS
    1994 Honda Prelude Si 4WS
    1993 Honda Prelude VTEC
    1994 Honda Prelude VTEC
    1995 Honda Prelude VTEC
    1996 Honda Prelude VTEC

    Engine Fitment

    Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
    Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
    Honda 2.4L/2354CC - 4 Cylinder (K24A8)
    Honda 2.4L/2354CC - 4 Cylinder (K24A2)
    Honda 2.4L/2354CC - 4 Cylinder (K24A2)
    Honda 2.0L/1998CC - 4 Cylinder (K20A2)
    Honda 2.4L/2354CC - 4 Cylinder (K24A1)
    Honda 2.0L/1998CC - 4 Cylinder (K20A3)
    Honda 2.4L/2354CC - 4 Cylinder (K24A4)

    2 Reviews ★★★★★ ★★★★★

    ★★★★★ ★★★★★
    4.5/5.00 Stars out of 2 Reviews
    Write a Review
    1 ★
    0
    2 ★
    0
    3 ★
    0
    4 ★
    1
    5 ★
    1
    Does not clear RSX or DC5R subframe
    ★ ★ ★ ★
    Devindra Mongru | February 26th, 2017
    Does not fit DC5 Type R or RSX without modifying the subframe.
    DOES NOT FIT K24 BOTTOM END WITH DC5 CHASSIS
    ★ ★ ★ ★ ★
    Jetty Sapinoso | October 8th, 2011
    I have an 02 Acura Rsx Type S. K20a2 head, k24a1 block and I have a picture that the moroso oil pan does not clear the subframe. Returning this item unless my friend buys it from me.
