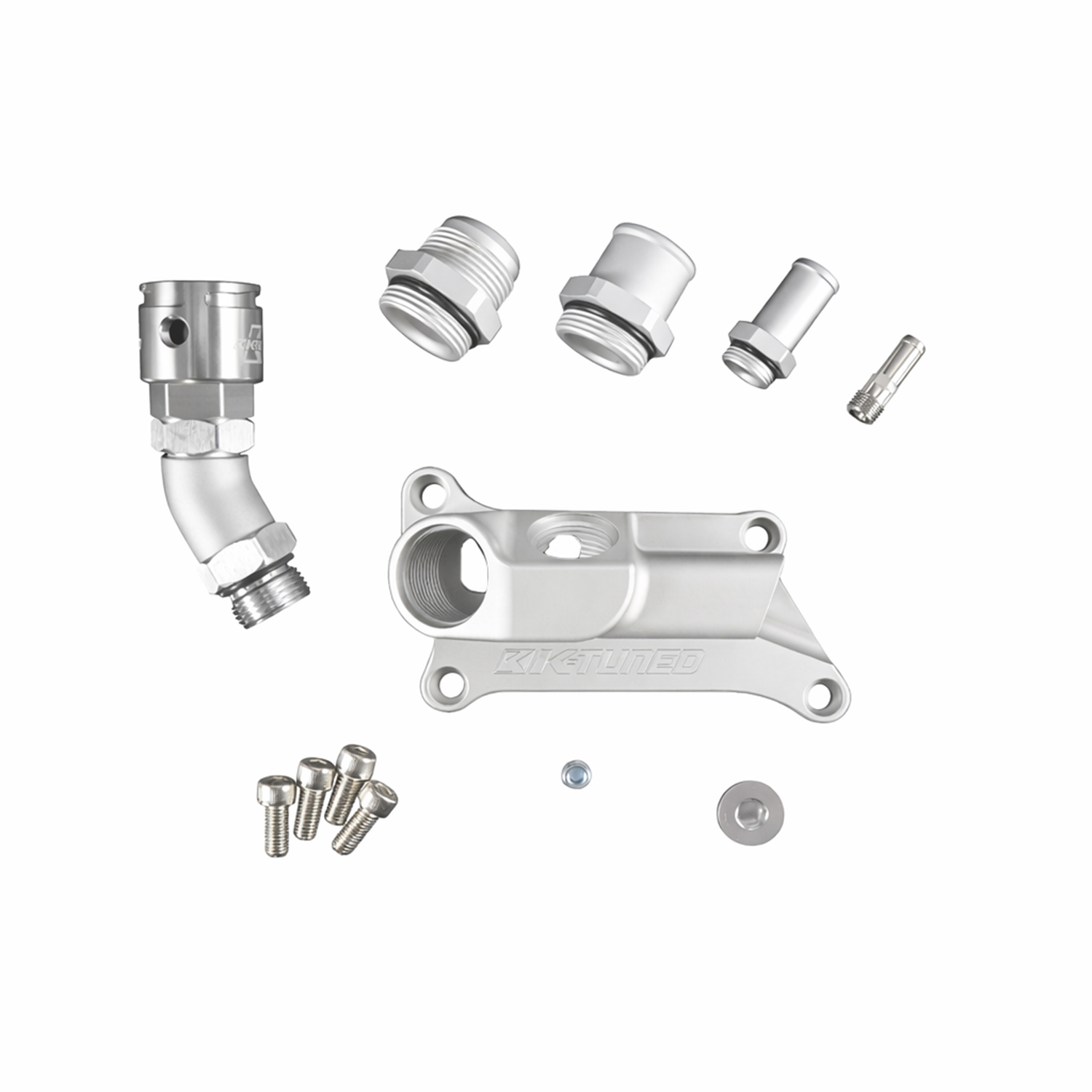

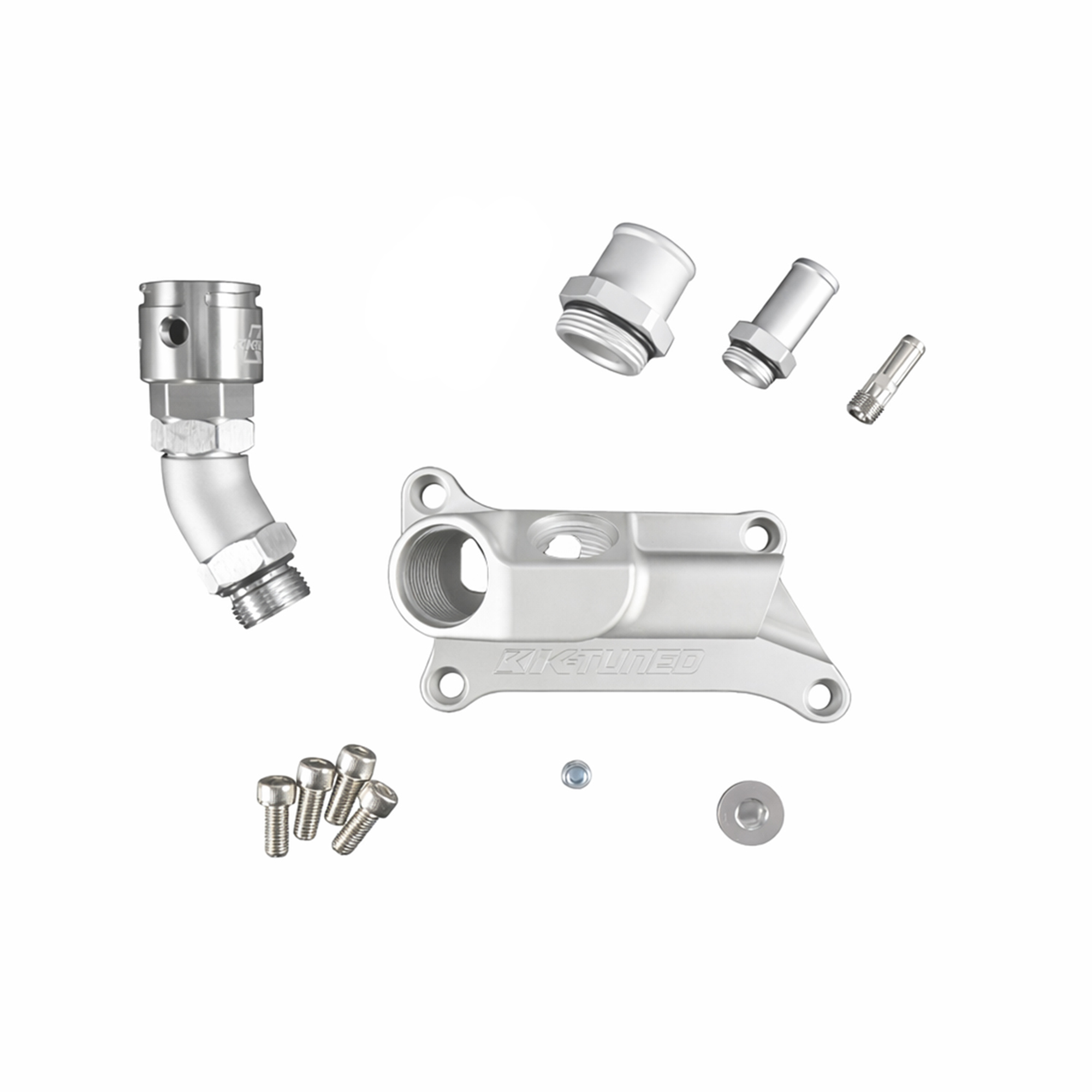

K-Tuned K24/K20Z3 Angled Inlet Upper Coolant Housing with Filler Neck
Part Number: KUW-24C-F04

Images may be for reference only

Product Details

Part Number:	KUW-24C-F04
Brand:	K-Tuned

Here is the K-Tuned Upper Coolant Housing. With applications for both K20 and K24 engines, these housings will provide several unique advantages over the stock units. The hose outlet on the K-Tuned housing pivots slightly, allowing approximately 15 degrees of angle adjustment. This is helpful when compared to the fixed factory outlet that always seems to put the upper rad hose in the path of the intake piping. There are three available hose outlets to work with any radiator hose setup. Choose the standard 1.25" rad hose outlet for use with regular rubber or silicone rad hoses.

We have also designed an optional Filler Neck that can be used to relocate the radiator cap to a higher point on the engine itself. The new location is the highest point of the cooling system and allows air pockets to easily escape during the coolant bleeding process. The optional Filler Neck is also available with standard 1.25" hose or in 16AN sizes and was designed for use with an OEM 92-00 Honda Civic radiator cap. This part will be very helpful on an engine that already has a bad reputation for coolant bleeding.

The K-Tuned Upper Coolant Housing will complement our Swivel Neck Thermostat and our Water Pump Block-off Plate. All of these parts allow plenty of options for custom and race engine cooling setups.

Applications:

K20Z3
K24 heads

Features:

Hose End 1.25

Note:

Will NOT work with K24Z and K24Y Series Engines
Will NOT work with K24A1
May have fitment issues with turbos, depending on the size of the turbo and the manifold
Rad cap is not included
There are fitment issues with the K20 Upper Coolant Housing and Jackson Racing Supercharger

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim
2002	Honda	CR-V	EX
2002	Honda	CR-V	LX
2003	Honda	Accord	DX
2003	Honda	Accord	EX
2003	Honda	Accord	LX
2003	Honda	CR-V	EX
2003	Honda	CR-V	LX
2003	Honda	Element	DX
2003	Honda	Element	EX
2004	Acura	TSX	Base
2004	Honda	Accord	DX
2004	Honda	Accord	EX
2004	Honda	CR-V	EX
2004	Honda	CR-V	LX
2004	Honda	Element	DX
2004	Honda	Element	EX
2004	Honda	Element	LX
2005	Acura	TSX	Base
2005	Honda	Accord	DX
2005	Honda	Accord	EX
2005	Honda	Accord	LX
2005	Honda	Accord	SE
2005	Honda	CR-V	EX
2005	Honda	CR-V	LX
2005	Honda	CR-V	SE
2005	Honda	Element	EX
2005	Honda	Element	LX
2006	Acura	TSX	Base
2006	Honda	Accord	EX
2006	Honda	Accord	LX
2006	Honda	Accord	LX Special Edition
2006	Honda	Accord	Value Package
2006	Honda	CR-V	EX
2006	Honda	CR-V	LX
2006	Honda	CR-V	SE
2006	Honda	Civic	Si
2006	Honda	Element	EX
2006	Honda	Element	LX
2007	Acura	TSX	Base
2007	Honda	Accord	EX-L
2007	Honda	Accord	Special Edition
2007	Honda	Accord	Value Package
2007	Honda	Civic	Si
2007	Honda	Element	EX
2007	Honda	Element	LX
2007	Honda	Element	SC
2008	Acura	TSX	Base
2008	Honda	Civic	MUGEN Si
2008	Honda	Civic	Si
2008	Honda	Element	EX
2008	Honda	Element	LX
2008	Honda	Element	SC
2009	Honda	Civic	Si
2009	Honda	Element	EX
2009	Honda	Element	LX
2009	Honda	Element	SC
2010	Honda	Civic	Si
2010	Honda	Element	EX
2010	Honda	Element	LX
2010	Honda	Element	SC
2011	Honda	Civic	Si
2011	Honda	Element	EX
2011	Honda	Element	LX
