Product Details

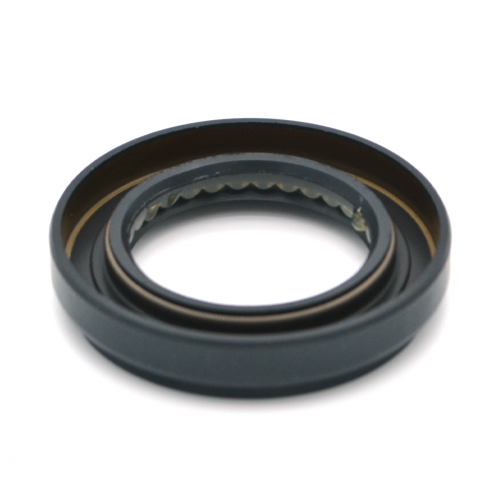

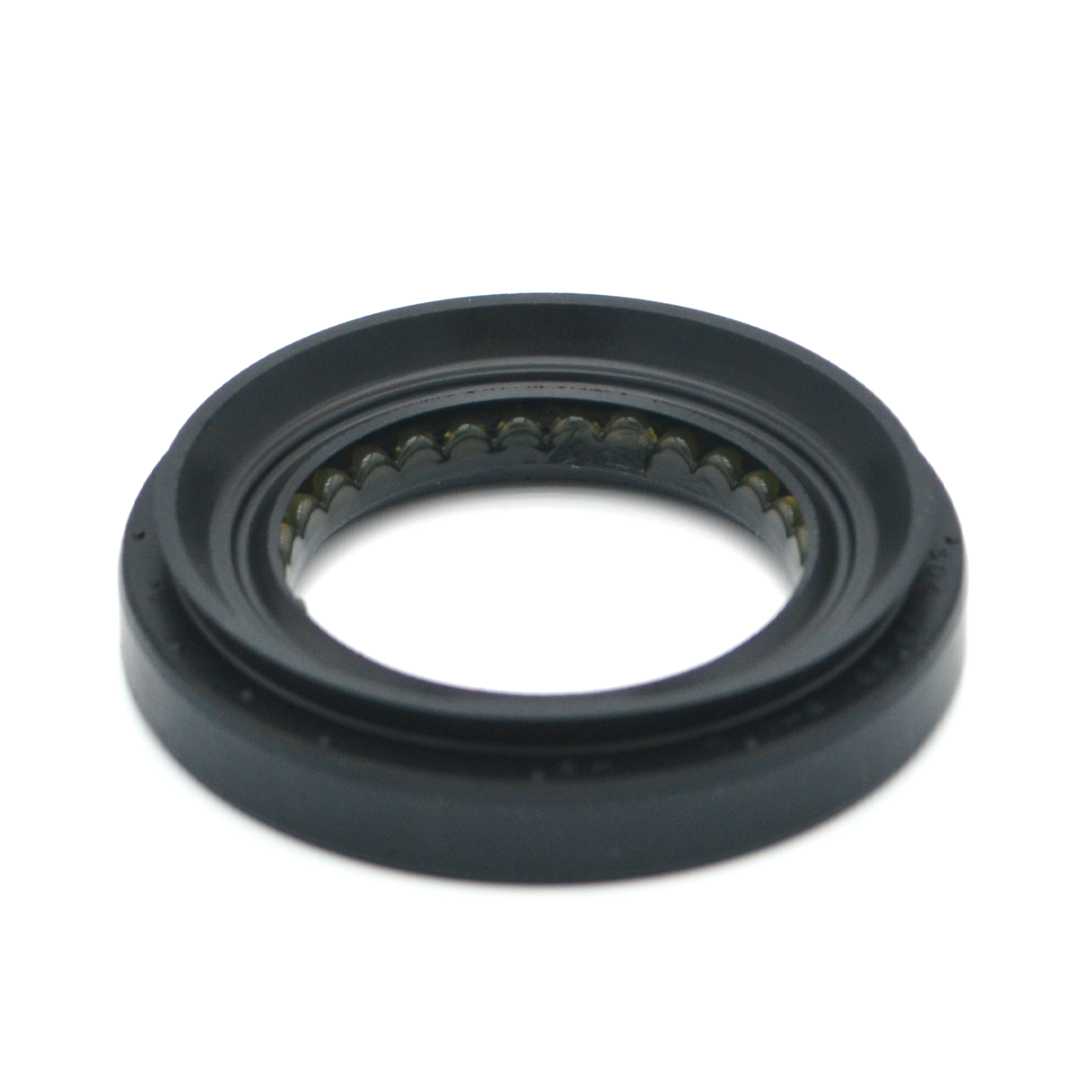

The Honda OEM Transmission Axle Oil Seal is a genuine factory replacement designed to prevent transmission fluid leaks where the axle shaft enters the transmission housing. Manufactured to Honda's original equipment specifications, this precision-engineered seal measures 35mm x 56mm x 8mm and provides dependable sealing performance in compatible Honda and Acura transmission assemblies.
Commonly used in vehicles such as the Honda Civic, Acura Integra, Honda Accord, and first-generation Honda CR-V, this genuine Honda oil seal is an excellent replacement for worn, hardened, or leaking original axle seals.
Transmission axle seals play an essential role in keeping transmission fluid contained while allowing the axle shaft to rotate. The seal creates a barrier between the rotating shaft and the transmission housing, helping maintain proper lubrication and preventing fluid from escaping.
Over time, axle seals can deteriorate from age, heat, normal wear, or damage during axle removal and installation. A leaking transmission axle seal may result in fluid accumulation around the transmission housing, transmission fluid loss, and potentially accelerated wear of internal drivetrain components.
Whether you're replacing a CV axle, repairing a transmission fluid leak, rebuilding a manual transmission, or restoring a Honda drivetrain, this genuine Honda OEM Transmission Axle Oil Seal provides factory-correct dimensions and dependable sealing performance.
Features
- Genuine Honda OEM Part: Authentic factory replacement manufactured to Honda's original equipment specifications.
- Transmission Axle Oil Seal: Designed to help prevent transmission fluid leaks around the axle shaft.
- 35mm Inner Diameter: Factory-specified sealing diameter.
- 56mm Outer Diameter: Designed to fit the corresponding transmission housing opening.
- 8mm Width: Maintains the original factory seal dimensions.
- Direct OEM Replacement: Replaces the original seal where Honda specifies part number 91205-PL3-A01.
- Factory-Correct Fit: Maintains the original transmission sealing configuration.
- Leak Prevention: Helps retain transmission fluid and protect internal drivetrain components.
- Rotating Shaft Seal Design: Allows the axle shaft to rotate while maintaining a fluid barrier.
- Ideal for Axle Replacement: Recommended for inspection whenever a compatible CV axle is removed.
- Transmission Rebuild Friendly: Excellent for manual transmission maintenance, rebuilding, and restoration.
- OEM Replacement Part Numbers: Replaces several earlier Honda transmission oil seal part numbers.
- Sold Individually: Includes one genuine Honda transmission axle oil seal.
- OEM Part Number: 91205-PL3-A01.
Additional Information
- Manufacturer: Honda / Acura
- Part Number: 91205-PL3-A01
- OEM Description: Oil Seal (35x56x8) (Arai)
- Other Names: Transmission Axle Seal / Differential Oil Seal / CV Axle Seal / Transmission Output Shaft Seal / Axle Case Oil Seal
- Product Type: Transmission Oil Seal
- Installation Location: Transmission Axle Output – Application Dependent
- Inner Diameter: 35mm
- Outer Diameter: 56mm
- Width: 8mm
- Seal Manufacturer Designation: Arai
- Quantity: Sold Individually (1 Seal)
Replaces Honda OEM Part Numbers:
- 91205-PL3-A00
- 91205-PL3-A02
- 91205-PX5-000
- 91205-PX5-003
- 91205-PX5-005
- 91206-PE6-003
- 91206-PE6-004
Common Reasons for Replacement
Transmission axle seals should be inspected whenever the CV axle is removed or the transmission is serviced.
- Transmission fluid leaking around the CV axle
- Oil accumulation near the transmission output
- Hardened or deteriorated sealing material
- Cracked or damaged seal lip
- Damage during axle removal
- Worn or improperly installed original seal
- CV axle replacement
- Differential or transmission service
- Manual transmission rebuilding
- High-mileage drivetrain maintenance
- Engine and transmission swap preparation
- Replacing a worn transmission axle seal helps restore proper fluid retention and may prevent damage caused by operating the transmission with insufficient lubrication.
Installation Notes
- Proper installation is essential for preventing transmission fluid leaks and ensuring dependable seal performance.
- Before installation, remove the axle shaft according to the Honda factory service manual.
- Inspect the axle shaft sealing surface for scratches, grooves, corrosion, or excessive wear.
- Carefully remove the original transmission oil seal without damaging the surrounding transmission housing.
- Clean the seal bore and remove any accumulated debris or damaged sealing material.
- Apply the appropriate lubricant to the new seal lip as directed by the factory service procedure.
- Using a suitable seal installation tool, carefully install the new Honda OEM seal squarely into the transmission housing.
- Important: Install the seal in the correct orientation and to the factory-specified depth. Improper installation can damage the seal or cause transmission fluid leakage.
- Avoid striking the seal directly with metal tools or applying uneven pressure during installation.
- Reinstall the axle shaft carefully to prevent damaging the new sealing lip.
- After installation, verify the transmission fluid level and inspect the serviced area for leaks.
Note:
- Includes one genuine Honda OEM Transmission Axle Oil Seal (35x56x8mm). CV axles, transmission fluid, axle retaining hardware, and additional seals are sold separately unless otherwise specified.
For Honda and Acura enthusiasts repairing transmission leaks, replacing CV axles, rebuilding a gearbox, or restoring a factory drivetrain, this genuine Honda OEM Transmission Axle Oil Seal delivers factory-correct dimensions and reliable sealing performance.
| Part Number: | 91205-PL3-A01 |
| Brand: | Honda |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1988 | Honda | CRX | DX |
| 1988 | Honda | CRX | Si |
| 1988 | Honda | Civic | Base |
| 1988 | Honda | Civic | DX |
| 1988 | Honda | Civic | LX |
| 1988 | Honda | Civic | RT 4WD |
| 1988 | Honda | Civic | Wagovan |
| 1989 | Honda | CRX | Base |
| 1989 | Honda | CRX | Si |
| 1989 | Honda | Civic | Base |
| 1989 | Honda | Civic | DX |
| 1989 | Honda | Civic | LX |
| 1989 | Honda | Civic | RT 4WD |
| 1989 | Honda | Civic | Si |
| 1989 | Honda | Civic | Wagovan |
| 1990 | Honda | CRX | Base |
| 1990 | Honda | CRX | Si |
| 1990 | Honda | Civic | Base |
| 1990 | Honda | Civic | DX |
| 1990 | Honda | Civic | EX |
| 1990 | Honda | Civic | LX |
| 1990 | Honda | Civic | RT 4WD |
| 1990 | Honda | Civic | Si |
| 1991 | Honda | CRX | Base |
| 1991 | Honda | CRX | Si |
| 1991 | Honda | Civic | Base |
| 1991 | Honda | Civic | DX |
| 1991 | Honda | Civic | EX |
| 1991 | Honda | Civic | LX |
| 1991 | Honda | Civic | RT 4WD |
| 1991 | Honda | Civic | Si |
| 1992 | Honda | Civic | DX |
| 1992 | Honda | Civic | EX |
| 1992 | Honda | Civic | LX |
| 1992 | Honda | Civic | Si |
| 1993 | Honda | Civic del Sol | S |
| 1993 | Honda | Civic del Sol | Si |
| 1993 | Honda | Civic | DX |
| 1993 | Honda | Civic | EX |
| 1993 | Honda | Civic | LX |
| 1993 | Honda | Civic | Si |
| 1994 | Honda | Civic del Sol | S |
| 1994 | Honda | Civic del Sol | Si |
| 1994 | Honda | Civic | DX |
| 1994 | Honda | Civic | EX |
| 1994 | Honda | Civic | LX |
| 1994 | Honda | Civic | Si |
| 1995 | Honda | Civic del Sol | S |
| 1995 | Honda | Civic del Sol | Si |
| 1995 | Honda | Civic | DX |
| 1995 | Honda | Civic | EX |
| 1995 | Honda | Civic | LX |
| 1995 | Honda | Civic | Si |
| 1996 | Honda | Civic del Sol | S |
| 1996 | Honda | Civic del Sol | Si |
| 1996 | Honda | Civic del Sol | VTEC |
| 1996 | Honda | Civic | CX |
| 1996 | Honda | Civic | DX |
| 1996 | Honda | Civic | EX |
| 1996 | Honda | Civic | LX |
| 1997 | Honda | CR-V | LX |
| 1997 | Honda | Civic del Sol | S |
| 1997 | Honda | Civic del Sol | Si |
| 1997 | Honda | Civic del Sol | VTEC |
| 1997 | Honda | Civic | CX |
| 1997 | Honda | Civic | DX |
| 1997 | Honda | Civic | EX |
| 1997 | Honda | Civic | LX |
| 1998 | Acura | CL | Base |
| 1998 | Acura | CL | Premium |
| 1998 | Honda | CR-V | EX |
| 1998 | Honda | CR-V | LX |
| 1998 | Honda | Civic | CX |
| 1998 | Honda | Civic | DX |
| 1998 | Honda | Civic | EX |
| 1998 | Honda | Civic | LX |
| 1998 | Honda | Odyssey | EX |
| 1998 | Honda | Odyssey | LX |
| 1999 | Acura | CL | Premium |
| 1999 | Honda | Civic | CX |
| 1999 | Honda | Civic | DX |
| 1999 | Honda | Civic | EX |
| 1999 | Honda | Civic | LX |
| 1999 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 2000 | Honda | Accord | SE |
| 2000 | Honda | Civic | CX |
| 2000 | Honda | Civic | DX |
| 2000 | Honda | Civic | EX |
| 2000 | Honda | Civic | LX |
| 2000 | Honda | Civic | Si |
| 2000 | Honda | Insight | Base |
| 2001 | Honda | Insight | Base |
| 2002 | Honda | Insight | Base |
| 2003 | Honda | Civic | Hybrid |
| 2003 | Honda | Insight | Base |
| 2004 | Honda | Civic | Hybrid |
| 2004 | Honda | Insight | Base |
| 2005 | Honda | Civic | Hybrid |
| 2005 | Honda | Insight | Base |
| 2006 | Honda | Civic | DX |
| 2006 | Honda | Civic | EX |
| 2006 | Honda | Civic | GX |
| 2006 | Honda | Civic | LX |
| 2006 | Honda | Insight | Base |
| 2007 | Honda | Civic | DX |
| 2007 | Honda | Civic | EX |
| 2007 | Honda | Civic | GX |
| 2007 | Honda | Civic | LX |
| 2008 | Honda | Civic | DX |
| 2008 | Honda | Civic | EX |
| 2008 | Honda | Civic | GX |
| 2008 | Honda | Civic | LX |
| 2009 | Honda | Civic | DX |
| 2009 | Honda | Civic | EX |
| 2009 | Honda | Civic | EX-L |
| 2009 | Honda | Civic | GX |
| 2009 | Honda | Civic | LX |
| 2009 | Honda | Civic | LX-S |
| 2010 | Honda | Civic | DX |
| 2010 | Honda | Civic | EX |
| 2010 | Honda | Civic | EX-L |
| 2010 | Honda | Civic | GX |
| 2010 | Honda | Civic | LX |
| 2010 | Honda | Civic | LX-S |
| 2011 | Honda | Civic | DX |
| 2011 | Honda | Civic | EX |
| 2011 | Honda | Civic | EX-L |
| 2011 | Honda | Civic | GX |
| 2011 | Honda | Civic | LX |
| 2011 | Honda | Civic | LX-S |
| 2012 | Honda | Civic | GX |
| 2013 | Honda | Civic | Natural Gas |
| 2014 | Honda | Civic | Natural Gas |
| 2015 | Honda | Civic | Natural Gas |
