Product Details

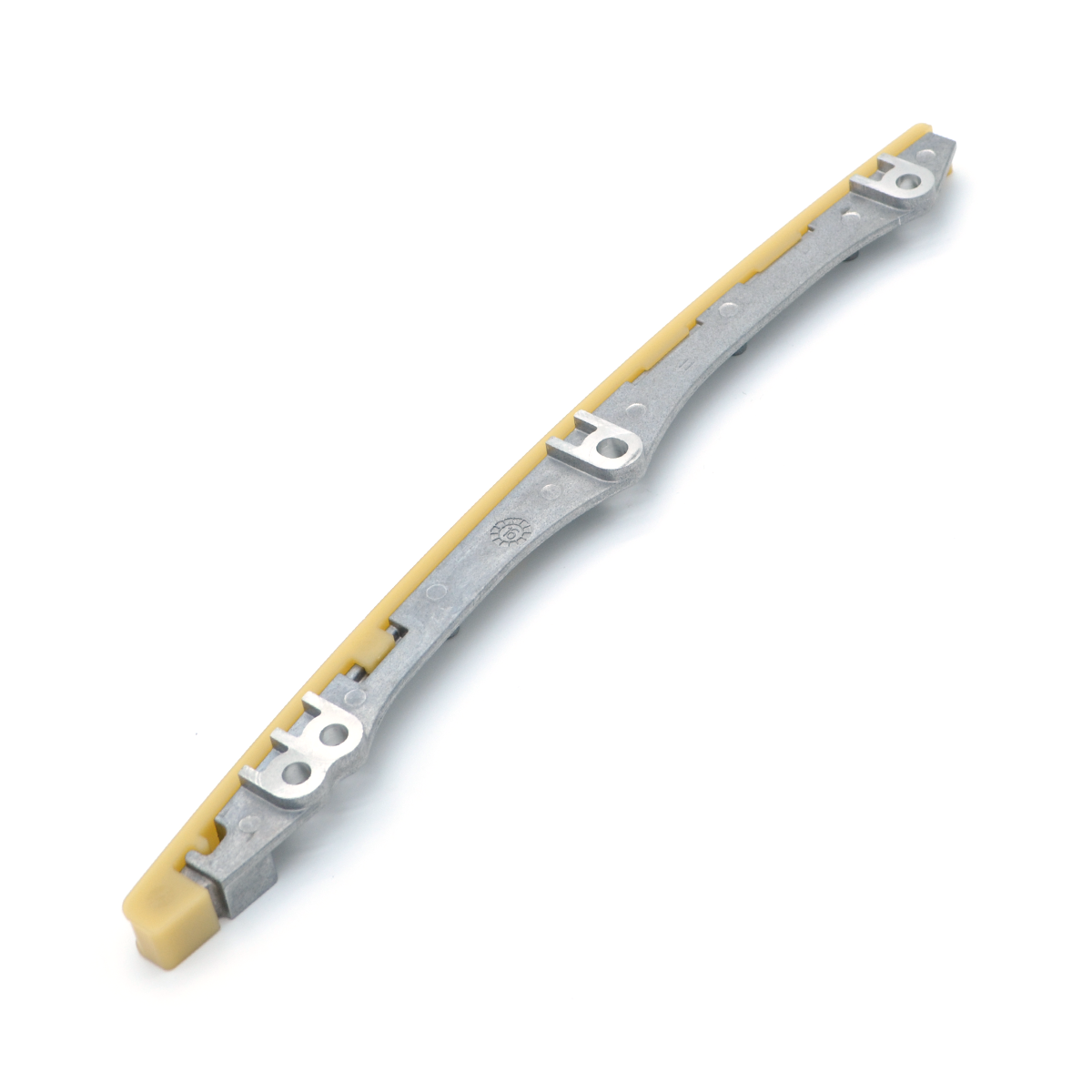

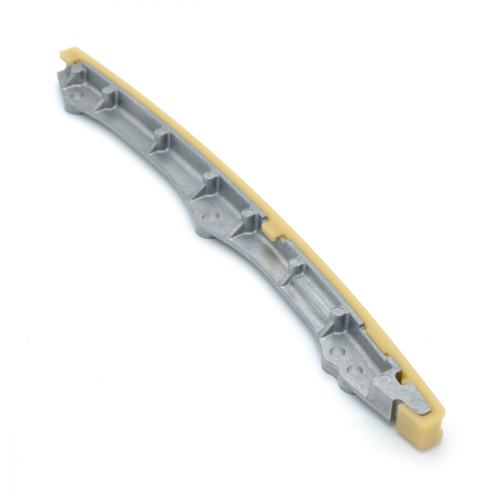

The Honda OEM Timing Chain Guide is a genuine factory replacement designed for the 2002-2006 Acura RSX and 2002-2011 Honda Civic Si equipped with K20 engines. This guide helps maintain proper timing chain alignment, reduce excessive chain movement, and support accurate camshaft timing for reliable engine operation.
Over time, timing chain guides can wear, crack, or develop grooves from continuous contact with the timing chain. A worn guide may contribute to timing chain noise, excessive vibration, and premature wear of related components.
Manufactured to Honda's original equipment specifications, this guide provides precise fitment and dependable durability. It's an excellent replacement during timing chain maintenance, K20 engine rebuilds, and compatible K-Series performance builds.
Features
- Genuine Honda OEM Part: Factory-quality construction and precise fitment.
- Maintains Chain Alignment: Helps keep the timing chain properly positioned during operation.
- Reduces Chain Movement: Provides a controlled contact surface to minimize excessive chain vibration and wear.
- Direct Factory Replacement: Replaces the original timing chain guide on compatible K20 engines.
- Durable Construction: Designed to withstand engine heat and continuous timing chain operation.
- Lower Timing Chain Guide: Designed for the factory lower guide position.
- Engine Rebuild Essential: Ideal for timing system servicing and complete engine rebuilds.
- OEM Part Number: 14530-PNA-003.
Additional Information
- Manufacturer: Honda / Acura
- Part Number: 14530-PNA-003
- OEM Description: Guide, Cam Chain
- Product Type: Timing Chain Guide / Lower Cam Chain Guide
- Compatible Engines: K20A2 / K20A3 / K20Z1 / K20Z3
- Installation Location: Engine Timing Chain Assembly
- Quantity: Sold Individually
Installation Notes
- Inspect the timing chain, tensioner arm, hydraulic tensioner, and sprockets for wear or damage before installation. Follow Honda's factory service manual procedures to ensure proper timing chain alignment and secure mounting.
Note:
- Includes one genuine Honda timing chain guide. Timing chain, tensioner arm, hydraulic tensioner, sprockets, mounting hardware, and additional components are sold separately unless otherwise specified.
For K20/K24 hybrid builds or custom K-Series applications, verify compatibility with your specific engine and timing chain configuration before ordering. This component is the stationary timing chain guide, not the tensioner arm or hydraulic tensioner.
| Part Number: | 14530-PNA-003 |
| Brand: | Honda |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | Civic | Si |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Civic | Si |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Honda | Civic | Si |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Honda | Civic | Si |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Honda | Civic | Si |
| 2007 | Honda | Civic | Si |
| 2008 | Honda | Civic | MUGEN Si |
| 2008 | Honda | Civic | Si |
| 2009 | Honda | Civic | Si |
| 2010 | Honda | Civic | Si |
| 2011 | Honda | Civic | Si |
