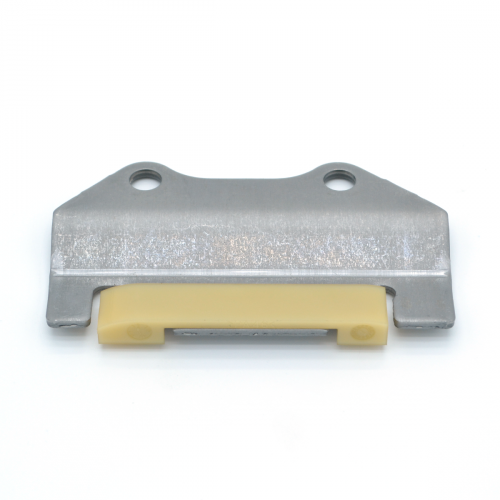

Honda K20A/K24A Top Cam Chain Guide
Part Number: 14540-PRB-A01

Images may be for reference only

Product Details

The Honda OEM Upper Timing Chain Guide is a genuine factory replacement designed for select Honda and Acura K20 and K24 engines. Located at the top of the timing chain assembly, this guide helps maintain proper chain alignment, reduce excessive movement, and support accurate camshaft timing for reliable engine operation.

Over time, timing chain guides can wear or deteriorate from continuous engine operation, heat, and friction. A worn guide may contribute to timing chain noise and premature wear of related timing components.

Manufactured to Honda's original equipment specifications, this upper guide provides precise fitment and dependable durability. It's an excellent replacement during timing chain maintenance, K-Series engine rebuilds, and compatible engine swaps.

Features

Genuine Honda OEM Part: Factory-quality construction and precise fitment.
Upper Timing Chain Guide: Designed for the top position of the camshaft timing chain assembly.
Maintains Chain Alignment: Helps keep the timing chain properly positioned during operation.
Reduces Chain Movement: Provides a controlled contact surface to minimize excessive chain vibration and wear.
Direct Factory Replacement: Replaces the original upper timing chain guide on compatible engines.
Durable Construction: Engineered to withstand engine heat and continuous operation.
K-Series Compatibility: Fits select K20 and K24 engine configurations.
OEM Part Number: 14540-PRB-A01.

Additional Information

Manufacturer: Honda / Acura
Part Number: 14540-PRB-A01
OEM Description: Guide B, Cam Chain
Product Type: Upper Timing Chain Guide
Compatible Engines: Select K20 / K24 Engines
Replaces: 14540-PNA-003
Installation Location: Upper Camshaft Timing Chain Assembly
Quantity: Sold Individually

Installation Notes

Inspect the timing chain, tensioner, lower guides, and sprockets for wear or damage before installation. Follow Honda's factory service manual procedures to ensure proper chain alignment and secure mounting.

Note:

Includes one genuine Honda upper timing chain guide. Timing chain, tensioner, side guides, sprockets, mounting hardware, and additional components are sold separately unless otherwise specified.

For K20/K24 hybrid builds or custom K-Series applications, verify compatibility with your specific engine and timing chain configuration before ordering.

Part Number:	14540-PRB-A01
Brand:	Honda

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim
2002	Acura	RSX	Base
2002	Acura	RSX	Type-S
2002	Honda	CR-V	EX
2002	Honda	CR-V	LX
2002	Honda	Civic	Si
2003	Acura	RSX	Base
2003	Acura	RSX	Type-S
2003	Honda	Accord	DX
2003	Honda	Accord	EX
2003	Honda	Accord	LX
2003	Honda	CR-V	EX
2003	Honda	CR-V	LX
2003	Honda	Civic	Si
2004	Acura	RSX	Base
2004	Acura	RSX	Type-S
2004	Acura	TSX	Base
2004	Honda	Accord	DX
2004	Honda	Accord	EX
2004	Honda	Accord	LX
2004	Honda	CR-V	EX
2004	Honda	CR-V	LX
2004	Honda	Civic	Si
2005	Acura	RSX	Base
2005	Acura	RSX	Type-S
2005	Acura	TSX	Base
2005	Honda	Accord	DX
2005	Honda	Accord	EX
2005	Honda	Accord	Hybrid
2005	Honda	Accord	LX
2005	Honda	Accord	SE
2005	Honda	CR-V	EX
2005	Honda	CR-V	LX
2005	Honda	CR-V	SE
2005	Honda	Civic	Si
2006	Acura	RSX	Base
2006	Acura	RSX	Type-S
2006	Acura	TSX	Base
2006	Honda	Accord	EX
2006	Honda	Accord	Hybrid
2006	Honda	Accord	LX
2006	Honda	Accord	LX Special Edition
2006	Honda	Accord	Value Package
2006	Honda	CR-V	EX
2006	Honda	CR-V	LX
2006	Honda	CR-V	SE
2007	Acura	TSX	Base
2007	Honda	Accord	EX
2007	Honda	Accord	EX-L
2007	Honda	Accord	Hybrid
2007	Honda	Accord	LX
2007	Honda	Accord	Special Edition
2007	Honda	Accord	Value Package
