Rev9Power 02-06 RSX Turbo Kit-A1

Rev9Power 02-06 RSX Turbo Kit

Part Number: TCK-001

2 out of 52 out of 52 out of 52 out of 52 out of 5 2 customer reviews
$1,343.29 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 2687 reward points. Learn More

Out of Stock


02-06 Acura RSX ( Type-S and non Type-S ) T3T4 turbo charger kit


- 02-06 ( 2002 2003 2004 2005 2006 ) ACURA RSX (TYPE-S OR NON TYPE-S )
- 03-05 ( 2003 2004 2005 ) CIVIC HATCHBACK EP3 (require cutting / modified intercooler piping )
- 06-11 (2006 2007 2008 2009 2010 2011 ) CIVIC SI K20 MOTOR (require cutting / modified intercooler piping )

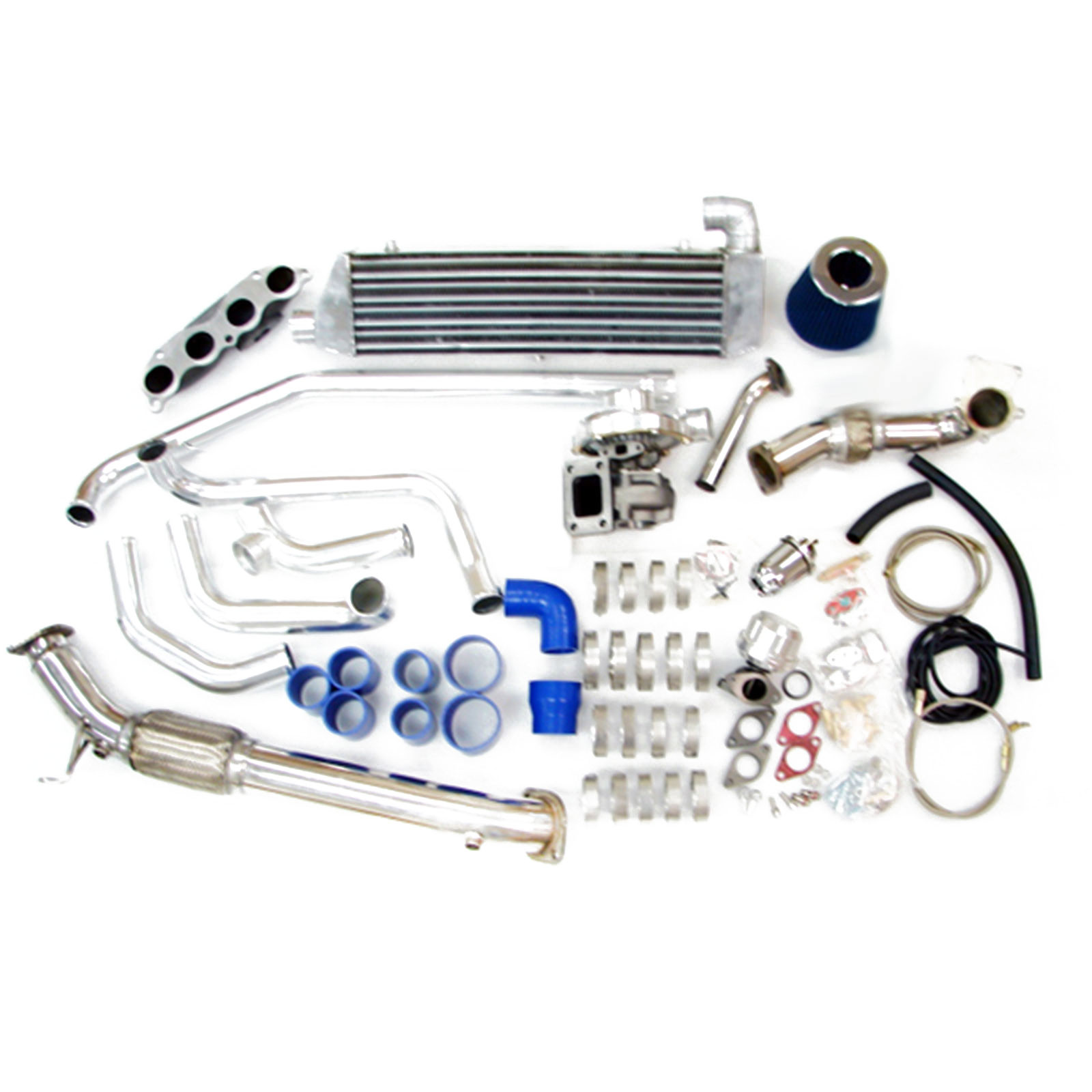

This turbo kit includes:
- K20a cast manifold
- direct bolt on aluminum intercooler piping for rsx ( with silicones and clamps )
- intercooler
- T3T4 hybrid turbo charger 57 TRIM
- 38mm waste gate (7psi)
- SSQV blow off valve
- intake piping and intake cone
- waste gate dump tube
- oil feed line, and oil return line kit
- stainless turbo elbow
- 3" stainless turbo down pipe

This includes all the hardware. All you would need is an ecu upgrade and bigger injectors and a high flow fuel pump.

this is the best value kit out there when compared to Greddy, etc. This includes all the bolt on pieces.


T3T4 turbo
Intake: 3 inch
Inlet: 2 inch
Compressor trim: .50
Compressor Wheel diameter: 50.16 / 76.84
Turbine Wheel diameter: 54.06 / 65.20
Exhaust Trim: .57
Turbine flange type : T3 flange
Down pipe flange type: 5 bolt standard
Cooling type: oil cool only
Horsepower rating: 350+

1 year warranty (must be installed by certified mechanic)

Images may be for reference only


Brand: Rev9Power
Part Number: TCK-001

Customer Reviews

2.0 out of 5.0 2 out of 52 out of 52 out of 52 out of 52 out of 5

2 Total Reviews

Add Your Review

Most Recent

3.0 out of 5.0 3 out of 53 out of 53 out of 53 out of 53 out of 5

It's ok

By Nicholas Rivera on 4/15/2017

It's definitely better than directly buying from eBay, few issues. Had missing parts, couplers, bolt studs for turbo, some other hardware. The other dude who commented was pretty upset about that I definitely agree however I wouldn't let that affect my thoughts on this being a really bad option. The piping I received for the intercooler and all that fits okay it's not horrible. One thing everyone's gotta understand is that no turbo kit for an Rsx will ever be straight plug and play, things are not guaranteed to fit 98% of the time there will be something that needs budging or repositioning. Overall decent kit for the money but needs more work.

1.0 out of 5.0 1 out of 51 out of 51 out of 51 out of 51 out of 5

Do not under any circumstances buy this kit

By Joshua Collins on 4/7/2017

There is so much to complain about this kit. Lets start with the fact that there was no bolts supplies to mount the turbo onto the manifold. After contacting Rev9 themselves, they did not even know the thread pitch. The fitment once installed was trash, there is no room what so ever to even put on the charge pipe, I had to end up ordering a new turbo manifold. The quality of all the parts is mediocre at best, it is cheap Chinese aluminum. The turbo itself is on the lower end, and I do not expect it to last long before I have to change it. I would not recommend this kit to my worst enemy, if you want to waste money then go ahead and buy this kit. I am furious that I wasted the money on this kit, but guess that is what I get for not completly researching this kit for my 03 rsx. STAY AWAY

Read All 2 Reviews
