Product Details
Part Number: | 368-05-0100 |
Brand: | Skunk2 |
UPC: | 841150911804 |

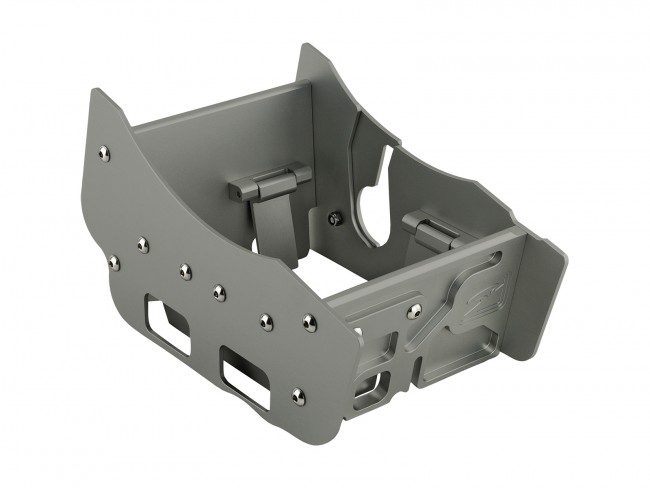

The Skunk2 Racing K-Series Billet Drop-in Oil Pan Baffle is for the serious hardcore racer. The baffle easily installs onto an existing K20A/K20A2/K20Z1 OEM Honda/Acura Oil Pan. The baffle sits flush with the oil pan floor and essentially "Boxes In" the Oil Sump Arm thus preventing Oil Sloshing/Oil Starvation under intense cornering, braking, and accelerating. Furthermore, the dividers and trap doors section off the sump to keep oil from moving aggressively from one side of the pan to the other. Another added feature is the open top design that allows an adequate amount of oil flow back to the pan. The design is simple and effective yet allows continuous oil pick-up where critical engine lubrication is maintained.
Features:
- Prevents oil starvation under heavy cornering, braking, and acceleration
- Easy drop-in design
- Cost Effective Oil Control Solution
- 6061-T6 Aluminum Construction
- Fits engines using K20A/A2/Z1 Oil Pump and Pan
- Direct drop-in fitment for JDM K20A (DC5/EP3 Type-R), K20A2 (02-04 RSX Type-S), K20Z1 (05-06 RSX Type-S) engines
K-series Engine Compatibility Notes:
- The Skunk2 Billet Drop-in Baffle is a direct bolt-in application for the JDM DC5/EP3 K20A Type-R Engine as well as the USDM 02-04 K20A2 and 05-06 K20Z1 Acura RSX Type-S engines. It is compatible with other K-series engines as long as they are installed with following parts:
- RSX Type-S (K20A2) Oil Pan: Acura/Honda Part Number: 1200-PRB-000
- RSX Type-S (K20A2) Oil Pump: Acura/Honda Part Number: 15100-PRB-A01
- RSX Type-S (K20A2) Chain: Acura/Honda Part Number: 13441-PCX-004
- RSX Type-S (K20A2) Chain Guide: Acura/Honda Part Number: 13460-PNC-004
APPLICATIONS:
- USDM 02-04 RSX Type-S (K20A2)
- USDM 05-06 RSX Type-S (K20Z1)
- JDM K20A Engines (EP3 Civic/DC5 Integra Type-R)
- UKDM K20A2 Engines (EP3 Civic Type-R)
- Will fit other Honda K-Series with all of the following modifications:
- RSX Type-S (K20A2) Oil Pan: Acura/Honda Part Number: 1200-PRB-000
- RSX Type-S (K20A2) Oil Pump: Acura/Honda Part Number: 15100-PRB-A01
- RSX Type-S (K20A2) Chain: Acura/Honda Part Number: 13441-PCX-004
- RSX Type-S (K20A2) Chain Guide: Acura/Honda Part Number: 13460-PNC-004
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
Acura RSX
2002 Acura RSX Manual
2003 Acura RSX Manual
2004 Acura RSX Manual
2005 Acura RSX Manual
2006 Acura RSX Manual
2002 Acura RSX Type-S
2003 Acura RSX Type-S
2004 Acura RSX Type-S
2005 Acura RSX Type-S
2006 Acura RSX Type-S
Honda Civic
2002 Honda Civic Si Hatchback
2003 Honda Civic Si Hatchback
2004 Honda Civic Si Hatchback
2005 Honda Civic Si Hatchback
