Product Details
| Part Number: | 20-0792-00 |
| Brand: | Radium Engineering |

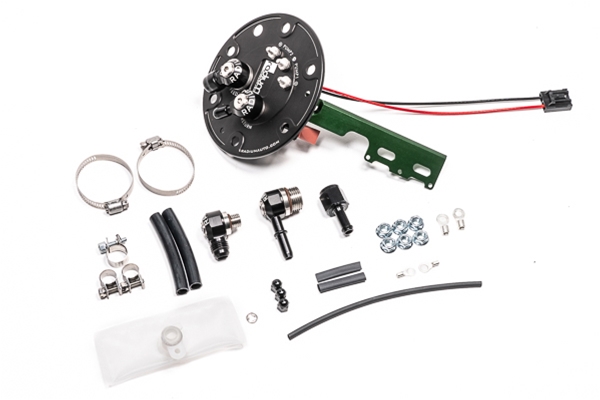

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. The fuel pump is positioned in the factory collector bowl for fuel starvation protection.
The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.
- Preinstalled -6AN male fitting permits an aftermarket feed line.
- 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
- SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.
The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.
- Preinstalled 6.5mm barbed fitting permits the OEM return line to be reused. NOTE: 96-01 Integra and 96-00 Civic require the OEM return hose to be extended.
- Provided -6AN male fitting permits an aftermarket return line.
All fittings are machined low enough to clear the fuel pump access cover.
Fuel Pumps
- Walbro F90000267
- Walbro F90000274
- Walbro F90000285
- Walbro F90000295 (Does not have a check valve, Radium 20-1534 is required. Cannot be used on the second pump.)
Electrical
The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
- Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
- It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1992 | Honda | Civic | CX |
| 1992 | Honda | Civic | DX |
| 1992 | Honda | Civic | EX |
| 1992 | Honda | Civic | LX |
| 1992 | Honda | Civic | Si |
| 1992 | Honda | Civic | VX |
| 1993 | Honda | Civic | CX |
| 1993 | Honda | Civic | DX |
| 1993 | Honda | Civic | EX |
| 1993 | Honda | Civic | LX |
| 1993 | Honda | Civic | Si |
| 1993 | Honda | Civic | VX |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1994 | Honda | Civic | CX |
| 1994 | Honda | Civic | DX |
| 1994 | Honda | Civic | EX |
| 1994 | Honda | Civic | LX |
| 1994 | Honda | Civic | Si |
| 1994 | Honda | Civic | VX |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Civic | CX |
| 1995 | Honda | Civic | DX |
| 1995 | Honda | Civic | EX |
| 1995 | Honda | Civic | LX |
| 1995 | Honda | Civic | Si |
| 1995 | Honda | Civic | VX |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Civic | CX |
| 1996 | Honda | Civic | DX |
| 1996 | Honda | Civic | EX |
| 1996 | Honda | Civic | HX |
| 1996 | Honda | Civic | LX |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | Civic | CX |
| 1997 | Honda | Civic | DX |
| 1997 | Honda | Civic | EX |
| 1997 | Honda | Civic | HX |
| 1997 | Honda | Civic | LX |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1998 | Honda | Civic | CX |
| 1998 | Honda | Civic | DX |
| 1998 | Honda | Civic | EX |
| 1998 | Honda | Civic | GX |
| 1998 | Honda | Civic | HX |
| 1998 | Honda | Civic | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | Civic | CX |
| 1999 | Honda | Civic | DX |
| 1999 | Honda | Civic | EX |
| 1999 | Honda | Civic | GX |
| 1999 | Honda | Civic | HX |
| 1999 | Honda | Civic | LX |
| 1999 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | Civic | CX |
| 2000 | Honda | Civic | DX |
| 2000 | Honda | Civic | EX |
| 2000 | Honda | Civic | GX |
| 2000 | Honda | Civic | HX |
| 2000 | Honda | Civic | LX |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
