Radium Engineering 17-21 Civic Type R Port Injection Kit
Part Number: 20-0428

Images may be for reference only

Product Details

Part Number:	20-0428
Brand:	Radium Engineering
Color:	Black

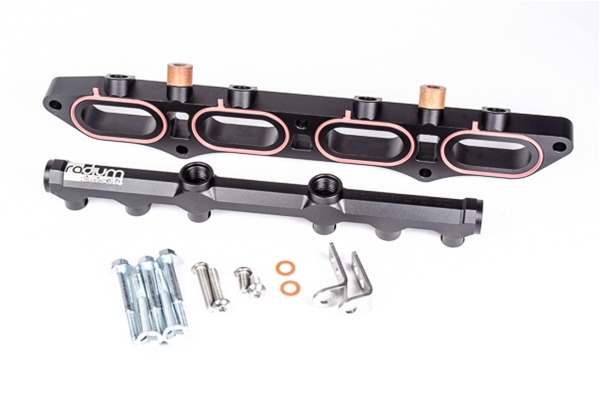

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower modified K20C1 engines, commonly found in the FK8 Civic Type-R. This does NOT replace the OEM direct injection system. The kit includes the PIK adapter plate, custom fuel rail, fuel rail mounting hardware, and OEM Honda gaskets, as shown in the below picture. It is compatible with all fuel types including popular alcohol mixtures such as E85.

Machined phenolic mounting spacers and washers are included
Features a large 0.63" internal diameter bore
CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish
All 4 ports are machined with an 8AN ORB (3/4-16 female) threads
Note that the 2 top fuel rail ports will need to be plugged with 14-0150 unless the plastic OEM wiring harness carrier is modified
The injectors are at a specific angle to ensure proper spray into the intake ports
This kit is designed for specific top feed fuel injectors with upper and lower O-ring spacing
The upper and lower injector O-rings must be 14mm diameter.

Note: Fuel injectors, port fittings, fuel hose, wiring, injector controller, etc. are NOT included and must be sourced elsewhere.

Note: Because the PIK will space the intake manifold off the head, a custom throttle body pipe will need to be fabricated. Alternatively, 2.5"-2.25" ID Silicone Coupler can be used with OEM throttle body pipe.

Below are some of the many fuel injectors that are a direct fitment when using the upper holes of the mounting brackets (48mm height injectors).
