Product Details
| Part Number: | PLM-RD-TCK-XL |
| Brand: | Private Label |

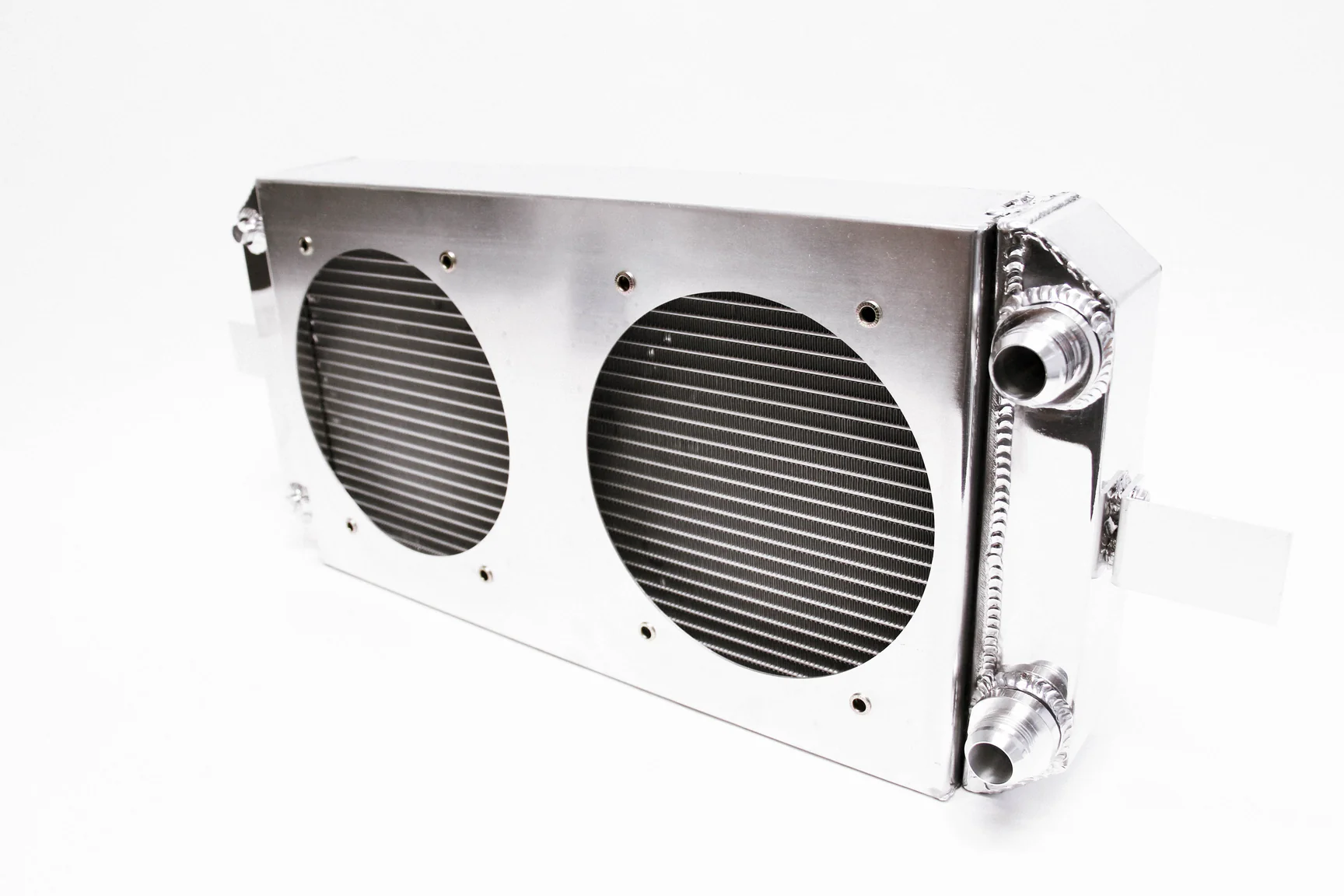

Introducing the PLM Power Driven Tucked Radiator XL for Honda and Acura vehicles. From the successful introduction of our tucked radiator, we are pleased to offer the XL (extra large) version of this radiator for those in need of increased cooling capacity.
Designed to be a direct replacement for your factory radiator, our Tucked Radiator XL is the perfect upgrade for those looking to maximize engine cooling efficiency. The radiator features a slim design that allows for additional clearance in tight engine bays, while the high-quality aluminum construction ensures durability and longevity.
We take pride in providing the best value for our customers, and the PLM Power Driven Tucked Radiator XL is no exception. This radiator offers superior performance at an unbeatable price point and is compatible with both manual and automatic transmissions.
Why is ours better? Our design uses threaded inlet and outlet fittings, which means you can use AN-sized or clamp-on style hoses. You can even use other adapter sizes, such as 16AN to 20AN fitting. Our mounting brackets are not welded to the core, so you can flip the brackets around or adjust them for a more universal fit.
A must-have if you want to utilize all the engine space and tuck the radiator underneath the radiator support.
Includes:
- 2 x 16AN fittings.
- 2 x slip-on fittings.
- Mounting brackets
- Brackets hardware
Features
- Size: 24" x 11.5" x 4.0" (without fans)
- Size: 24" x 11.5" x 5.5" (with fans)
- SPAL fans on this XL version use the 9-inch size, so it is much larger and flows more cfm!
- Overall length: 30.5" with end brackets.
- Core thickness is 2.25" and the end tanks are 3" thick.
- Mounting brackets are removable & bolted on, so it can be used for other applications.
- Drain plug size is 1/4NPT.
Compatible Vehicles
- Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
- Honda Acura K-Series K20 K24 K20A K20Z
- May also fit other cars (refer to size dimension above)
Installation Notes
- If you use it for other universal applications, it is strongly recommended that you use a set of rubber grommets for vibration isolation. Excessive vibration on the bracket and/or mounting holes can cause breakage.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1988 | Honda | Prelude | 2.0 Si |
| 1988 | Honda | Prelude | 2.0 Si 4WS |
| 1989 | Honda | Prelude | 2.0 Si |
| 1989 | Honda | Prelude | 2.0 Si 4WS |
| 1990 | Acura | Integra | GS |
| 1990 | Acura | Integra | LS |
| 1990 | Acura | Integra | RS |
| 1990 | Honda | Prelude | 2.0 Si |
| 1991 | Acura | Integra | GS |
| 1991 | Acura | Integra | LS |
| 1991 | Acura | Integra | RS |
| 1991 | Honda | Prelude | 2.0 Si |
| 1992 | Acura | Integra | GS |
| 1992 | Acura | Integra | LS |
| 1992 | Acura | Integra | RS |
| 1993 | Acura | Integra | GS |
| 1993 | Acura | Integra | LS |
| 1993 | Acura | Integra | RS |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | CR-V | LX |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1998 | Honda | CR-V | EX |
| 1998 | Honda | CR-V | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | CR-V | EX |
| 1999 | Honda | CR-V | LX |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | CR-V | EX |
| 2000 | Honda | CR-V | LX |
| 2000 | Honda | CR-V | SE |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
| 2001 | Honda | CR-V | EX |
| 2001 | Honda | CR-V | LX |
| 2001 | Honda | CR-V | SE |
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | CR-V | EX |
| 2002 | Honda | CR-V | LX |
| 2002 | Honda | Civic | Si |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Accord | DX |
| 2003 | Honda | Accord | EX |
| 2003 | Honda | Accord | LX |
| 2003 | Honda | CR-V | EX |
| 2003 | Honda | CR-V | LX |
| 2003 | Honda | Civic | Si |
| 2003 | Honda | Element | DX |
| 2003 | Honda | Element | EX |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Acura | TSX | Base |
| 2004 | Honda | Accord | DX |
| 2004 | Honda | Accord | EX |
| 2004 | Honda | CR-V | EX |
| 2004 | Honda | CR-V | LX |
| 2004 | Honda | Civic | Si |
| 2004 | Honda | Element | DX |
| 2004 | Honda | Element | EX |
| 2004 | Honda | Element | LX |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Acura | TSX | Base |
| 2005 | Honda | Accord | DX |
| 2005 | Honda | Accord | EX |
| 2005 | Honda | Accord | LX |
| 2005 | Honda | Accord | SE |
| 2005 | Honda | CR-V | EX |
| 2005 | Honda | CR-V | LX |
| 2005 | Honda | CR-V | SE |
| 2005 | Honda | Civic | Si |
| 2005 | Honda | Element | EX |
| 2005 | Honda | Element | LX |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Acura | TSX | Base |
| 2006 | Honda | Accord | EX |
| 2006 | Honda | Accord | LX |
| 2006 | Honda | Accord | LX Special Edition |
| 2006 | Honda | Accord | Value Package |
| 2006 | Honda | CR-V | EX |
| 2006 | Honda | CR-V | LX |
| 2006 | Honda | CR-V | SE |
| 2006 | Honda | Element | EX |
| 2006 | Honda | Element | LX |
| 2007 | Acura | TSX | Base |
| 2007 | Honda | Accord | EX-L |
| 2007 | Honda | Accord | Special Edition |
| 2007 | Honda | Accord | Value Package |
| 2007 | Honda | Element | EX |
| 2007 | Honda | Element | LX |
| 2007 | Honda | Element | SC |
| 2008 | Acura | TSX | Base |
| 2008 | Honda | Element | EX |
| 2008 | Honda | Element | LX |
| 2008 | Honda | Element | SC |
| 2009 | Honda | Element | EX |
| 2009 | Honda | Element | LX |
| 2009 | Honda | Element | SC |
| 2010 | Honda | Element | EX |
| 2010 | Honda | Element | LX |
| 2010 | Honda | Element | SC |
| 2011 | Honda | Element | EX |
| 2011 | Honda | Element | LX |
Engine Fitment
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.7L/1678CC - 4 Cylinder (B17A1)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
Honda 1.8L/1834CC - 4 Cylinder (B18B1)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.8L/1834CC - 4 Cylinder (B18A1)
Honda 2.0L/1958CC - 4 Cylinder (B20A5)
Honda 2.0L/1972CC - 4 Cylinder (B20Z2)
Honda 2.0L/1972CC - 4 Cylinder (B20B4)
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
