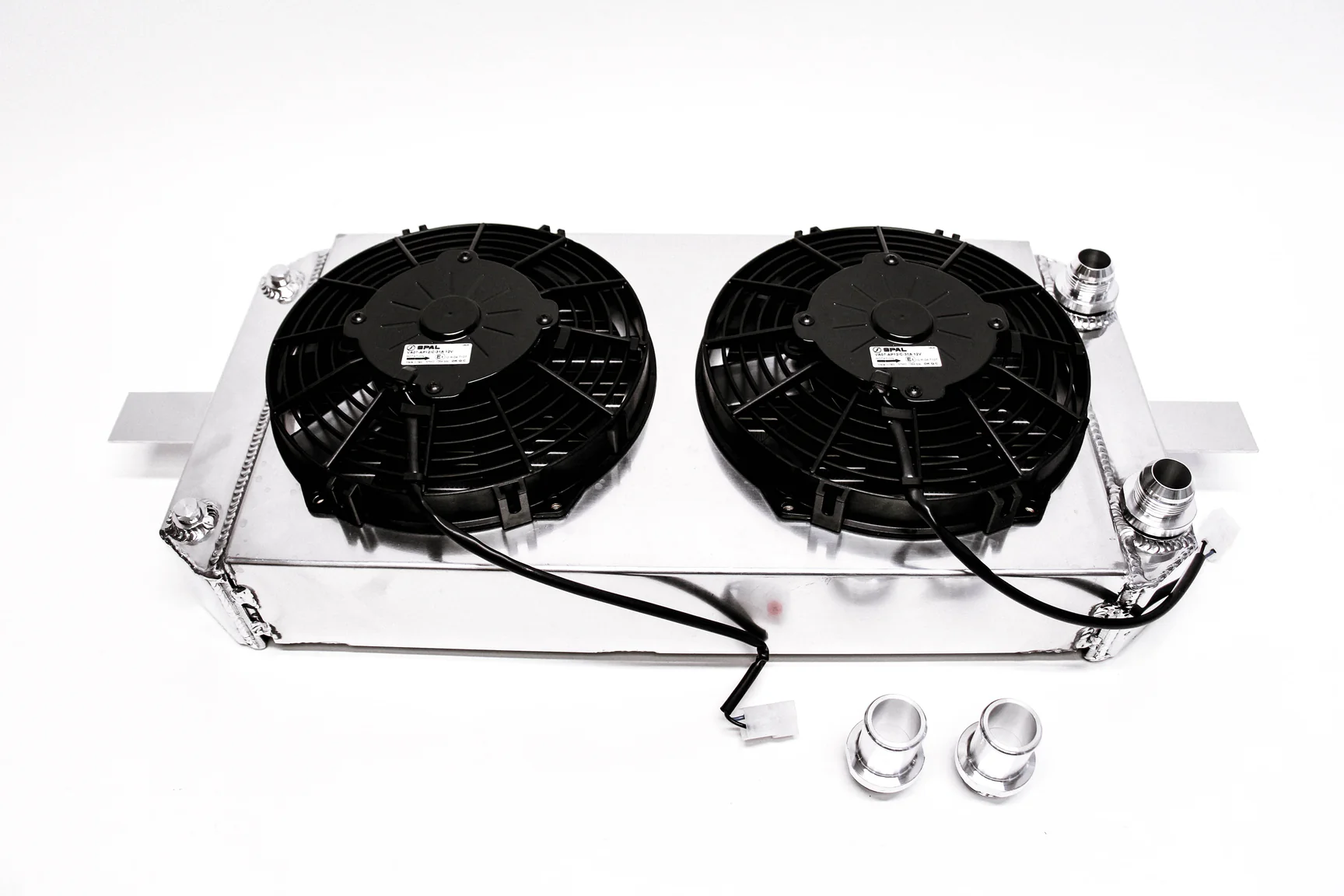

PLM Honda/Acura B/K-Series XL Power Driven Tucked Radiator with SPAL Fans
Part Number: PLM-RD-TCK-XL-SPAL

Images may be for reference only

PLM Honda/Acura B/K-Series XL Power Driven Tucked Radiator with SPAL Fans
Part Number: PLM-RD-TCK-XL-SPAL

Be the first to review!
Retail: $850.00
$575.00 & Free Shipping
Save: $275.00 (32%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 2.5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1150 reward points. Learn More

Please contact us for availablity
Ask us a Question

Product Details

Part Number: PLM-RD-TCK-XL-SPAL
Brand: Private Label
Introducing the PLM Power Driven Tucked Radiator XL for Honda and Acura vehicles. From the successful introduction of our tucked radiator, we are pleased to offer the XL (extra large) version of this radiator for those in need of increased cooling capacity.

Designed to be a direct replacement for your factory radiator, our Tucked Radiator XL is the perfect upgrade for those looking to maximize engine cooling efficiency. The radiator features a slim design that allows for additional clearance in tight engine bays, while the high-quality aluminum construction ensures durability and longevity.

We take pride in providing the best value for our customers, and the PLM Power Driven Tucked Radiator XL is no exception. This radiator offers superior performance at an unbeatable price point and is compatible with both manual and automatic transmissions.

Why is ours better?  Our design uses threaded inlet and outlet fittings, which means you can use AN-sized or clamp-on style hoses.  You can even use other adapter sizes, such as 16AN to 20AN fitting.  Our mounting brackets are not welded to the core, so you can flip the brackets around or adjust them for a more universal fit.

A must-have if you want to utilize all the engine space and tuck the radiator underneath the radiator support.

Includes:
  • 2 x 16AN fittings.
  • 2 x slip-on fittings.
  • Mounting brackets
  • Brackets hardware
Features
  • Size: 24" x 11.5" x 4.0" (without fans)
  • Size: 24" x 11.5" x 5.5" (with fans)
  • SPAL fans on this XL version use the 9-inch size, so it is much larger and flows more cfm!
  • Overall length: 30.5" with end brackets.
  • Core thickness is 2.25" and the end tanks are 3" thick.
  • Mounting brackets are removable & bolted on, so it can be used for other applications.
  • Drain plug size is 1/4NPT.
Compatible Vehicles
  • Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
  • Honda Acura K-Series K20 K24 K20A K20Z
  • May also fit other cars (refer to size dimension above)
Installation Notes
  • If you use it for other universal applications, it is strongly recommended that you use a set of rubber grommets for vibration isolation.  Excessive vibration on the bracket and/or mounting holes can cause breakage.

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Acura Integra
1990 Acura Integra GS
1991 Acura Integra GS
1992 Acura Integra GS
1993 Acura Integra GS
1997 Acura Integra GS
1998 Acura Integra GS
1999 Acura Integra GS
2000 Acura Integra GS
2001 Acura Integra GS
1994 Acura Integra GS-R
1995 Acura Integra GS-R
1996 Acura Integra GS-R
1997 Acura Integra GS-R
1998 Acura Integra GS-R
1999 Acura Integra GS-R
2000 Acura Integra GS-R
2001 Acura Integra GS-R
1990 Acura Integra LS
1991 Acura Integra LS
1992 Acura Integra LS
1993 Acura Integra LS
1994 Acura Integra LS
1995 Acura Integra LS
1996 Acura Integra LS
1997 Acura Integra LS
1998 Acura Integra LS
1999 Acura Integra LS
2000 Acura Integra LS
2001 Acura Integra LS
1990 Acura Integra RS
1991 Acura Integra RS
1992 Acura Integra RS
1993 Acura Integra RS
1994 Acura Integra RS
1995 Acura Integra RS
1996 Acura Integra RS
1997 Acura Integra RS
1998 Acura Integra RS
1995 Acura Integra Special Edition
1996 Acura Integra Special Edition
1997 Acura Integra Type R
1998 Acura Integra Type R
2000 Acura Integra Type R
2001 Acura Integra Type R
Acura RSX
2002 Acura RSX Base
2003 Acura RSX Base
2004 Acura RSX Base
2005 Acura RSX Base
2006 Acura RSX Base
2002 Acura RSX Type-S
2003 Acura RSX Type-S
2004 Acura RSX Type-S
2005 Acura RSX Type-S
2006 Acura RSX Type-S
Acura TSX
2004 Acura TSX Base
2005 Acura TSX Base
2006 Acura TSX Base
2007 Acura TSX Base
2008 Acura TSX Base
Honda Accord
2003 Honda Accord DX
2004 Honda Accord DX
2005 Honda Accord DX
2003 Honda Accord EX
2004 Honda Accord EX
2005 Honda Accord EX
2006 Honda Accord EX
2007 Honda Accord EX-L
2003 Honda Accord LX
2005 Honda Accord LX
2006 Honda Accord LX
2006 Honda Accord LX Special Edition
2005 Honda Accord SE
2007 Honda Accord Special Edition
2006 Honda Accord Value Package
2007 Honda Accord Value Package
Honda CR-V
1998 Honda CR-V EX
1999 Honda CR-V EX
2000 Honda CR-V EX
2001 Honda CR-V EX
2002 Honda CR-V EX
2003 Honda CR-V EX
2004 Honda CR-V EX
2005 Honda CR-V EX
2006 Honda CR-V EX
1997 Honda CR-V LX
1998 Honda CR-V LX
1999 Honda CR-V LX
2000 Honda CR-V LX
2001 Honda CR-V LX
2002 Honda CR-V LX
2003 Honda CR-V LX
2004 Honda CR-V LX
2005 Honda CR-V LX
2006 Honda CR-V LX
2000 Honda CR-V SE
2001 Honda CR-V SE
2005 Honda CR-V SE
2006 Honda CR-V SE
Honda Civic
1999 Honda Civic Si
2000 Honda Civic Si
2002 Honda Civic Si
2003 Honda Civic Si
2004 Honda Civic Si
2005 Honda Civic Si
Honda Civic del Sol
1994 Honda Civic del Sol VTEC
1995 Honda Civic del Sol VTEC
1996 Honda Civic del Sol VTEC
1997 Honda Civic del Sol VTEC
Honda Element
2003 Honda Element DX
2004 Honda Element DX
2003 Honda Element EX
2004 Honda Element EX
2005 Honda Element EX
2006 Honda Element EX
2007 Honda Element EX
2008 Honda Element EX
2009 Honda Element EX
2010 Honda Element EX
2011 Honda Element EX
2004 Honda Element LX
2005 Honda Element LX
2006 Honda Element LX
2007 Honda Element LX
2008 Honda Element LX
2009 Honda Element LX
2010 Honda Element LX
2011 Honda Element LX
2007 Honda Element SC
2008 Honda Element SC
2009 Honda Element SC
2010 Honda Element SC
Honda Prelude
1988 Honda Prelude 2.0 Si
1989 Honda Prelude 2.0 Si
1990 Honda Prelude 2.0 Si
1991 Honda Prelude 2.0 Si
1988 Honda Prelude 2.0 Si 4WS
1989 Honda Prelude 2.0 Si 4WS

Engine Fitment

Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.7L/1678CC - 4 Cylinder (B17A1)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
Honda 1.8L/1834CC - 4 Cylinder (B18B1)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.8L/1834CC - 4 Cylinder (B18A1)
Honda 2.0L/1958CC - 4 Cylinder (B20A5)
Honda 2.0L/1972CC - 4 Cylinder (B20Z2)
Honda 2.0L/1972CC - 4 Cylinder (B20B4)
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
