Product Details
| Part Number: | PLM-RD-TCK-SPAL |
| Brand: | Private Label |

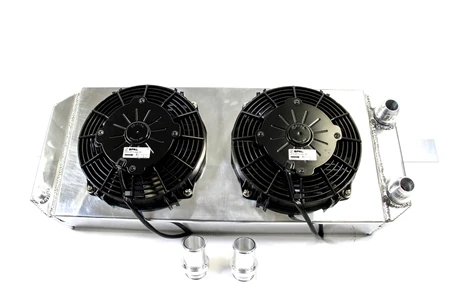

The PLM Power Driven Aluminum Tucked Radiator offers unmatched value with versatile threaded inlet and outlet fittings for AN or clamp-on hoses, and adjustable, non-welded mounting brackets for universal fitment, maximizing engine space by tucking the radiator underneath the support.
Features
- Removable mounting brackets & bolted on, allowing the radiator to be easily adapted for various applications.
- Removable fittings for OEM-style hose fittings or AN fittings.
Includes:
- Two (2) x 16AN fittings.
- Two (2) x slip-on fittings.
- Mounting brackets
- Brackets hardware
Specifications
- Size: 24" x 9.5" x 3.5" (without fans)
- Size: 24" x 9.5" x 5.5" (with fans)
- Overall length: 30" with end brackets
- Drain plug size is 1/4 NPT
Compatible Vehicles
- Common fitment for Honda B-Series, K-Series cars.
- Also used as a universal fitment for many other vehicles. (Refer to size dimension under specifications)
- Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
- Honda Acura K-Series K20 K24 K20A K20Z
Installation Notes
- If you use it for other universal applications, it is strongly recommended that you use a set of rubber grommets for vibration isolation.
- Excessive vibration on the bracket and/or mounting holes can cause breakage.
Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1988 | Honda | Prelude | 2.0 Si |
| 1988 | Honda | Prelude | 2.0 Si 4WS |
| 1989 | Honda | Prelude | 2.0 Si |
| 1989 | Honda | Prelude | 2.0 Si 4WS |
| 1990 | Acura | Integra | GS |
| 1990 | Acura | Integra | LS |
| 1990 | Acura | Integra | RS |
| 1990 | Honda | Prelude | 2.0 Si |
| 1991 | Acura | Integra | GS |
| 1991 | Acura | Integra | LS |
| 1991 | Acura | Integra | RS |
| 1991 | Honda | Prelude | 2.0 Si |
| 1992 | Acura | Integra | GS |
| 1992 | Acura | Integra | LS |
| 1992 | Acura | Integra | RS |
| 1993 | Acura | Integra | GS |
| 1993 | Acura | Integra | LS |
| 1993 | Acura | Integra | RS |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1994 | Honda | Civic del Sol | VTEC |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Civic del Sol | VTEC |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Civic del Sol | VTEC |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | CR-V | LX |
| 1997 | Honda | Civic del Sol | VTEC |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1998 | Honda | CR-V | EX |
| 1998 | Honda | CR-V | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | CR-V | EX |
| 1999 | Honda | CR-V | LX |
| 1999 | Honda | Civic | Si |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | CR-V | EX |
| 2000 | Honda | CR-V | LX |
| 2000 | Honda | CR-V | SE |
| 2000 | Honda | Civic | Si |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
| 2001 | Honda | CR-V | EX |
| 2001 | Honda | CR-V | LX |
| 2001 | Honda | CR-V | SE |
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | CR-V | EX |
| 2002 | Honda | CR-V | LX |
| 2002 | Honda | Civic | Si |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Accord | DX |
| 2003 | Honda | Accord | EX |
| 2003 | Honda | Accord | LX |
| 2003 | Honda | CR-V | EX |
| 2003 | Honda | CR-V | LX |
| 2003 | Honda | Civic | Si |
| 2003 | Honda | Element | DX |
| 2003 | Honda | Element | EX |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Acura | TSX | Base |
| 2004 | Honda | Accord | DX |
| 2004 | Honda | Accord | EX |
| 2004 | Honda | CR-V | EX |
| 2004 | Honda | CR-V | LX |
| 2004 | Honda | Civic | Si |
| 2004 | Honda | Element | DX |
| 2004 | Honda | Element | EX |
| 2004 | Honda | Element | LX |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Acura | TSX | Base |
| 2005 | Honda | Accord | DX |
| 2005 | Honda | Accord | EX |
| 2005 | Honda | Accord | LX |
| 2005 | Honda | Accord | SE |
| 2005 | Honda | CR-V | EX |
| 2005 | Honda | CR-V | LX |
| 2005 | Honda | CR-V | SE |
| 2005 | Honda | Civic | Si |
| 2005 | Honda | Element | EX |
| 2005 | Honda | Element | LX |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Acura | TSX | Base |
| 2006 | Honda | Accord | EX |
| 2006 | Honda | Accord | LX |
| 2006 | Honda | Accord | LX Special Edition |
| 2006 | Honda | Accord | Value Package |
| 2006 | Honda | CR-V | EX |
| 2006 | Honda | CR-V | LX |
| 2006 | Honda | CR-V | SE |
| 2006 | Honda | Element | EX |
| 2006 | Honda | Element | LX |
| 2007 | Acura | TSX | Base |
| 2007 | Honda | Accord | EX-L |
| 2007 | Honda | Accord | Special Edition |
| 2007 | Honda | Accord | Value Package |
| 2007 | Honda | Element | EX |
| 2007 | Honda | Element | LX |
| 2007 | Honda | Element | SC |
| 2008 | Acura | TSX | Base |
| 2008 | Honda | Element | EX |
| 2008 | Honda | Element | LX |
| 2008 | Honda | Element | SC |
| 2009 | Honda | Element | EX |
| 2009 | Honda | Element | LX |
| 2009 | Honda | Element | SC |
| 2010 | Honda | Element | EX |
| 2010 | Honda | Element | LX |
| 2010 | Honda | Element | SC |
| 2011 | Honda | Element | EX |
| 2011 | Honda | Element | LX |
Engine Fitment
Honda 1.6L/1588CC - 4 Cylinder (B16A3)
Honda 1.6L/1595CC - 4 Cylinder (B16A2)
Honda 1.7L/1678CC - 4 Cylinder (B17A1)
Honda 1.8L/1797CC - 4 Cylinder (B18C1)
Honda 1.8L/1834CC - 4 Cylinder (B18B1)
Honda 1.8L/1797CC - 4 Cylinder (B18C5)
Honda 1.8L/1834CC - 4 Cylinder (B18A1)
Honda 2.0L/1958CC - 4 Cylinder (B20A5)
Honda 2.0L/1972CC - 4 Cylinder (B20Z2)
Honda 2.0L/1972CC - 4 Cylinder (B20B4)
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
