Images may be for reference only
Product Details
| Part Number: | MMINT-UJB |
| Brand: | Mishimoto |
| Color: | Black |
| CARB Approved: | No |

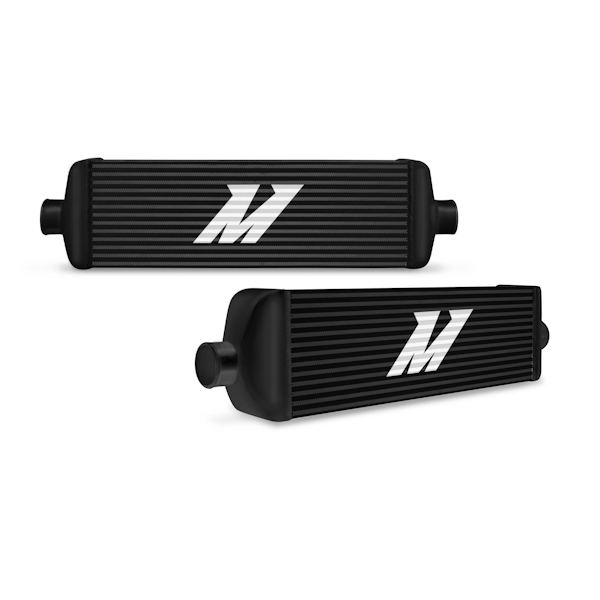

A small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size. Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space. In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar. Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.
Specifications:- Construction: Bar/Plate
- Overall Size: 29.5" x 7.5" x 3.75"
- Core Size: 22.0" x 7.2" x 3.75"
- Inlet/Outlet: 2.5"
- Max Recommended PSI: 40psi
- Fin Pitch: 7 fins/inch
- Tank Wall Thickness: 4mm
- Thread Size: M12 x 1.25"
- Weight: 18.7lbs / 8.49kgs
- Two Threaded Universal Mounting Points
- Mishimoto Intercooler
- 2 M12 x 1.25 Bolts
- Limited Lifetime Warranty
Includes:
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
This part does not have vehicle specific fitment. Please contact us if you need assistance.
