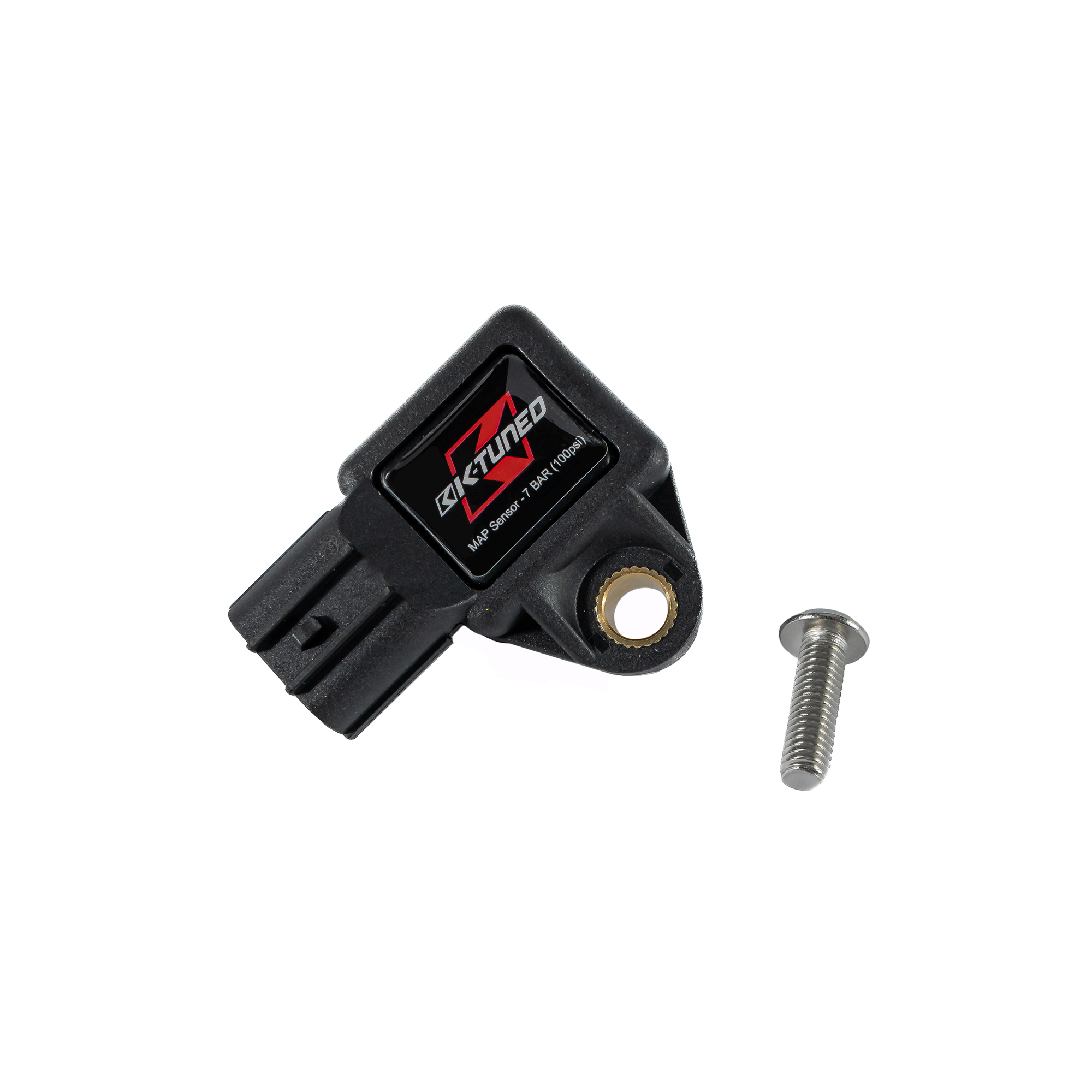

K-Tuned K-Series 7 Bar Map Sensor
Part Number: KTD-MAP-KM7

Images may be for reference only

Product Details

Part Number:	KTD-MAP-KM7
Brand:	K-Tuned
Fitment Notes:	ECU Tuner Required

K-Tuned 7 BAR MAP Sensors are designed to accurately read the increased manifold pressures on turbo or supercharger setups and will reliably support up to 100 psi of boost pressure. The sensors feature direct plug-and-play fitment for several Honda / Acura applications and are easy to install. The sensor provides the fastest response time available of 0.001 seconds and an accuracy of over 99%.

BAR is a unit of measure; 1 BAR = 14.5psi. When calibrating in your ECU, 7 Bar will be a standard that can be easily selected or calibrated. You will simply select the appropriate sensor from the MAP tab of your preferred tuning software, and you're all set.

MIN Voltage .08
MAX Voltage 4.88
Scalar 838
Load Offset 31

Applications:

All K-Series engines
Fits K-Tuned Throttle Bodies

Notes:

Requires engine management to use (Flashpro/K-Pro/S300/AEM)
There are 2 versions for the K-Series: choose between the K-Series and the K24Z-Series
We offer a 1 Year Warranty with all MAP sensors
Will not fit K24Z-Series Motors

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

ECU Tuner Required

Year	Make	Model	Trim
2002	Acura	RSX	Base
2002	Acura	RSX	Type-S
2002	Honda	CR-V	EX
2002	Honda	CR-V	LX
2002	Honda	Civic	Si
2003	Acura	RSX	Base
2003	Acura	RSX	Type-S
2003	Honda	Accord	DX
2003	Honda	Accord	EX
2003	Honda	Accord	LX
2003	Honda	CR-V	EX
2003	Honda	CR-V	LX
2003	Honda	Civic	Si
2003	Honda	Element	DX
2003	Honda	Element	EX
2004	Acura	RSX	Base
2004	Acura	RSX	Type-S
2004	Honda	Accord	DX
2004	Honda	Accord	EX
2004	Honda	CR-V	EX
2004	Honda	CR-V	LX
2004	Honda	Civic	Si
2004	Honda	Element	DX
2004	Honda	Element	EX
2004	Honda	Element	LX
2005	Acura	RSX	Base
2005	Acura	RSX	Type-S
2005	Honda	Accord	DX
2005	Honda	Accord	EX
2005	Honda	Accord	LX
2005	Honda	Accord	SE
2005	Honda	CR-V	EX
2005	Honda	CR-V	LX
2005	Honda	CR-V	SE
2005	Honda	Civic	Si
2005	Honda	Element	EX
2005	Honda	Element	LX
2006	Acura	RSX	Base
2006	Acura	RSX	Type-S
2006	Honda	Accord	EX
2006	Honda	Accord	LX
2006	Honda	Accord	LX Special Edition
2006	Honda	Accord	Value Package
2006	Honda	CR-V	EX
2006	Honda	CR-V	LX
2006	Honda	CR-V	SE
2006	Honda	Civic	Si
2006	Honda	Element	EX
2006	Honda	Element	LX
2007	Honda	Accord	EX-L
2007	Honda	Accord	Special Edition
2007	Honda	Accord	Value Package
2007	Honda	CR-V	EX
2007	Honda	CR-V	EX-L
2007	Honda	CR-V	LX
2007	Honda	Civic	Si
2007	Honda	Element	EX
2007	Honda	Element	LX
2007	Honda	Element	SC
2008	Honda	Accord	LX
2008	Honda	Accord	LX-P
2008	Honda	Accord	LX-S
2008	Honda	CR-V	EX
2008	Honda	CR-V	EX-L
2008	Honda	CR-V	LX
2008	Honda	Civic	MUGEN Si
2008	Honda	Civic	Si
2008	Honda	Element	EX
2008	Honda	Element	LX
2008	Honda	Element	SC
2009	Honda	Accord	EX-L
2009	Honda	Accord	LX
2009	Honda	Accord	LX-P
2009	Honda	Accord	LX-S
2009	Honda	CR-V	EX
2009	Honda	CR-V	EX-L
2009	Honda	CR-V	LX
2009	Honda	Civic	Si
2009	Honda	Element	EX
2009	Honda	Element	LX
2009	Honda	Element	SC
2010	Honda	Accord	EX-L
2010	Honda	Accord	LX
2010	Honda	Accord	LX-P
2010	Honda	Accord	LX-S
2010	Honda	CR-V	EX
2010	Honda	CR-V	EX-L
2010	Honda	CR-V	LX
2010	Honda	Civic	Si
2010	Honda	Element	EX
2010	Honda	Element	LX
2010	Honda	Element	SC
2011	Honda	Accord	EX
2011	Honda	Accord	LX
2011	Honda	Accord	LX-P
2011	Honda	Accord	LX-S
2011	Honda	Accord	SE
2011	Honda	CR-V	EX
2011	Honda	CR-V	EX-L
2011	Honda	CR-V	LX
2011	Honda	CR-V	SE
2011	Honda	Civic	Si
2011	Honda	Element	EX
2011	Honda	Element	LX
2012	Honda	Accord	LX
2012	Honda	Accord	LX-P
2012	Honda	Accord	LX-S
2012	Honda	Accord	SE
2012	Honda	CR-V	EX
2012	Honda	CR-V	EX-L
2012	Honda	CR-V	LX
2013	Honda	Accord	EX
2013	Honda	Accord	LX
2013	Honda	Accord	LX-S
2013	Honda	Accord	Sport
2013	Honda	CR-V	EX
2013	Honda	CR-V	EX-L
2013	Honda	CR-V	LX
2013	Honda	Crosstour	EX
2014	Honda	Accord	EX
2014	Honda	Accord	EX-L
2014	Honda	Accord	LX
2014	Honda	Accord	LX-S
2014	Honda	Accord	Sport
2014	Honda	CR-V	EX
2014	Honda	CR-V	EX-L
2014	Honda	CR-V	LX
2014	Honda	Crosstour	EX
2015	Honda	Accord	EX
2015	Honda	Accord	EX-L
2015	Honda	Accord	LX
2015	Honda	Accord	LX-S
2015	Honda	Accord	Sport
2015	Honda	CR-V	EX
2015	Honda	CR-V	EX-L
2015	Honda	CR-V	LX
2015	Honda	CR-V	Touring
2015	Honda	Crosstour	EX
2015	Honda	Crosstour	EX-L
2016	Honda	Accord	EX
2016	Honda	Accord	EX-L
2016	Honda	Accord	LX
2016	Honda	Accord	LX-S
2016	Honda	Accord	Sport
2016	Honda	CR-V	EX
2016	Honda	CR-V	EX-L
2016	Honda	CR-V	LX
2016	Honda	CR-V	SE
2016	Honda	CR-V	Touring
2017	Honda	Accord	EX
2017	Honda	Accord	EX-L
2017	Honda	Accord	LX
2017	Honda	Accord	LX-S
2017	Honda	Accord	Sport
2017	Honda	Accord	Sport Special Edition
