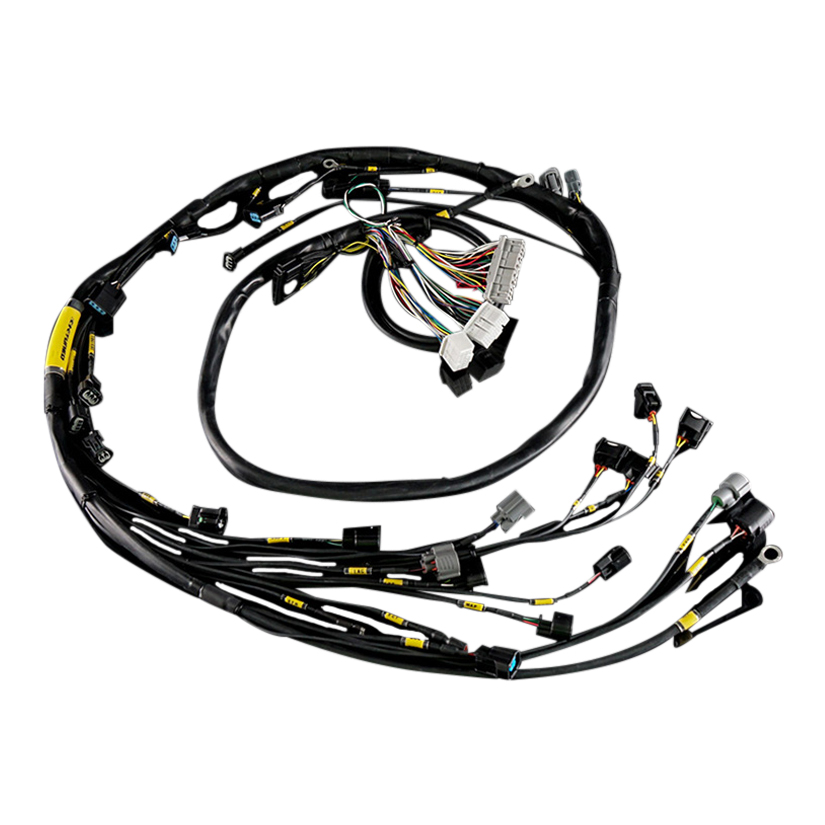

K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness
Part Number: KTH-316-ENG

K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A1
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A2
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A3
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A4
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A5
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A6
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A7
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A8
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-A9
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-B10
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-B11
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-B12
K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness-B13
Images may be for reference only

K-Tuned 02-04 RSX / 02-05 Civic Si Tucked Engine Harness
Part Number: KTH-316-ENG

Be the first to review!
$799.99 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1600 reward points. Learn More


10 In Stock

Product Details

Part Number: KTH-316-ENG
Brand: K-Tuned

Applications: 02-04 RSX Type S, RSX Base or EP3 with Type S or K24 Swap without extra power wire.

  • All plugs included (Fan Switch, IACV, Coolant Temp Sensor, Both Knock Sensor Plugs)
  • Covering is gas and diesel resistant and rated for -55 C to 15° C (-67 F to 320 F)
  • SAE Certified Automotive Grade Wiring
  • All plugs are labeled
  • Tucked design
  • Harness runs over valve cover (Can be covered with coil pack cover)
  • Injector wiring runs from under manifold between middle runners.
  • Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)
  • Includes single wire temp sensor wire (For k-swap cars stock cluster)
  • 3 Aux wires run from ECU to under intake manifold. Two ECU pins pre-installed.
  • Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions will require repining plug and slight modification to VSS)
  • Extra knock sensor plug included.
  • Each harness is inspected and tested before shipping.
  • RDX injectors plugs come standard (RSX Type S injectors use the same pin. Can be easily switched)

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Acura RSX
2002 Acura RSX Base
2003 Acura RSX Base
2004 Acura RSX Base
2002 Acura RSX Type-S
2003 Acura RSX Type-S
2004 Acura RSX Type-S
Honda Civic
2002 Honda Civic Si
2003 Honda Civic Si
2004 Honda Civic Si
2005 Honda Civic Si

Engine Fitment

Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.0L/1998CC - 4 Cylinder (K20Z3)
Honda 2.0L/1998CC - 4 Cylinder (K20Z1)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.0L/1998CC - 4 Cylinder (K20A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
Honda 2.0L/1998CC - 4 Cylinder (K20A3)
