Product Details

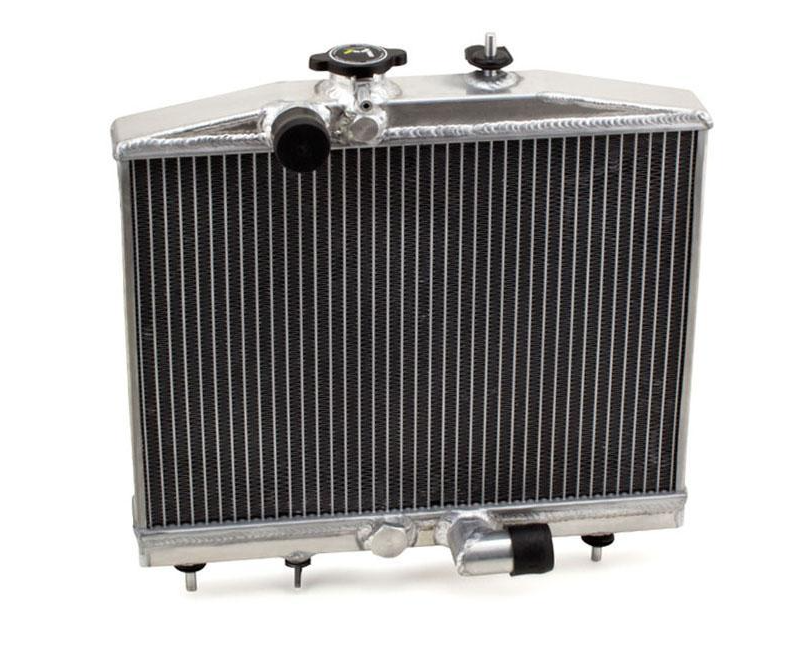

Each K-Series swap radiator was carefully designed by Hybrid Racing to take into account both the chassis' dimensions and mounting points, as well as the K-Series' motor's coolant inlet and outlet. These radiators simplify the K-Series engine swap by eliminating the need for custom mounting brackets and by providing a guaranteed fit for your specific swap.
All Hybrid Racing radiators feature dual core, all-aluminum construction with high-precision TIG welds. This radiator integrates the necessary ports for the Coolant Temperature Sending Unit and the Fan Switch, eliminating the need for special adapters and inserts.
- Bolt in K-Swap Radiator for your Civic!
- Integrated bungs to mount coolant temperature sending unit and fan switch.
- Hybrid Racing Radiator cap included.
- Dual Core Construction.
How is this radiator better than the OEM radiator?
This question has several answers. First, this Hybrid Racing K-Swap radiator features all aluminum, and fully tig welded construction. As a result, it's less likely to leak or crack like the OEM unit which uses an aluminum core and plastic end tanks. Second, the coolant ports on all Hybrid Racing K swap radiators are relocated to allow the use of shorter coolant hoses when used in conjunction with a K series motor.
Do I have to modify my chassis to make this radiator fit?
No. This radiator is a complete bolt-on part. It mounts to the factory lower support tabs. We recommend using two high speed ten-inch cooling fans.
Is this radiator compatible with the Hybrid Racing AC kit for my chassis?
YES! This unit is compatible with the Hybrid Racing conversion AC kit!
Dimensions
- Core: 13.5" x 12.75" x 2"
- Inlet / Outlet: 1.25"
| Part Number: | HYB-RAD-01-06 |
| Brand: | Hybrid Racing |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1996 | Honda | Civic | CX |
| 1996 | Honda | Civic | DX |
| 1996 | Honda | Civic | EX |
| 1996 | Honda | Civic | HX |
| 1996 | Honda | Civic | LX |
| 1997 | Honda | Civic | CX |
| 1997 | Honda | Civic | DX |
| 1997 | Honda | Civic | EX |
| 1997 | Honda | Civic | HX |
| 1997 | Honda | Civic | LX |
| 1998 | Honda | Civic | CX |
| 1998 | Honda | Civic | DX |
| 1998 | Honda | Civic | EX |
| 1998 | Honda | Civic | GX |
| 1998 | Honda | Civic | HX |
| 1998 | Honda | Civic | LX |
| 1999 | Honda | Civic | CX |
| 1999 | Honda | Civic | DX |
| 1999 | Honda | Civic | EX |
| 1999 | Honda | Civic | GX |
| 1999 | Honda | Civic | HX |
| 1999 | Honda | Civic | LX |
| 1999 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 2000 | Honda | Civic | CX |
| 2000 | Honda | Civic | DX |
| 2000 | Honda | Civic | EX |
| 2000 | Honda | Civic | GX |
| 2000 | Honda | Civic | HX |
| 2000 | Honda | Civic | LX |
| 2000 | Honda | Civic | Si |
Engine Fitment
| Engine |
|---|
| Honda 2.0L/1998CC - 4 Cylinder (K20Z1) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A8) |
| Honda 2.0L/1998CC - 4 Cylinder (K20Z3) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A2) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A2) |
| Honda 2.0L/1998CC - 4 Cylinder (K20A2) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A1) |
| Honda 2.0L/1998CC - 4 Cylinder (K20A3) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A4) |
