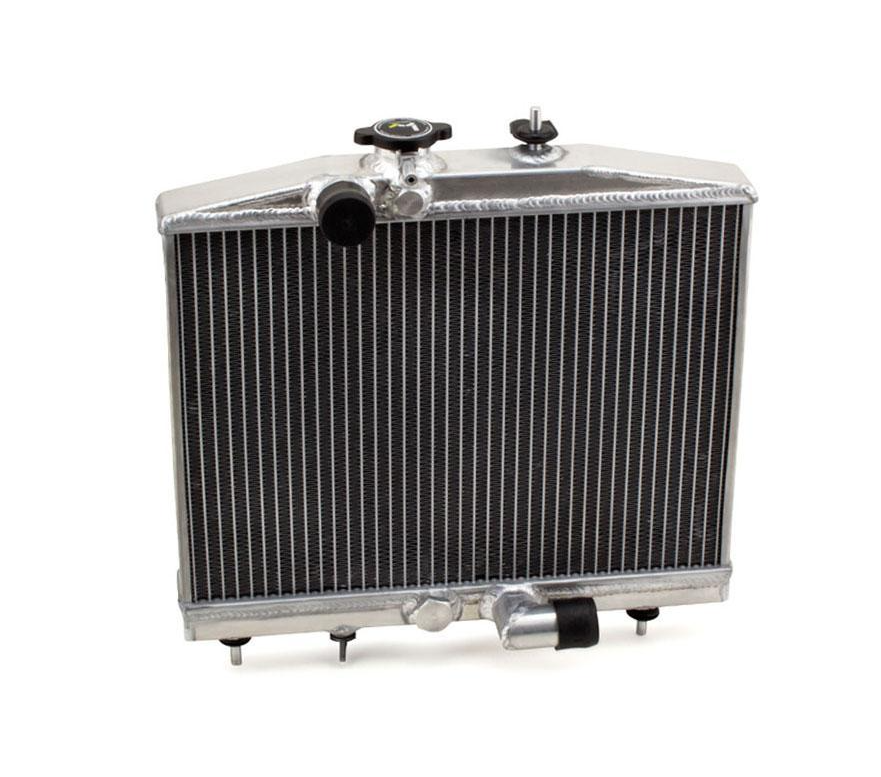

Hybrid Racing 92-95 Civic / 93-97 Del Sol K Swap Half Size Radiator
Part Number: HYB-RAD-01-05

Images may be for reference only

Product Details

Part Number:	HYB-RAD-01-05
Brand:	Hybrid Racing

Each K-Series swap radiator was carefully designed by Hybrid Racing to take into account both the chassis' dimensions and mounting points, as well as the K-Series' motor's coolant inlet and outlet. These radiators simplify the K-Series engine swap by eliminating the need for custom mounting brackets and by providing a guaranteed fit for your specific swap.

All Hybrid Racing radiators feature dual-core, all-aluminum construction with high-precision TIG welds. This radiator integrates the necessary ports for the Coolant Temperature Sending Unit and the Fan Switch, eliminating the need for special adapters and inserts.

Bolt in K-Swap Radiator for your Civic!
Integrated bungs to mount coolant temperature sending unit and fan switch.
Hybrid Racing Radiator cap included.
Dual Core Construction.

How is this radiator better than the OEM radiator?

This question has several answers. First, this Hybrid Racing K-Swap radiator features all-aluminum, and fully tig welded construction. As a result, it's less likely to leak or crack like the OEM unit which uses an aluminum core and plastic end tanks. Second, the coolant ports on all Hybrid Racing K swap radiators are relocated to allow the use of shorter coolant hoses when used in conjunction with a K series motor.

Do I have to modify my chassis to make this radiator fit?

No. This radiator is a complete bolt-on part. It mounts to the factory lower support tabs. We recommend using two high-speed ten-inch cooling fans.

Is this radiator compatible with the Hybrid Racing AC kit for my chassis?

YES! This unit is compatible with the Hybrid Racing conversion AC kit!

Dimensions

Core: 13.5" x11.5" x 2"
Inlet / Outlet: 1.25"

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim
1992	Honda	Civic	CX
1992	Honda	Civic	DX
1992	Honda	Civic	EX
1992	Honda	Civic	LX
1992	Honda	Civic	Si
1992	Honda	Civic	VX
1993	Honda	Civic del Sol	S
1993	Honda	Civic del Sol	Si
1993	Honda	Civic	CX
1993	Honda	Civic	DX
1993	Honda	Civic	EX
1993	Honda	Civic	LX
1993	Honda	Civic	Si
1993	Honda	Civic	VX
1994	Honda	Civic del Sol	S
1994	Honda	Civic del Sol	Si
1994	Honda	Civic del Sol	VTEC
1994	Honda	Civic	CX
1994	Honda	Civic	DX
1994	Honda	Civic	EX
1994	Honda	Civic	LX
1994	Honda	Civic	Si
1994	Honda	Civic	VX
1995	Honda	Civic del Sol	S
1995	Honda	Civic del Sol	Si
1995	Honda	Civic del Sol	VTEC
1995	Honda	Civic	CX
1995	Honda	Civic	DX
1995	Honda	Civic	EX
1995	Honda	Civic	LX
1995	Honda	Civic	Si
1995	Honda	Civic	VX
1996	Honda	Civic del Sol	S
1996	Honda	Civic del Sol	Si
1996	Honda	Civic del Sol	VTEC
1997	Honda	Civic del Sol	S
1997	Honda	Civic del Sol	Si
1997	Honda	Civic del Sol	VTEC
