Hybrid Racing 92-00 Civic / 94-01 Integra K Swap Tucked Fuel Line Kit
Part Number: HYB-FLK-01-06

Images may be for reference only

$209.99

Earn 419 Builders Club Points. Learn More

5+ In Stock

Product Details

Part Number:	HYB-FLK-01-06
Brand:	Hybrid Racing

The Hybrid Racing K-Swap tucked fuel line was designed to be a simple pre-assembled kit to adapt your stock fuel system to that of a K-Series engine while also cleaning up your engine bay by eliminating the OEM fuel filter and tucking the fuel lines close to the engine.

The kit routes the fuel lines between the number 2 and number 3 runners and hugs the transmission as it makes its way to the regulator which you will mount below the brake booster. This kit works with the Hybrid Racing Fuel rail or other aftermarket rails which have the necessary port in the center of the rail.

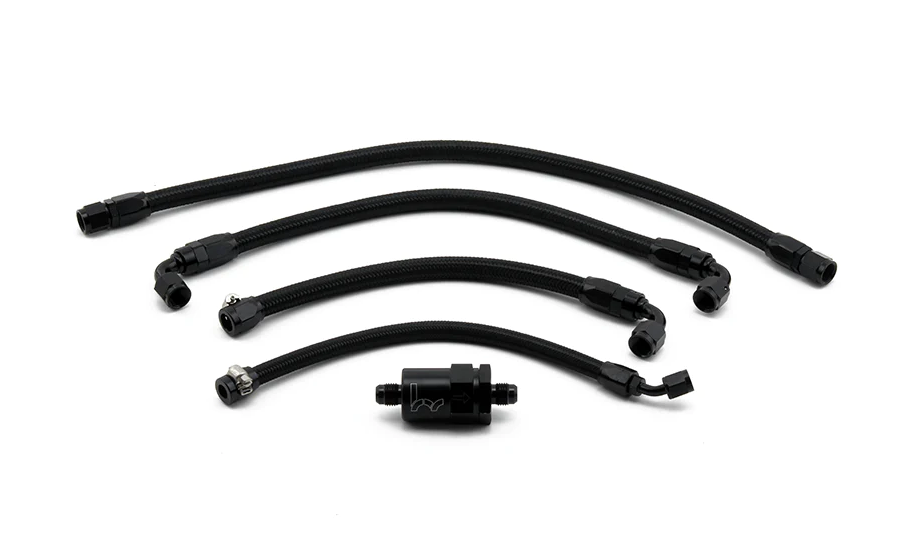

Tucked Fuel Line Kit for K-Series Conversions in EG/EK/DC Chassis.
-6AN Black Nylon lines & 100 Micron filter. (fittings not included)
-4AN Return Line
Pressure and leak tested after assembly.
E85 compatible

Why do you need a fuel line kit for K-Swaps?

K-Series engines are normally are supplied with return-less fuel systems, meaning the fuel pressure regulator is inside of the fuel tank and has only one line leading to the engine. In most cases, the chassis that you plan on installing your K series engine (in this case EG,EK,DC) utilizes a return system. In order to have the engine run correctly, you will need to convert the K-Series engine to a return system. Although there is only one line going to the rail, this kit is still a return type system since the pressure is still regulated before it goes back to the tank.

Due to the manufacturer's price control policy, this item may be excluded from promotions and discounts

WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.

Vehicle Fitment

Year	Make	Model	Trim
1992	Honda	Civic	CX
1992	Honda	Civic	DX
1992	Honda	Civic	EX
1992	Honda	Civic	LX
1992	Honda	Civic	Si
1992	Honda	Civic	VX
1993	Honda	Civic del Sol	S
1993	Honda	Civic del Sol	Si
1993	Honda	Civic	CX
1993	Honda	Civic	DX
1993	Honda	Civic	EX
1993	Honda	Civic	LX
1993	Honda	Civic	Si
1993	Honda	Civic	VX
1994	Acura	Integra	GS-R
1994	Acura	Integra	LS
1994	Acura	Integra	RS
1994	Honda	Civic del Sol	S
1994	Honda	Civic del Sol	Si
1994	Honda	Civic del Sol	VTEC
1994	Honda	Civic	CX
1994	Honda	Civic	DX
1994	Honda	Civic	EX
1994	Honda	Civic	LX
1994	Honda	Civic	Si
1994	Honda	Civic	VX
1995	Acura	Integra	GS-R
1995	Acura	Integra	LS
1995	Acura	Integra	RS
1995	Acura	Integra	Special Edition
1995	Honda	Civic del Sol	S
1995	Honda	Civic del Sol	Si
1995	Honda	Civic del Sol	VTEC
1995	Honda	Civic	CX
1995	Honda	Civic	DX
1995	Honda	Civic	EX
1995	Honda	Civic	LX
1995	Honda	Civic	Si
1995	Honda	Civic	VX
1996	Acura	Integra	GS-R
1996	Acura	Integra	LS
1996	Acura	Integra	RS
1996	Acura	Integra	Special Edition
1996	Honda	Civic del Sol	S
1996	Honda	Civic del Sol	Si
1996	Honda	Civic del Sol	VTEC
1996	Honda	Civic	CX
1996	Honda	Civic	DX
1996	Honda	Civic	EX
1996	Honda	Civic	HX
1996	Honda	Civic	LX
1997	Acura	Integra	GS
1997	Acura	Integra	GS-R
1997	Acura	Integra	LS
1997	Acura	Integra	RS
1997	Acura	Integra	Type R
1997	Honda	Civic del Sol	S
1997	Honda	Civic del Sol	Si
1997	Honda	Civic del Sol	VTEC
1997	Honda	Civic	CX
1997	Honda	Civic	DX
1997	Honda	Civic	EX
1997	Honda	Civic	HX
1997	Honda	Civic	LX
1998	Acura	Integra	GS
1998	Acura	Integra	GS-R
1998	Acura	Integra	LS
1998	Acura	Integra	RS
1998	Acura	Integra	Type R
1998	Honda	Civic	CX
1998	Honda	Civic	DX
1998	Honda	Civic	EX
1998	Honda	Civic	GX
1998	Honda	Civic	HX
1998	Honda	Civic	LX
1999	Acura	Integra	GS
1999	Acura	Integra	GS-R
1999	Acura	Integra	LS
1999	Honda	Civic	CX
1999	Honda	Civic	DX
1999	Honda	Civic	EX
1999	Honda	Civic	GX
1999	Honda	Civic	HX
1999	Honda	Civic	LX
1999	Honda	Civic	Si
1999	Honda	Civic	Value Package
2000	Acura	Integra	GS
2000	Acura	Integra	GS-R
2000	Acura	Integra	LS
2000	Acura	Integra	Type R
2000	Honda	Civic	CX
2000	Honda	Civic	DX
2000	Honda	Civic	EX
2000	Honda	Civic	GX
2000	Honda	Civic	HX
2000	Honda	Civic	LX
2000	Honda	Civic	Si
2001	Acura	Integra	GS
2001	Acura	Integra	GS-R
2001	Acura	Integra	LS
2001	Acura	Integra	Type R
