Product Details

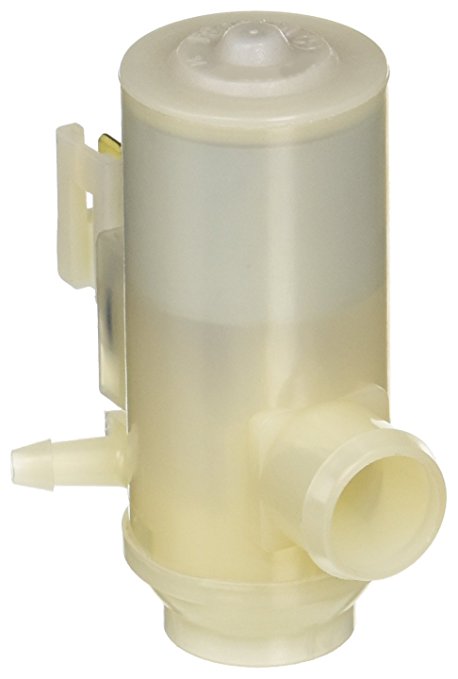

The Honda OEM Windshield Washer Pump is a genuine factory replacement designed for select Honda and Acura vehicles, including the Acura Integra, Acura RSX, Honda CR-V, Honda Odyssey, and Honda Insight.
This electric washer pump is responsible for delivering windshield washer fluid from the reservoir to the washer nozzles, helping remove dirt, dust, bugs, and road debris from the glass. Depending on the vehicle application, this pump operates the front windshield washer system or rear window washer system.
Over time, washer pumps can fail due to electrical wear, internal motor failure, contamination, or damage caused by freezing washer fluid. A malfunctioning pump may result in weak washer fluid pressure, intermittent spraying, or a complete loss of washer fluid delivery.
Manufactured to Honda's original equipment specifications, this genuine Mitsuba washer pump provides dependable operation and factory-quality fitment. It is an excellent replacement for restoring proper windshield or rear window washer performance.
Features
- Genuine Honda / Acura OEM Part: Manufactured to original factory specifications.
- OEM Mitsuba Washer Motor: Factory-style electric washer pump designed for reliable operation.
- Restores Washer Fluid Delivery: Pumps cleaning fluid from the reservoir to the washer nozzles.
- Front or Rear Washer Applications: Used in different washer system positions depending on the vehicle.
- Factory Electrical Connection: Designed to connect to the original wiring harness on compatible vehicles.
- Direct Factory Replacement: Installs in the original washer fluid reservoir mounting location.
- Reliable Cleaning Performance: Helps maintain clear visibility during rain, snow, and dirty road conditions.
- OEM Part Number: 38512-SF0-J01.
Additional Information
- Manufacturer: Honda / Acura
- Part Number: 38512-SF0-J01
- OEM Description: Motor, Washer (Mitsuba)
- Other Names: Windshield Washer Pump / Rear Washer Pump / Washer Motor
- Product Type: Electric Windshield Washer Fluid Pump
- Replaces: 38512-SF0-003, 38512-SF0-013
- Installation Location: Windshield Washer Fluid Reservoir
- Position: Front or Rear Washer System, Depending on Application
- Quantity: Sold Individually (1 Pump)
Installation Notes
- Before replacing the washer pump, check the washer fluid level, electrical connector, wiring, washer hoses, and spray nozzles for blockages or damage.
- Disconnect the electrical connector and washer fluid hose from the original pump. Carefully remove the pump from the washer fluid reservoir, taking precautions to prevent excessive fluid loss.
- Inspect the pump mounting grommet and reservoir opening for deterioration, cracking, or leaks. Install the replacement pump according to Honda's factory service manual, ensuring it is properly seated and securely connected.
- Refill the washer fluid reservoir as needed and test the washer system to verify proper fluid delivery and check for leaks.
Note:
- Includes one genuine Honda washer pump. Washer fluid reservoirs, mounting grommets, hoses, spray nozzles, and additional components are sold separately unless otherwise specified.
For vehicles equipped with both front and rear washer systems, confirm which pump requires replacement before ordering.
| Part Number: | 38512-SF0-J01 |
| Brand: | Honda |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1985 | Honda | Prelude | 2.0 Si |
| 1985 | Honda | Prelude | Base |
| 1986 | Honda | Prelude | 2.0 Si |
| 1986 | Honda | Prelude | Base |
| 1987 | Honda | Prelude | 2.0 Si |
| 1987 | Honda | Prelude | Base |
| 1994 | Acura | Integra | GS-R |
| 1994 | Acura | Integra | LS |
| 1994 | Acura | Integra | RS |
| 1995 | Acura | Integra | GS-R |
| 1995 | Acura | Integra | LS |
| 1995 | Acura | Integra | RS |
| 1995 | Acura | Integra | Special Edition |
| 1995 | Honda | Odyssey | EX |
| 1995 | Honda | Odyssey | LX |
| 1996 | Acura | Integra | GS-R |
| 1996 | Acura | Integra | LS |
| 1996 | Acura | Integra | RS |
| 1996 | Acura | Integra | Special Edition |
| 1996 | Honda | Odyssey | EX |
| 1996 | Honda | Odyssey | LX |
| 1997 | Acura | Integra | GS |
| 1997 | Acura | Integra | GS-R |
| 1997 | Acura | Integra | LS |
| 1997 | Acura | Integra | RS |
| 1997 | Acura | Integra | Type R |
| 1997 | Honda | CR-V | LX |
| 1997 | Honda | Odyssey | EX |
| 1997 | Honda | Odyssey | LX |
| 1998 | Acura | Integra | GS |
| 1998 | Acura | Integra | GS-R |
| 1998 | Acura | Integra | LS |
| 1998 | Acura | Integra | RS |
| 1998 | Acura | Integra | Type R |
| 1998 | Honda | CR-V | EX |
| 1998 | Honda | CR-V | LX |
| 1998 | Honda | Odyssey | EX |
| 1998 | Honda | Odyssey | LX |
| 1999 | Acura | Integra | GS |
| 1999 | Acura | Integra | GS-R |
| 1999 | Acura | Integra | LS |
| 1999 | Honda | CR-V | EX |
| 1999 | Honda | CR-V | LX |
| 2000 | Acura | Integra | GS |
| 2000 | Acura | Integra | GS-R |
| 2000 | Acura | Integra | LS |
| 2000 | Acura | Integra | Type R |
| 2000 | Honda | CR-V | EX |
| 2000 | Honda | CR-V | LX |
| 2000 | Honda | CR-V | SE |
| 2000 | Honda | Insight | Base |
| 2001 | Acura | Integra | GS |
| 2001 | Acura | Integra | GS-R |
| 2001 | Acura | Integra | LS |
| 2001 | Acura | Integra | Type R |
| 2001 | Honda | CR-V | EX |
| 2001 | Honda | CR-V | LX |
| 2001 | Honda | CR-V | SE |
| 2001 | Honda | Insight | Base |
| 2002 | Acura | RSX | Base |
| 2002 | Acura | RSX | Type-S |
| 2002 | Honda | Insight | Base |
| 2003 | Acura | RSX | Base |
| 2003 | Acura | RSX | Type-S |
| 2003 | Honda | Insight | Base |
| 2004 | Acura | RSX | Base |
| 2004 | Acura | RSX | Type-S |
| 2004 | Honda | Insight | Base |
| 2005 | Acura | RSX | Base |
| 2005 | Acura | RSX | Type-S |
| 2005 | Honda | Insight | Base |
| 2006 | Acura | RSX | Base |
| 2006 | Acura | RSX | Type-S |
| 2006 | Honda | Insight | Base |
