Product Details
| Part Number: | ESK4 |
| Brand: | Hasport |
Bring K-Series power to your 7th-generation Civic with the Hasport ESK4 K-Series Engine Swap Mount Kit. Designed specifically for 2001–2005 Honda Civic non-Si models, the ESK4 provides the mounting solution needed to install a Honda/Acura K-Series engine while using a 2003–2007 Accord or 2004–2008 Acura TSX manual transmission.
The ESK4 works with Civic chassis that were originally equipped with either an automatic or manual transmission, making it a versatile foundation for K20 and K24 conversions. Installation requires the use of an Acura RSX or 2002–2005 Civic Si front subframe, replacing the original non-Si Civic subframe to provide the proper drivetrain mounting geometry.
Hasport engineers its swap mounts using sophisticated CAD/CAM design, combining billet mounts, steel brackets, and performance polyurethane bushings. Multiple bushing stiffness options allow the ESK4 to be configured for anything from a street-driven K-swap to a dedicated drag or competition build.
Features
- Genuine Hasport Performance K-Series Engine Swap Mount Kit
- Part Number: ESK4
- Designed for 2001–2005 Honda Civic non-Si
- Allows installation of a Honda/Acura K-Series engine
- Designed specifically for 2003–2007 Honda Accord manual transmissions
- Compatible with 2004–2008 Acura TSX manual transmissions
- Works with both factory automatic and manual Civic chassis
- Requires an Acura RSX or 2002–2005 Civic Si front subframe
- Performance polyurethane bushings help control drivetrain movement
- Provides a firmer and more responsive drivetrain connection
- Helps reduce excessive engine and transmission movement during acceleration and shifting
- Billet mount construction with application-specific steel brackets
- Engineered using sophisticated CAD/CAM technology
- Multiple polyurethane bushing stiffness options available
- Excellent foundation for K20 and K24 engine swaps
- Suitable for naturally aspirated, turbocharged, and supercharged builds
- Ideal for street, autocross, drag, and road-racing applications
- Hasport lists a lifetime warranty for the mount system
Designed for 2001–2005 Honda Civic non-Si models, including applicable:
- Civic DX
- Civic LX
- Civic EX
- Civic HX
- Civic GX
- Civic Value Package / Special Edition models
Does not fit the 2001–2005 Civic Hybrid or 2002–2005 Civic Si as a standard ESK4 application.
The ESK4 configuration is specifically designed for:
- 2003–2007 Honda Accord manual transmission
- 2004–2008 Acura TSX manual transmission
Hasport offers other ESK configurations for different K-Series transmissions:
- ESK3 – RSX / 2002–2011 Civic Si manual transmissions
- ESK4 – 2003–2007 Accord / 2004–2008 TSX manual transmissions
- ESK5 – 2008–2013 Accord / 2009–2014 TSX / 2012–2015 Civic Si manual transmissions
- ESKAWD – K-Series CR-V / Element FWD or AWD manual transmissions
The ESK4 does not use the original non-Si Civic front subframe. Installation requires:
- Acura RSX front subframe, or
- 2002–2005 Honda Civic Si (EP3) front subframe
Bushing Options
- U62A – Street: Best suited for daily-driven and street-oriented builds
- U70A – Race: Firmer option for aggressive street and performance use
- U88A – Extreme Race: Very stiff configuration for serious competition vehicles
- U94A – Most Extreme Race: Maximum drivetrain control for dedicated race builds
Higher-durometer bushings reduce drivetrain movement but will also increase noise, vibration, and harshness (NVH) inside the vehicle.

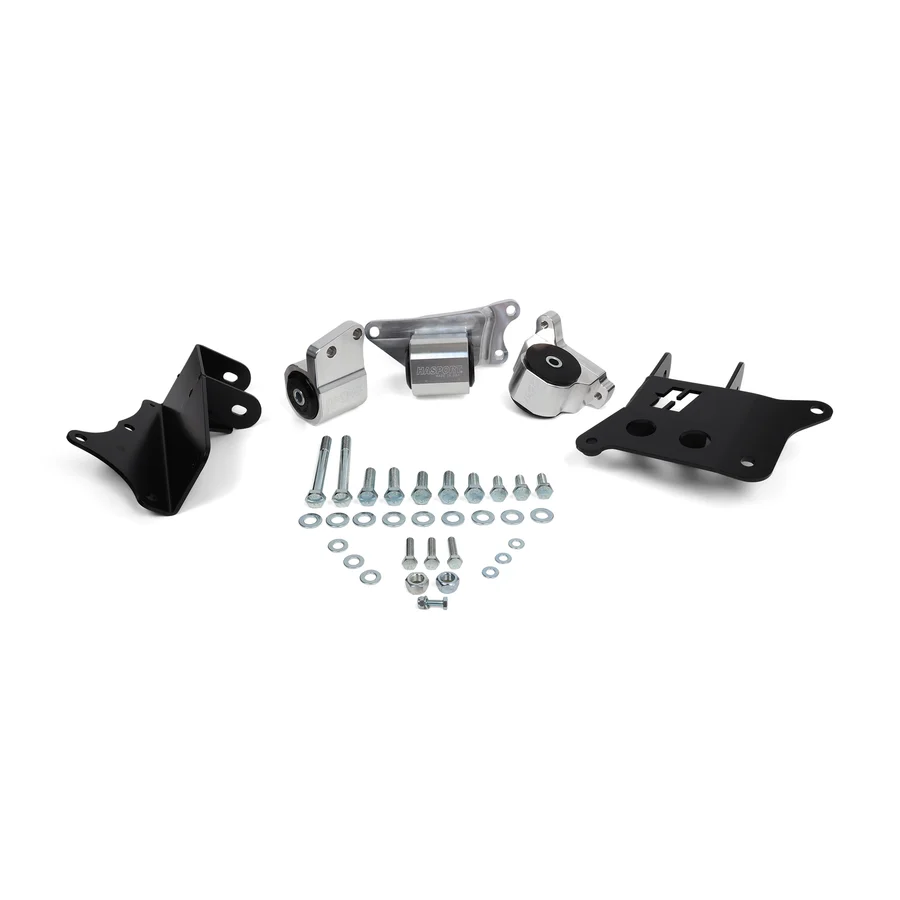

Kit Includes
- 3 × Billet Mounts
- 2 × Steel Brackets
- 1 × Hardware Pack
- Required installation fasteners and hardware
Important Fitment Note:
- ESK4 is specifically for K-Series swaps into the 2001–2005 Civic non-Si using a 2003–2007 Accord or 2004–2008 TSX manual transmission. An RSX or 2002–2005 Civic Si subframe is required, and the kit is not intended for the Civic Hybrid. Additional swap components such as axles, wiring/ECU solution, shifter cables, exhaust, cooling components, and other application-specific parts will be required to complete the conversion.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 2001 | Honda | Civic | DX |
| 2001 | Honda | Civic | EX |
| 2001 | Honda | Civic | GX |
| 2001 | Honda | Civic | HX |
| 2001 | Honda | Civic | LX |
| 2002 | Honda | Civic | DX |
| 2002 | Honda | Civic | EX |
| 2002 | Honda | Civic | GX |
| 2002 | Honda | Civic | HX |
| 2002 | Honda | Civic | LX |
| 2003 | Honda | Civic | DX |
| 2003 | Honda | Civic | EX |
| 2003 | Honda | Civic | GX |
| 2003 | Honda | Civic | HX |
| 2003 | Honda | Civic | LX |
| 2004 | Honda | Civic | DX |
| 2004 | Honda | Civic | EX |
| 2004 | Honda | Civic | GX |
| 2004 | Honda | Civic | HX |
| 2004 | Honda | Civic | LX |
| 2004 | Honda | Civic | Value Package |
| 2005 | Honda | Civic | DX |
| 2005 | Honda | Civic | EX |
| 2005 | Honda | Civic | EX Special Edition |
| 2005 | Honda | Civic | GX |
| 2005 | Honda | Civic | HX |
| 2005 | Honda | Civic | LX |
| 2005 | Honda | Civic | LX Special Edition |
| 2005 | Honda | Civic | Value Package |
Engine Fitment
Honda 2.4L/2354CC - 4 Cylinder (K24A8)
Honda 2.4L/2354CC - 4 Cylinder (K24A1)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A2)
Honda 2.4L/2354CC - 4 Cylinder (K24A4)
