Product Details
Upgrade your second-generation Acura Integra with the Hasport DA1K2 K-Series Billet Engine Swap Mount Kit, engineered for installing a Honda K20 or K24 engine into the 1990–1991 Acura Integra or 1992–1993 Acura Integra GS-R using a compatible Acura RSX or 2002–2011 Honda Civic Si manual transmission.
Designed specifically for the DA chassis, the Hasport DA1K2 provides the mounting foundation needed to replace the factory B-Series drivetrain with a modern Honda K-Series engine and hydraulic-clutch manual transmission.
The K-Series platform offers significant performance potential through its advanced cylinder head design, extensive aftermarket support, and availability of both 2.0L and 2.4L engine configurations. Whether building a naturally aspirated K20, a high-torque K24, or a turbocharged street or race car, the DA1K2 provides application-specific engine and transmission mounting components for the conversion.
Featuring Hasport's dual-height mounting system, patented flip-mount design, precision-engineered brackets, and performance polyurethane bushings, this kit is designed to maintain proper drivetrain positioning and axle alignment.
Designed for K20 and K24 Engine Swaps
The Hasport DA1K2 supports compatible Honda K-Series engines, including popular K20 and K24 configurations.
Unlike engine mount systems designed exclusively for one engine displacement, the DA1K2 incorporates Hasport's dual-height mounting design to accommodate the different block heights of K20 and K24 engines.
This allows builders to select the engine configuration best suited to their performance goals while maintaining the intended drivetrain positioning.
Hasport Dual-Height and Patented Flip-Mount System
Honda K24 engines feature taller engine blocks than K20 engines, which can affect hood clearance, ground clearance, and the positioning of surrounding components.
Hasport's dual-height mounting system and patented flip-mount design address these differences by maintaining a consistent cylinder head location when switching between compatible K20 and K24 configurations.
Benefits include:
Optimized K20 and K24 engine placement.
Consistent cylinder head positioning.
Improved consideration for hood and ground clearance.
Proper drivetrain positioning and axle alignment.
More consistent intake and exhaust component fitment.
Greater flexibility when planning custom turbocharger applications.
Engineered for RSX and Civic Si Manual Transmissions
The DA1K2 is designed for compatible manual transmissions originally found in the Acura RSX and 2002–2011 Honda Civic Si.
These hydraulic-clutch transmissions offer popular gearing and aftermarket support for K-Series engine swaps.
Because the original DA Integra uses a cable-operated clutch system, additional components are required to operate the hydraulic clutch transmission.
The DA1K2 provides the engine mounting solution but does not eliminate the need for a suitable clutch actuation conversion.
Precision-Engineered Billet Construction
Hasport develops its mounting systems using CAD/CAM technology to achieve accurate fitment, dependable strength, and proper engine positioning.
The DA1K2 combines precision-manufactured mounting components with durable performance polyurethane bushings, providing a mounting system suited for both street and competition applications.
Features
DA Chassis K-Series Conversion: Designed for 1990–1991 Acura Integra and 1992–1993 Integra GS-R applications.
K20 and K24 Compatibility: Supports compatible Honda 2.0L and 2.4L K-Series engine swaps.
Acura RSX Transmission Compatibility: Designed for compatible RSX manual transmissions.
Honda Civic Si Transmission Compatibility: Supports compatible 2002–2011 Civic Si manual transmissions.
Dual-Height Mounting System: Accommodates differences between K20 and K24 engine block heights.
Patented Flip-Mount Design: Maintains consistent cylinder head positioning between supported engine configurations.
Billet-Style Mounting Components: Combines precision manufacturing with performance-oriented construction.
Optimized Drivetrain Positioning: Engineered for proper engine placement and axle alignment.
Performance Polyurethane Bushings: Reduce excessive drivetrain movement compared with conventional rubber mounts.
Improved Drivetrain Stability: Helps limit engine rocking during acceleration and gear changes.
Improved Shifting Consistency: Reduced mount deflection helps maintain transmission positioning.
Multiple Bushing Hardness Options: Available for street, track, and competition applications.
CAD/CAM Engineered: Designed using advanced computer-aided manufacturing technology.
Lifetime Manufacturer Warranty: Backed by Hasport's lifetime warranty, subject to manufacturer terms.
Popular Performance Applications
1990–1993 Acura Integra K-Series Swaps
Provides the specialized mounting foundation for converting a compatible second-generation Integra to K-Series power.
K20A2 and K20Z1 Performance Builds
Supports compatible high-revving K20 configurations paired with RSX manual transmissions.
K20Z3 Civic Si Drivetrain Conversions
Designed for compatible K20Z3 engine and 2006–2011 Civic Si manual transmission combinations.
K24A2 Engine Swaps
Provides a mounting solution for builders seeking the additional displacement and torque potential of the K24A2.
K20/K24 Hybrid Engine Builds
Suitable for compatible hybrid K-Series configurations using the appropriate engine-side mounting components.
Naturally Aspirated Performance Builds
Ideal for engines equipped with performance intake manifolds, camshafts, headers, and other naturally aspirated upgrades.
Turbocharged K-Series Applications
Provides drivetrain support for custom forced-induction builds using compatible engine and transmission combinations.
Autocross and Road Racing
Performance polyurethane bushings help reduce unwanted engine movement during aggressive driving.
Drag Racing
Stiffer bushing configurations provide increased drivetrain rigidity during hard launches and high-load operation.
Additional Information
- Manufacturer: Hasport Performance
- Part Number: DA1K2
- Product Type: Billet K-Series Engine Swap Mount Kit
- Vehicle Application: 1990–1991 Acura Integra / 1992–1993 Acura Integra GS-R
- Chassis: DA
- Engine Compatibility: Compatible Honda K20 / K24
- Transmission Compatibility: Acura RSX / 2002–2011 Honda Civic Si Manual
- Mounting Design: Dual-Height System with Patented Flip Mount
- Bushing Material: Performance Polyurethane
- Available Bushing Hardness Options: U62A / U70A / U88A / U94A
- Installation Type: K-Series Engine Swap Conversion
- Fabrication Required: Yes – Cutting and Welding
- Clutch Conversion Required: Yes – Hydraulic Clutch Actuation
- Manufacturer Warranty: Lifetime, subject to manufacturer terms
Available Polyurethane Bushing Hardness Options
U62A – Street
The softest available bushing configuration, designed for street-driven vehicles where vibration isolation and everyday comfort are important considerations.
U70A – Race
Provides increased drivetrain rigidity for aggressive street driving, spirited performance applications, and occasional track use.
U88A – Extreme Race
A firmer polyurethane configuration intended for demanding motorsport applications where limiting engine movement is a priority.
U94A – Most Extreme Race
The stiffest available configuration, intended for dedicated competition vehicles where maximum drivetrain rigidity takes priority over passenger comfort.
Higher-durometer bushings generally transmit more noise, vibration, and harshness into the vehicle cabin.
DA1K2 vs. DA1K5 vs. DA2K2
Hasport DA1K2: Designed for 1990–1991 Integra and 1992–1993 Integra GS-R applications using Acura RSX or 2002–2011 Civic Si manual transmissions.
Hasport DA1K5: Designed for the same DA1 chassis applications using compatible 2008–2013 Accord, 2009–2014 TSX, or 2012–2015 Civic Si manual transmissions.
Hasport DA2K2: Designed for 1992–1993 Integra non-GS-R applications using Acura RSX or 2002–2011 Civic Si manual transmissions.
The correct mount kit must match both the chassis configuration and transmission family.
Common Reasons for Replacement or Upgrade
K-Series Engine Conversion: Provides the mounting components needed to install a compatible K20 or K24 drivetrain.
B-Series to K-Series Upgrade: Supports replacement of the original drivetrain with a modern Honda K-Series engine.
Increased Performance Potential: Opens access to extensive K-Series naturally aspirated and forced-induction upgrades.
RSX Transmission Installation: Accommodates compatible Acura RSX manual transmissions.
Civic Si Transmission Installation: Supports compatible 2002–2011 Civic Si manual transmissions.
K20/K24 Flexibility: Dual-height mounting design accommodates supported engine configurations.
Optimized Drivetrain Positioning: Helps maintain proper engine placement and axle alignment.
Reduced Engine Movement: Polyurethane bushings limit excessive drivetrain rocking.
Improved Shifting Stability: Firmer mounts help stabilize the transmission during gear changes.
Street and Motorsport Applications: Provides a durable mounting foundation for performance-oriented Integra builds.
Installation Notes
Verify Chassis Compatibility: Confirm that the vehicle is a 1990–1991 Acura Integra or 1992–1993 Integra GS-R. The 1992–1993 non-GS-R chassis requires a different mount kit.
Confirm Engine Compatibility: Identify the exact K20 or K24 engine configuration and verify its mounting provisions.
Verify Transmission Compatibility: Confirm that the transmission is from a supported Acura RSX or 2002–2011 Honda Civic Si application.
Plan for Cutting and Welding: Hasport specifies that DA1K-series installations require cutting and welding. The DA1K2 is not a completely bolt-in conversion.
Prepare the Chassis: Complete all required fabrication according to Hasport's installation instructions before final engine installation.
Inspect Engine-Side Brackets: Verify that the required K-Series mounting brackets and attachment points are present and compatible.
Plan the Hydraulic Clutch Conversion: The original cable-clutch system must be adapted to operate the hydraulic-clutch transmission. Compatible clutch conversion components are sold separately.
Select the Appropriate Engine Height: Follow Hasport's instructions for the dual-height and flip-mount configuration when installing a K20 or K24.
Support the Engine and Transmission: Use appropriate lifting equipment and drivetrain supports during installation.
Install the Mounting Components: Position the mounts and brackets according to Hasport's application-specific instructions.
Verify Axle Alignment: Confirm that the selected swap axles have proper engagement, operating angles, and clearance.
Inspect Hood and Ground Clearance: Check engine height, oil pan positioning, and surrounding component clearance.
Verify Intake and Exhaust Fitment: Confirm clearance for the selected intake manifold, header, exhaust routing, and any forced-induction components.
Complete Supporting Swap Systems: Additional wiring, ECU, fuel system, cooling system, shifter, and drivetrain components will be required.
Torque Mounting Hardware: Follow Hasport's installation instructions and applicable Honda service specifications.
Inspect After Installation: Recheck mounting hardware, fabricated mounting points, and drivetrain clearances after the initial driving period.
Professional installation is strongly recommended, particularly because chassis cutting, welding, and hydraulic clutch conversion work are required.
What's Included

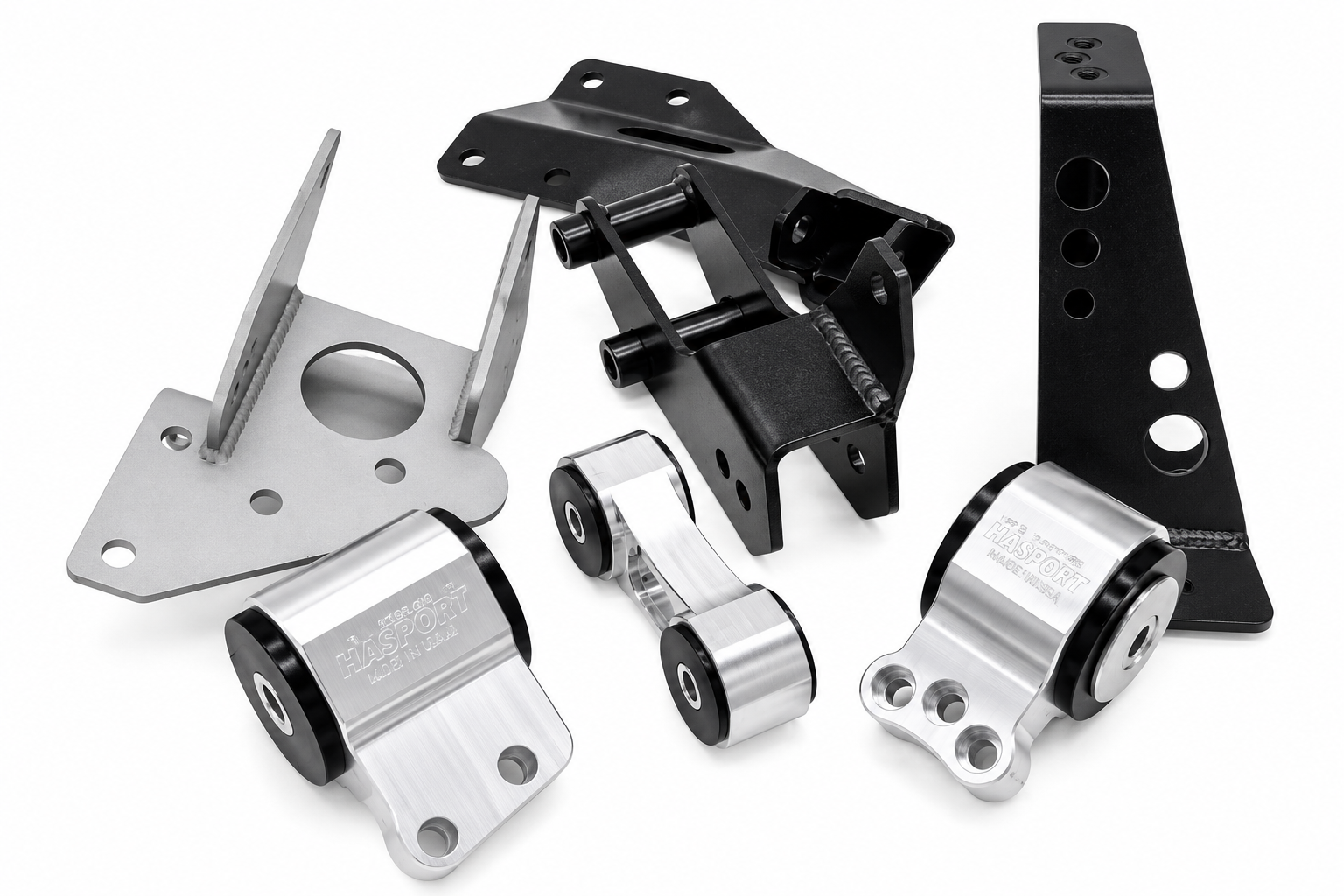

Hasport DA1K2 K-Series engine swap mount kit
Application-specific engine and transmission mounting components
Performance polyurethane bushings in the selected hardness configuration
Associated brackets and hardware supplied by Hasport
Important: This product is an engine swap mounting kit, not a complete K-Series conversion package.
The engine, transmission, axles, ECU, wiring harness, hydraulic clutch conversion components, shifter assembly, shift cables, and other supporting swap parts are not included unless otherwise specified.
Upgrade your second-generation Acura Integra with the Hasport DA1K2 K-Series Billet Engine Swap Mount Kit, specifically engineered for 1990–1991 Acura Integra and 1992–1993 Integra GS-R applications using compatible Honda K20 or K24 engines with Acura RSX or 2002–2011 Civic Si manual transmissions.
Featuring Hasport's dual-height mounting system, patented flip-mount design, precision-engineered components, and performance polyurethane bushings, the DA1K2 provides the strength, positioning, and drivetrain stability needed for a serious K-Series conversion.
Whether you're building a naturally aspirated K20 street car, a high-torque K24 Integra, or a dedicated turbocharged race vehicle, Hasport provides a purpose-built mounting foundation for your project.
| Part Number: | DA1K2 |
| Brand: | Hasport |
| Color: | Silver |
| Position: | Mount Kit |
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1990 | Acura | Integra | GS |
| 1990 | Acura | Integra | LS |
| 1990 | Acura | Integra | RS |
| 1991 | Acura | Integra | GS |
| 1991 | Acura | Integra | LS |
| 1991 | Acura | Integra | RS |
| 1992 | Acura | Integra | GS-R |
| 1993 | Acura | Integra | GS-R |
Engine Fitment
| Engine |
|---|
| Honda 2.0L/1998CC - 4 Cylinder (K20Z1) |
| Honda 2.0L/1998CC - 4 Cylinder (K20Z3) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A8) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A2) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A2) |
| Honda 2.0L/1998CC - 4 Cylinder (K20A2) |
| Honda 2.0L/1998CC - 4 Cylinder (K20A3) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A1) |
| Honda 2.4L/2354CC - 4 Cylinder (K24A4) |
