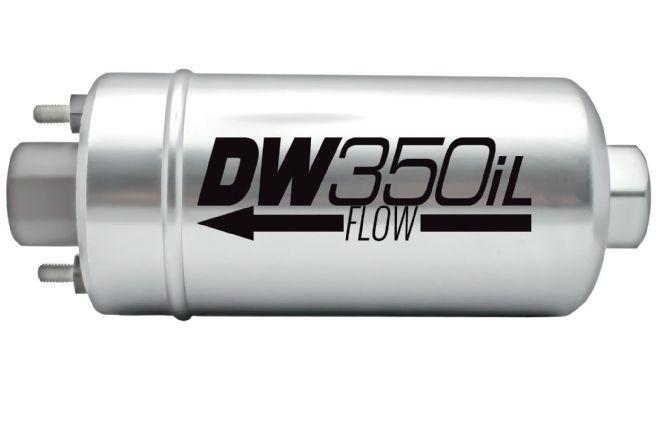

DeatschWerks 350iL In-Line Fuel Pump
Part Number: 9-350

DeatschWerks 350iL In-Line Fuel Pump-A1
DeatschWerks 350iL In-Line Fuel Pump-A2
DeatschWerks 350iL In-Line Fuel Pump-A3
DeatschWerks 350iL In-Line Fuel Pump-A4
Images may be for reference only

DeatschWerks 350iL In-Line Fuel Pump
Part Number: 9-350

Be the first to review!

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 438 reward points. Learn More

3 In Stock

Product Details

Part Number: 9-350
UPC: 00887753530165
Manufacturer: DeatschWerks

DeatschWerks is excited to officially release the newest member of their world renowned fuel pump line, the DW350iL. This High Flow, 350 liter per hour fuel pump is DeatschWerks' first externally mounted in-line fuel pump, expanding its line to continue as one of the most comprehensive in the industry.

The DW350iL will be the highest flowing pump DeatschWerks has offered to date. Flowing 350 LPH @ 40psi and over 300 LPH at 70psi, it can support over 700hp. Utilizing roller-vane technology allows a flatter flow curve, which means more flow at higher pressures - a must for turbo and supercharged applications.

Along with higher flow rates, the DW350iL comes with -8 AN ORB female fittings on the inlet and outlet to easily incorporate larger fuel lines, an anodized aluminum body, two t-bolt mounting brackets with rubber isolators, and rubber boots to protect the power terminals.

The DW350iL has been engineered to fit Bosch 044 surge tanks, which provide reserve fueling capacity and dual pump capability - important in many high power motorsport applications.

  • 350LPH @ 40psi
  • -8AN ORB Fittings In/Out
  • Race Proven Success in Formula D & GTA
  • Supports up to 750hp (1250hp Dual Setup)
  • Roller-Vane Technology
  • 3-year no-fault warranty

Mechanical Specs:
  • Weight: 34oz (975grams)
  • External Materials: Hard Anodized Aluminum
  • Inlet Fitting: -8 AN ORB
  • Outlet Fitting: -8 AN ORB
  • PRV Activation: NA
  • Impeller Design: Roller-Vane

Electrical Specs:
  • Connector Terminal: Binding Post
  • Min Voltage Input: 8 Volts
  • Max Voltage Input: 18 volts
  • Current Draw (40psi): 12.0 amps (13.5v)
  • Current Draw (80 psi): 15.6 amps (13.5v)

  • 2"x2" sock
  • Electrical connector
  • 4" of fuel line
  • Miscellaneous hardware
