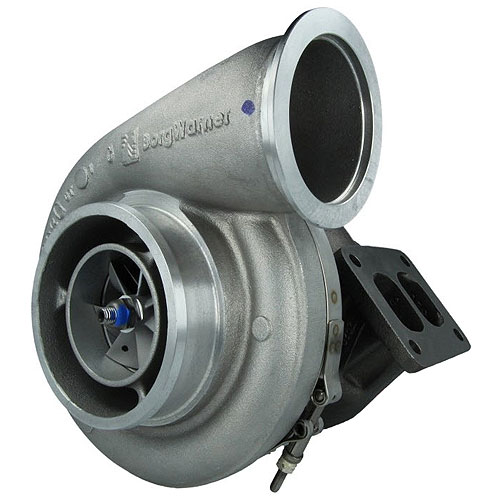

Borgwarner S474SX3 74.56mm Turbocharger w/ VTF 1.10A/R Housing
Part Number: 177101

Borgwarner S474SX3 74.56mm Turbocharger w/ VTF 1.10A/R Housing-A1
Borgwarner S474SX3 74.56mm Turbocharger w/ VTF 1.10A/R Housing-A2
Borgwarner S474SX3 74.56mm Turbocharger w/ VTF 1.10A/R Housing-A3
Images may be for reference only

Borgwarner S474SX3 74.56mm Turbocharger w/ VTF 1.10A/R Housing
Part Number: 177101

Be the first to review!
Was: $1469.98
$1,166.51 & Free Shipping
Save: $303.47 (21%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 2333 reward points. Learn More


10+ In Stock

Product Details

Part Number: 177101
Manufacturer: BorgWarner
Turbo Flange: Divided T4
Exhaust Housing: 1.10 A/R

Borgwarner turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car. Engineered specifically for drag racing, pulling and road racing, Borgwarner turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space? BorgWarner's turbochargers are the perfect go-to product for many applications. With a twin hydrodynamic journal bearing design, Borgwarner turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

S400SX4 Turbocharger Features:

  • 500-1050 HP Turbo
  • Straight Compressor Discharge
  • Twin Hydrodynamic Journal Bearings
  • Extended Tip Technology Compressor Wheel
  • Twin Scroll Turbine Housings
  • Adjustable Compressor and Turbine Housing Orientation
  • Compressor Cover Recirculation Grooves
  • Optimized Compressor Inlet Geometry
  • Forged Milled Wheel Technology

S400SX3 Turbocharger Features:

  • 67.66mm/2.66'' Compressor Inducer Dia.
  • 3.60'' Compressor Wheel O.D.
  • 74.29mm/2.92'' Turbine Exducer Dia.
  • 83.47mm/3.29'' Turbine Wheel O.D.
  • 1.10 Turbine A/R
  • T4 Twin Flow Turbine Inlet
  • Straight Compressor Outlet
