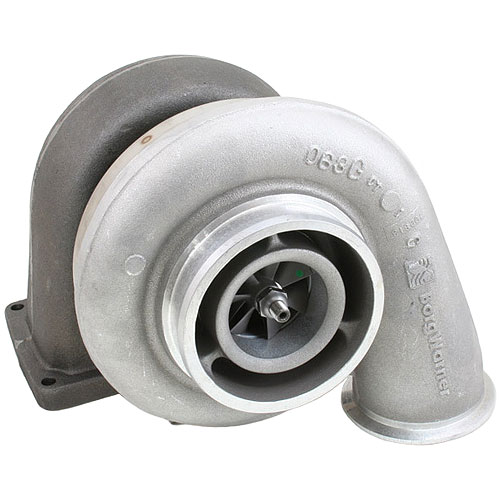

BorgWarner S463SX Turbocharger w/ VOF 1.10A/R Housing
Part Number: 169012

BorgWarner S463SX Turbocharger w/ VOF 1.10A/R Housing-A1
BorgWarner S463SX Turbocharger w/ VOF 1.10A/R Housing-A2
Images may be for reference only

BorgWarner S463SX Turbocharger w/ VOF 1.10A/R Housing
Part Number: 169012

Be the first to review!
Was: $1285.79
$950.82 & Free Shipping
Save: $334.97 (26%)

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.


Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 1902 reward points. Learn More


9 In Stock

Product Details

Part Number: 169012
Brand: BorgWarner
Turbo Flange: T6
Exhaust Housing: 1.10 A/R

S463 S400SX4 Turbocharger

  • Detroit Series 60
  • 63.5mm Compressor Inducer Dia.
  • 74.3mm Turbine Exducer Dia.
  • 1.10 Turbine A/R
  • T6 Twin Flow Turbine Inlet
This BorgWarner Airwerks Series Turbocharger is a direct in replacement for the following Detroit Diesel Part Numbers 23515894, 23508405, 23508406, 23518695, 23528029, 23521167, 169012, 23508405, 23508406, 23515894, 23518695, 23521167, 23528029, 2585835C91, 466998-0001, 466998-0002, 466998-0009, 466998-5001, 466998-5002, 466998-5009, 466998-9001, 466998-9002, 466998-9009, 4669980001, 4669980002, 4669980009, 4669985001, 4669985002, 4669985009, 4669989001, 4669989002, 4669989009, 471087-0001, 471087-5001, 471087-9001, 4710870001, 4710875001, 4710879001, 5331 970 7113, 53319707113, 714785-0001, 714785-5001, 714785-9001, 7147850001, 7147855001, 7147859001

Twin Hydrodynamic Journal Bearings
Adjustable compressor and turbine housing orientation
Compressor cover recirculation grooves

Compressor Specs:
  • 63.5mm compressor wheel inducer 66lbs/min
  • 5'' Hose inlet
  • 4.21'' V-Band Outlet Compressor Cover
Turbine Specs:
  • 74.3mm turbine wheel exducer
  • 1.10 A/R Twin Scroll T6 Turbine Housing
  • 5.75'' Marmon Outlet
