Product Description
95lbs / min approx 950 horsepower

S369 AKA 69/73 AKA 69-73 SX-E

BorgWarner Turbo Systems Aftermarket is pleased to announce the release of the AirWerks® SX-E super core assemblies for performance applications. These new part numbers are purpose engineered for both diesel and gasoline high performance applications.

S300 SX-E super cores contain the following exciting new features:
360 degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options (S300SX-E only)
Forged milled (billet) compressor wheels with extended tip technology
Optimized compressor stage aerodynamics
Interchangeable with existing turbine housings for upgradability
The BorgWarner super core assembly consists of the compressor cover attached to the cartridge, all cartridge to turbine housing mounting hardware, clamp plates, cap screws and mounting gaskets. Speed sensor and turbine outlet V-band are not included with turbo assemblies. Choose a turbine housing from our extensive list of factory housings as well as our custom cast performance housings.

Compressor Specs:

- Borg Warner 4" Inlet 2.5" outlet compressor housing with port shroud map width enhancement, pre tapped for speed sensor and pressure port. (parts not included and will need to drill through)
- 69.00mm inducer 91.44mm exducer FMW Forged Milled Wheel (Billet)

Turbine Specs:

- 73mm exducer, 80mm inducer turbine wheel

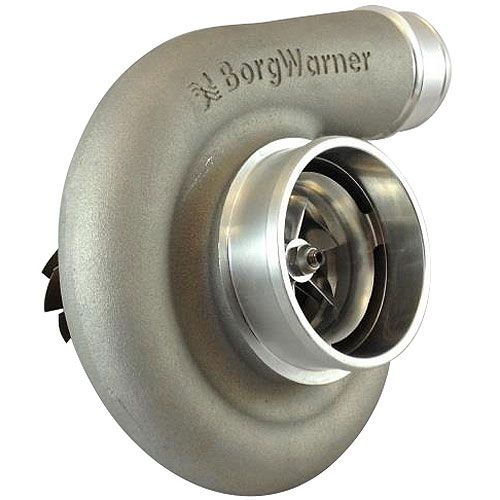

S300SX-E SuperCore Assembly 9180

• 69.00mm / 2.72'' Compressor Inducer Dia.
• 91.44mm / 3.60'' Compressor Wheel O.D.
• 73.37mm / 2.89'' Turbine Exducer Dia.
• 79.75mm / 3.14'' Turbine Wheel O.D.
• Straight Compressor Outlet

S300SX-E Super Core Turbo Assembly Features:

• 320 - 1000 HP Turbo
• DOES NOT INCLUDE TURBINE SIDE HOUSING
• Straight Compressor Discharge
• 360-degree Thrust Bearing
• Integrated Speed Sensor Port
• Forged Milled Compressor Wheel
• Flexible Compressor Cover Outlet Options
• Pre-Machined Boost Port
• Optimized Compressor Cover Aerodynamics
