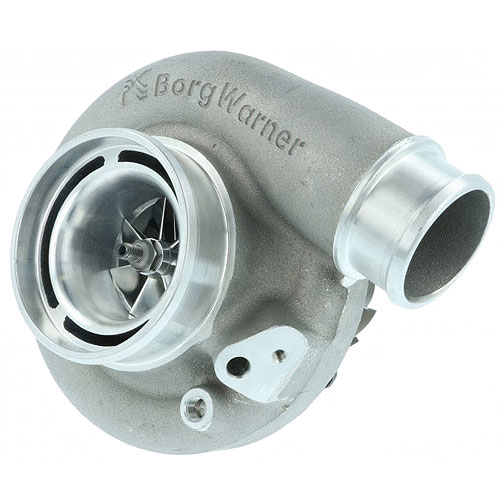

S200SX-E SuperCore Assembly

• 57.15mm / 2.25'' Compressor Inducer Dia.
• 3.00'' Compressor Wheel O.D.
• 61mm / 2.42'' Turbine Exducer Dia.
• 70mm / 2.74'' Turbine Wheel O.D.
• Straight Compressor Outlet

S200SX-E Super Core Turbo Assembly Features:

• 300 - 650 HP Turbo
• DOES NOT INCLUDE TURBINE SIDE HOUSING
• Straight Compressor Discharge
• 360-degree Thrust Bearing
• Integrated Speed Sensor Port
• Forged Milled Compressor Wheel
• Flexible Compressor Cover Outlet Options
• Pre-Machined Boost Port
• Optimized Compressor Cover Aerodynamics

Designed for competitive motorsports!
300-650 HP Turbo

Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car. Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space? BorgWarner's AirWerks turbochargers are the perfect go-to product for many applications. With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.
