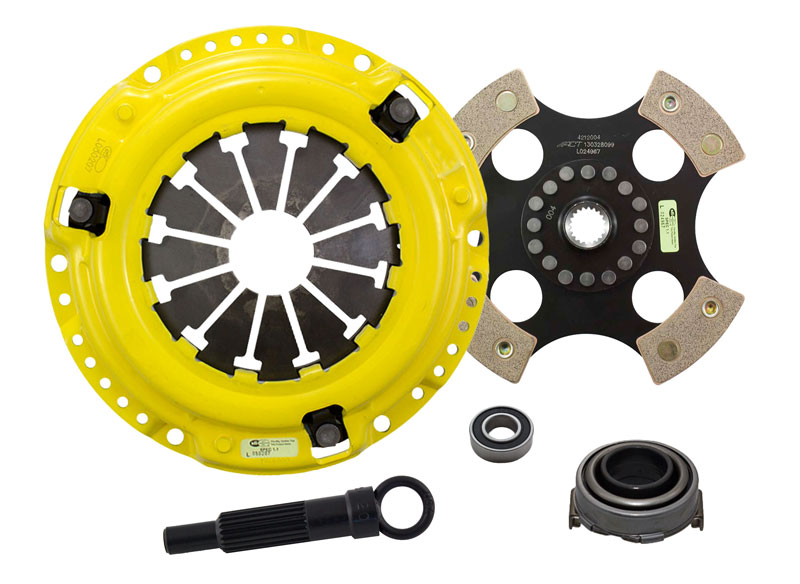

ACT 92-05 Civic SOHC MAXX 4-Puck Unsprung Clutch Kit-A1

ACT 92-05 Civic SOHC MAXX 4-Puck Unsprung Clutch Kit

Part Number: HC5-XXR4

Be the first to review this product
Price: $533.00
Save: $117.00
$416.00 & Free Shipping

Reward Points

It pays to shop with K Series Parts and our reward points program! For every $1.00 you spend you earn reward points.

They are easy to earn, just log in to your account when you check out. If you don't have one it is free and easy to setup.

They are easy to use during check out. Click on the "Have Reward Points?" on the shipping and payment selection page.

Reward Point Program Details

You earn 2 points for every $1.00 that you spend.

100 points equal a $1.00 discount.

Maximum discount per order is 5% of the order total.

There is no minimum order total to redeem points.

Points do not apply to shipping or sales tax.

Points are not redeemable for cash.

The point value per dollar, points earned per purchase, and order minimum are subject to change.

Earn 832 reward points. Learn More

special order
Typically ships within 1 to 2 weeks
Once ordered this item cannot be cancelled


HC5-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Feel: Heavy to very heavy pedal effort, aggressive engagement, quickest shifts, increased gear rattle

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommend Use: Recommended for race use only

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

  • Part Number: HC5-XXR4
  • Description: MaXX/Race Rigid 4 Pad
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 156%
  • Disc Type: Race Disc
  • Spline Count: 20
  • Spline Size (in.): 7/8
  • Disc Diameter (in.): 8.3
  • Disc Diameter (mm.): 212
  • Pressure Plate Type: MaXX
  • Product Weight (lbs.): 9.8
  • Kit Contents: 4212004, AT20, H023XX, PB1002, RB820
  • Warranty (Product Warranty): One (1) Year from Retail Purchase


Brand: ACT
Part Number: HC5-XXR4
UPC: 842385015152
