Acura RSX Engine Damper Installation

Tools Required

• 1/2 Ratchet with 6" extension
• 10mm, 12mm, 17mm sockets
• 17mm wrench
• 6mm Allen Wrench

Step One

Remove the power steering line from the power steering pump. (it is not removed in any of the pictures below, but it will speed up installation)

Step Two

Remove the gold bolt on the right engine mount (circled in the picture).

Step Three

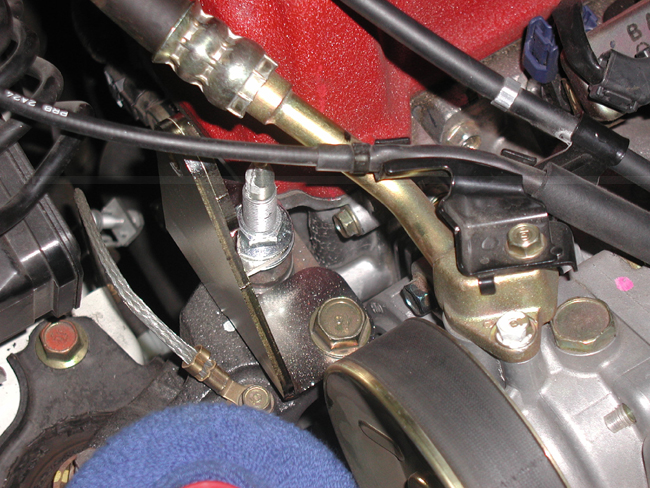

Install the washer and then the bracket on top of the right engine mount. Tighten down gold bolt you just removed and install the silver nut on top of the bracket. Tighten everything down.

Step Four

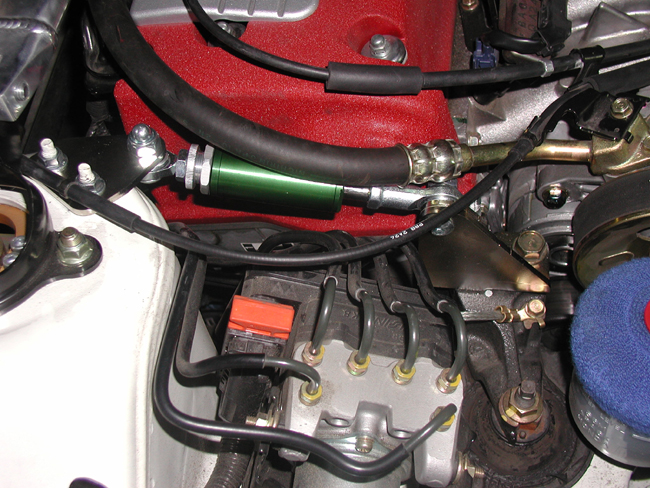

Remove the nuts that hold down the front strut bar. Install the back bracket onto the dampener using the hardware supplied. Mount the bracket onto the bolts and make sure that the front of the dampener lines up with the holes in the front bracket. Install the bolt and the screw into the front bracket and tighten them down. Tighten down the front strut bar nuts.

Step Five

Make sure everything is tighten down and go drive it to test it out!
