Acura RSX ECU Removal
Tools Required
- Ratchet
- 10mm socket
- Phillips screwdriver
Step One

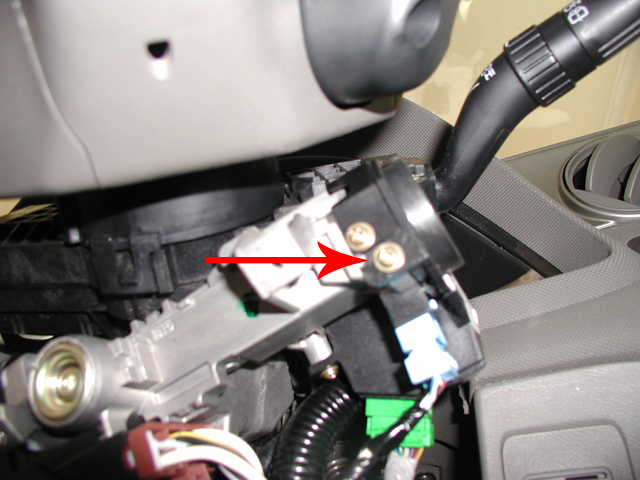

Remove the screw (to the right of the picture) on the immobilizer.
Step Two

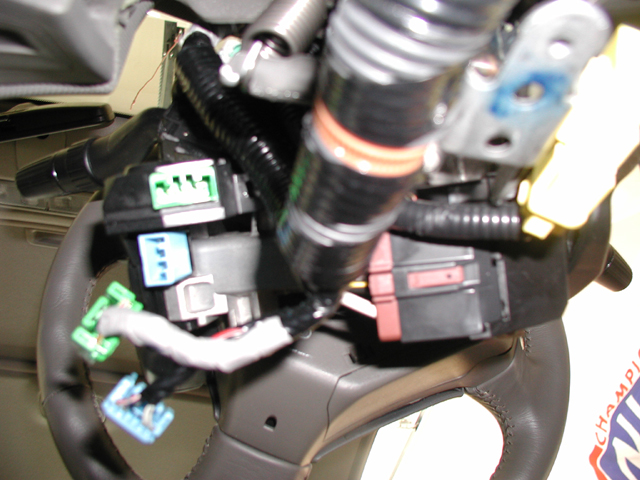

Remove the screw on the back of the immobilizer (hard to see in this picture). The immobilizer should pull right off at this point.
Step Three
Remove the panel underneath the glove box. There are three clips that you have to press in using a small phillips screwdriver. Take a 10mm socket and remove the three bolts holding the ECU on. There are two on each side and on on the back next to the firewall. Unplug all the connections on the ECU.
