Product Details
| Part Number: | K544M88 |
| Brand: | Wiseco |
| Bore: | 88mm |
| Compression Ratio: | 8.6:1 |
| CARB Approved: | No |

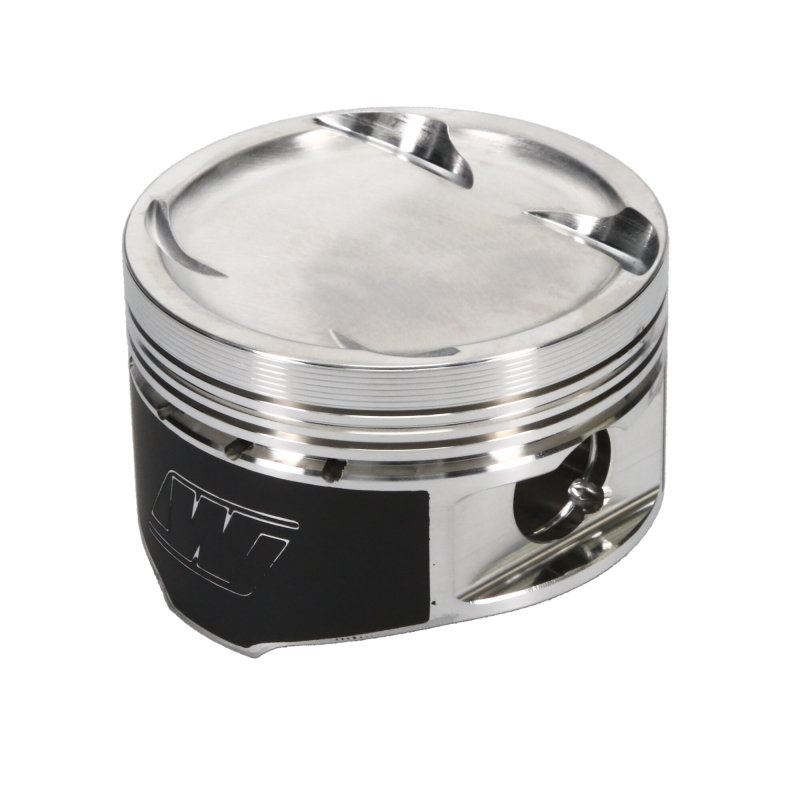

Upgrade your Honda Prelude engine with the Wiseco K544M88 Professional Series forged pistons, engineered for serious racers and high-performance builders. Crafted from 2618 aluminum in the USA, these pistons offer enhanced tensile strength and durability for heavy to severe duty applications. The precision-machined design includes custom ring grooves, an anti-detonation groove, and additional seal features to optimize combustion efficiency and reduce emissions. Fully machined crowns contribute to consistent performance, while the ArmorGlide skirt coating minimizes seizure risks, friction, and noise during operation. These pistons are built to withstand demanding race conditions, providing reliability and performance under extreme load scenarios. The set includes premium rings and features forced pin oiling for improved lubrication and longevity. Designed specifically for Honda H22 engines, these pistons are compatible with a range of model years from 1995 to 2001, making them an excellent choice for enthusiasts seeking to maximize engine output and durability. Whether you're rebuilding or boosting your engine, Wiseco's Professional Series pistons deliver proven performance and quality that meet the demands of serious motorsport applications.
Features:
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
- ArmorGlide skirt coating for seizure resistance, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Fully machined crown features for consistent performance
- Forced pin oiling for enhanced lubrication and durability
- 93-01 Prelude H22
- 00-09 S2000 with 99mm K4 Crank
- Product Type: Engine Piston Set
- Product Series: Professional
- Bore Diameter: 88.00 MM
- Compression Height: 31.00 MM
- Piston Volume: -14.00 CC
- Piston Material: 2618
- Skirt Coating: Yes
- Forging Type: Full Round
- Piston Quantity: 4
- Ring Set Included: Yes
- Top Compression Ring Thickness: 1.0 MM
- Second Compression Ring Thickness: 1.2 MM
- Oil Ring Thickness: 2.8 MM
- Wrist Pin Included: Yes
- Wrist Pin Material: 5115
- Wrist Pin Outer Diameter: 0.866 IN
- Product Market: Sport Compact
Not legal for sale or use in California on any pollution controlled motor vehicles. See http://www.semasan.com/emissions for state by state emissions requirements.
There is a 5% cancellation fee if you order this product and want to ship it to the state of California.
WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. www.P65Warnings.ca.gov.
Vehicle Fitment
| Year | Make | Model | Trim |
|---|---|---|---|
| 1993 | Honda | Prelude | Si |
| 1993 | Honda | Prelude | VTEC |
| 1994 | Honda | Prelude | Si |
| 1994 | Honda | Prelude | VTEC |
| 1995 | Honda | Prelude | SE |
| 1995 | Honda | Prelude | Si |
| 1995 | Honda | Prelude | VTEC |
| 1996 | Honda | Prelude | Si |
| 1996 | Honda | Prelude | VTEC |
| 1997 | Honda | Prelude | Base |
| 1997 | Honda | Prelude | Type SH |
| 1998 | Honda | Prelude | Base |
| 1998 | Honda | Prelude | Type SH |
| 1999 | Honda | Prelude | Base |
| 1999 | Honda | Prelude | Type SH |
| 2000 | Honda | Prelude | Base |
| 2000 | Honda | Prelude | Type SH |
| 2000 | Honda | S2000 | Base |
| 2001 | Honda | Prelude | Base |
| 2001 | Honda | Prelude | Type SH |
| 2001 | Honda | S2000 | Base |
| 2002 | Honda | S2000 | Base |
| 2003 | Honda | S2000 | Base |
| 2004 | Honda | S2000 | Base |
| 2005 | Honda | S2000 | Base |
| 2006 | Honda | S2000 | Base |
| 2007 | Honda | S2000 | Base |
| 2008 | Honda | S2000 | Base |
| 2008 | Honda | S2000 | CR |
| 2009 | Honda | S2000 | Base |
| 2009 | Honda | S2000 | CR |
Engine Fitment
